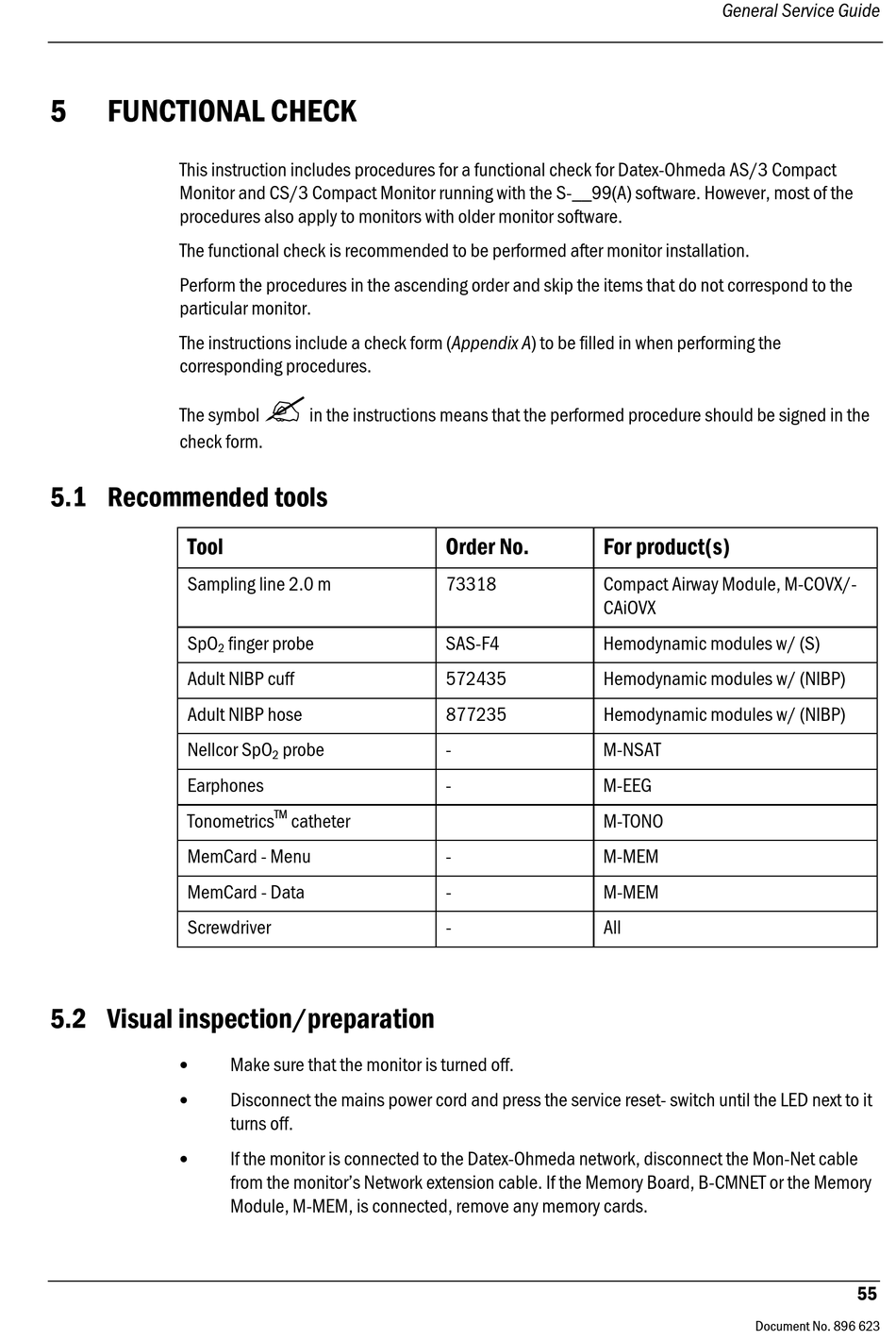

FUNCTIONAL CHECK

This instruction includes procedures for a functional check for Datex-Ohmeda AS/3 Compact
Monitor and CS/3 Compact Monitor running with the S-__99(A) software. However, most of the
procedures also apply to monitors with older monitor software.
The functional check is recommended to be performed after monitor installation.
Perform the procedures in the ascending order and skip the items that do not correspond to the
particular monitor.
The instructions include a check form (Appendix A) to be filled in when performing the
corresponding procedures.
The symbol
check form.

5.1 Recommended tools

Tool
Sampling line 2.0 m
SpO
2
Adult NIBP cuff
Adult NIBP hose
Nellcor SpO
Earphones
Tonometrics
MemCard - Menu
MemCard - Data
Screwdriver

5.2 Visual inspection/preparation

•
•
•
?
in the instructions means that the performed procedure should be signed in the
finger probe
probe
2
TM
catheter
Make sure that the monitor is turned off.
Disconnect the mains power cord and press the service reset- switch until the LED next to it
turns off.
If the monitor is connected to the Datex-Ohmeda network, disconnect the Mon-Net cable
from the monitor's Network extension cable. If the Memory Board, B-CMNET or the Memory
Module, M-MEM, is connected, remove any memory cards.
Order No. For product(s)
73318 Compact Airway Module, M-COVX/-
CAiOVX
SAS-F4 Hemodynamic modules w/ (S)
572435 Hemodynamic modules w/ (NIBP)
877235 Hemodynamic modules w/ (NIBP)
- M-NSAT
- M-EEG
M-TONO
- M-MEM
- M-MEM
- All
