Manual for the Datex-Ohmeda 3800 Pulse Oximeter
Objective
This manual will describe how to set up a Pulse Oximeter to measure the O
concentration of the blood along with heart rate.
Equipment
Datex-Ohmeda 3800 Pulse Oximeter
Power Adapter (Seen in Step 1)
Pulse Oximeter Adapter
Finger LED Adapter
Procedure

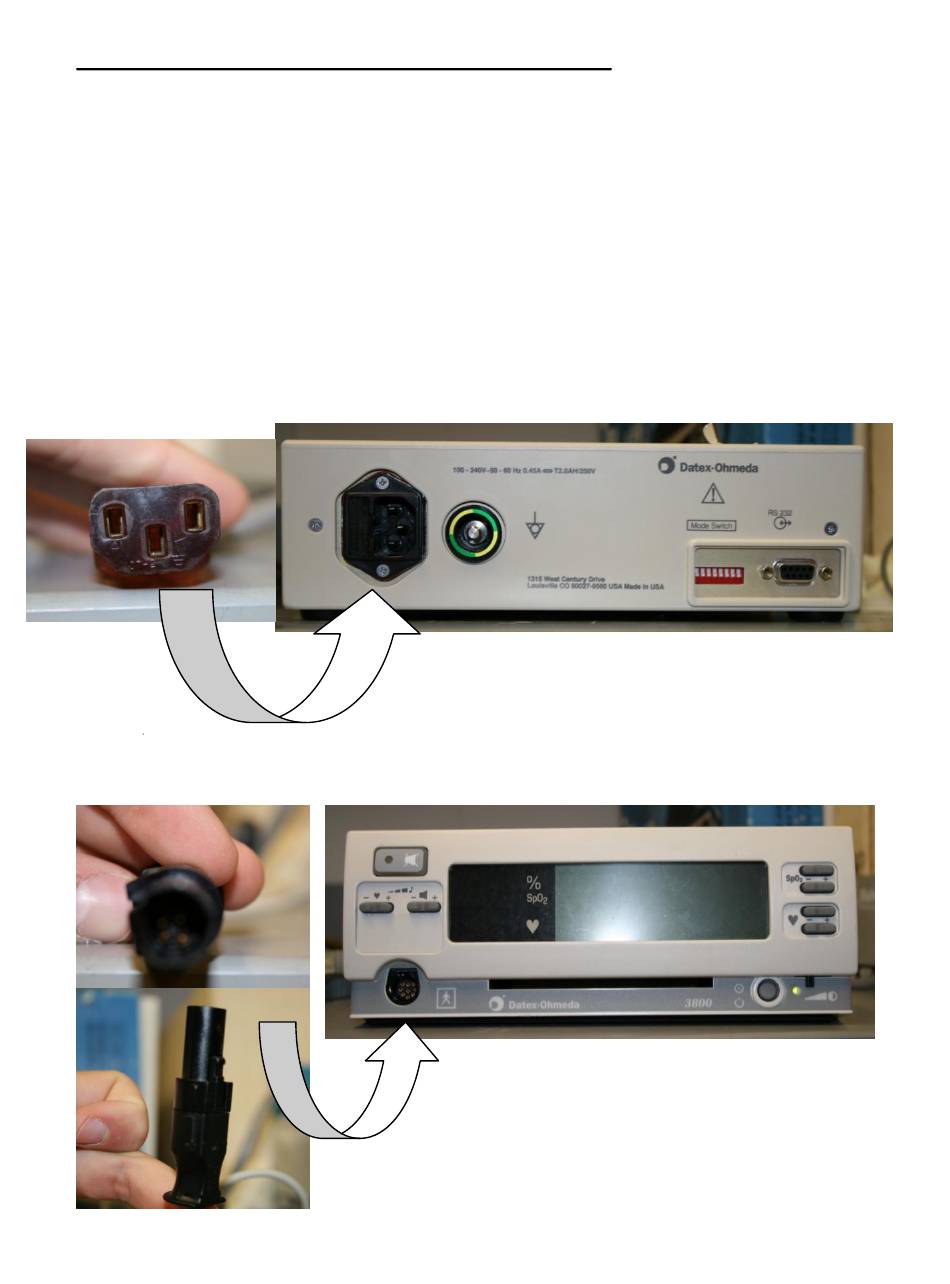

1) Connect the power supply cord to the back of the Pulse Oximeter as shown:
2)
C
2) Connect the round end of the Pulse Oximeter Adapter to the input of the Pulse
Oximeter as shown:
2
