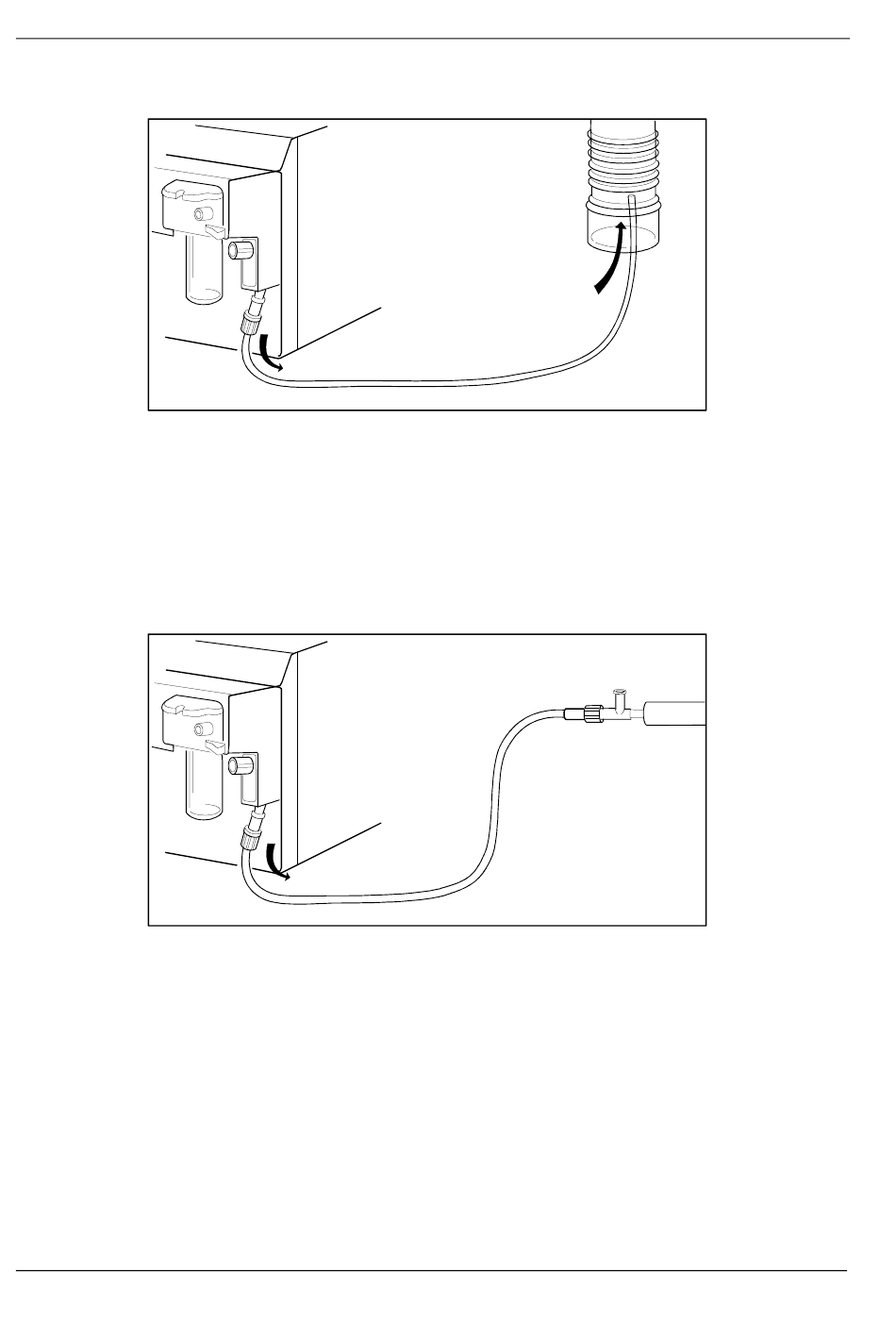

3.10.2 Scavenging Through Reservoir

Figure 11
•
•

3.10.3 Scavenging Through Direct Connection

Figure 12
•
•
40
Document No. 896 623
Scavenging through Ventilator Reservoir
Connect an exhaust line to the sample gas outlet on the module's front panel.
Attach the other end of the line to the ventilator reservoir. Make sure that the reservoir tube
diameter is at least 2-3 times larger than the exhaust line.
Connection Directly to a Scavenging System
Connect a T-fitting between the monitor and the exhaust line.
Attach the other end of the line to the scavenging tube.
SAMPLE GAS OUT
SAMPLE GAS OUT
