Datex-Ohmeda S/5 B-ARK Technical Reference Manual Slot

Keyboard for the deiorecorder for anesthesia, keyboard interface board, barcode reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Datex-Ohmeda

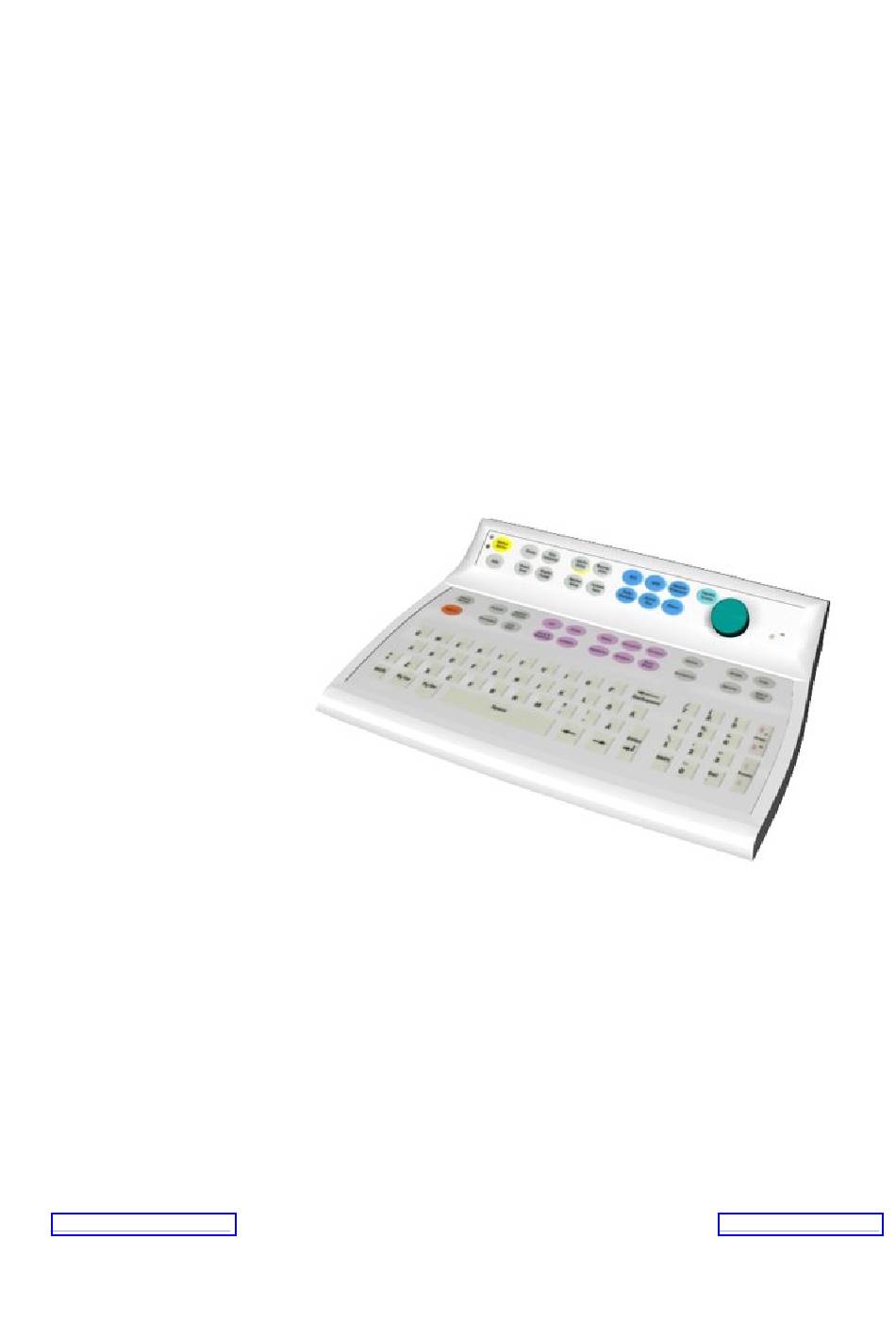

Keyboard for the deioRecorder for Anesthesia, K-ARKB (rev. 00)
TM
S/5
Keyboard Interface Board, B-ARK (rev. 00)
ARK Barcode Reader, N-SCAN (rev. 00)
Technical Reference Manual Slot
All specifications are subject to change without notice.
Document No. 8001019-3
August 2001
Datex-Ohmeda Inc.
Datex-Ohmeda Division,
3030Ohmeda Drive
Instrumentarium Corp.
53707-7550 MADISON, WIS
P.O. Box 900, FIN-00031
USA
DATEX-OHMEDA, FINLAND
Tel. +1-608-221 1551, Fax +1-608-222 9147
Tel. +358 10 394 11 Fax +358 9 146 3310
www.us.datex-ohmeda.com
www.datex-ohmeda.com
 Instrumentarium Corp. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S/5 B-ARK and is the answer not in the manual?

Questions and answers

Related Manuals for Datex-Ohmeda S/5 B-ARK

Summary of Contents for Datex-Ohmeda S/5 B-ARK

  • Page 1 Keyboard Interface Board, B-ARK (rev. 00) ARK Barcode Reader, N-SCAN (rev. 00) Technical Reference Manual Slot All specifications are subject to change without notice. Document No. 8001019-3 August 2001 Datex-Ohmeda Inc. Datex-Ohmeda Division, 3030Ohmeda Drive Instrumentarium Corp. 53707-7550 MADISON, WIS P.O. Box 900, FIN-00031 DATEX-OHMEDA, FINLAND Tel.

  • Page 3: Table Of Contents

    Table of contents TABLE OF CONTENTS Keyboard for the deioRecorder for Anesthesia, K-ARKB, S/5 Keyboard Interface Board, B-ARK and ARK Barcode Reader, N-SCAN TABLE OF CONTENTS INTRODUCTION 1 SPECIFICATIONS 1.1 General specifications ..........................3 1.1.1 Keyboard, K-ARKB..........................3 1.1.2 ARK Barcode Reader, N-SCAN ......................3 2 FUNCTIONAL DESCRIPTION 2.1 Introduction..............................4 2.2 Keyboard for the deioRecorder for Anesthesia, K-ARKB ................4...
  • Page 4 Datex-Ohmeda S/5 monitors SERVICE CHECK FORM Document No. 8001019-3...

  • Page 5: Introduction

    INTRODUCTION This Technical Reference Manual Slot provides information for the maintenance and service of the Datex-Ohmeda keyboard for the deioRecorder for Anesthesia, K-ARKB, the S/5 Keyboard Interface Board, B-ARK and the ARK Barcode Reader, N-SCAN. The information is applicable for the current production revisions of the devices.
  • Page 6 Contents of the menus in your hospital Contact the personnel responsible for the menu configurations in the hospital Monitor, parameters, physiological trends, Datex-Ohmeda S/5 Anesthesia Monitor, User’s Guide and User’s general messages and symbols on the display Reference Manual Printer...

  • Page 7: Specifications

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader SPECIFICATIONS 1.1 General specifications 1.1.1 Keyboard, K-ARKB Dimensions (W × D × H) 328 × 232 × 61 mm/12.9 × 9.1 × 2.4 in Weight 1.3 kg/3.8 lbs. Power +5 V DC ±10 %, 70 mA max, supplied from S/5 AM or S/5 CM Character set ASCII Communication interface...

  • Page 8: Functional Description

    Datex-Ohmeda S/5 monitors FUNCTIONAL DESCRIPTION 2.1 Introduction The deioRecorder for Anesthesia is an automated anesthesia documentation system. For record keeping the deioRecorder for Anesthesia software license, the record keeping configurations from network and memory module and optionally the keyboard for the deioRecorder for Anesthesia, K- ARKB is needed.

  • Page 9: Alpha-Numeric Keyboard

    ARKB is connected. The board passes the keyboard signals to the F-CU8. 2.4 ARK Barcode Reader, N-SCAN The Datex-Ohmeda ARK Barcode Reader, N-SCAN is an optional device to make record keeping faster by using bar codes. With the Barcode Reader user have a direct access to a menu item by reading a bar code mapped to the menu item.

  • Page 10: Connectors And Signals

    Datex-Ohmeda S/5 monitors 2.5 Connectors and signals Bar Code Reader 5-pin connector on the keyboard for the deioRecorder for Anesthesia, K- ARKB Pin No Signal PC-CLOCK PC-DATA N.C. +5 V Keyboard for the deioRecorder for Anesthesia 9-pin connector on the keyboard for the...
  • Page 11 S/5 Anesthesia Record Keeping Keyboard and Barcode Reader Pin No Signal + 5 V RxD RS232 TxD RS232 The CPU bus connector (X1) Pin No +15 V AGND DGND -15 V BALE DGND DGND RESET_RS485 -RESET_RS485 DATA_RS485 -DATA_RS485 SA10 SA11 TXDD_RS232 SA12 SA13...

  • Page 12: Service Procedures

    Field service of the K-ARKB Keyboard is limited to replacing faulty circuit boards or mechanical parts. The circuit boards should be then returned to Datex-Ohmeda for repair. Datex-Ohmeda is always available for service advice. Please provide the unit serial number, full type designation, and a detailed fault description.

  • Page 13: Service Check

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader 3.2 Service check These instructions include complete procedures for a service check. The service check is recommended to be performed after any service repair. However, the service check procedures can also be used for determining possible failures. The procedures should be performed in ascending order.
  • Page 14 Datex-Ohmeda S/5 monitors Check external parts: the keyboard for the deioRecorder for Anesthesia, K-ARKB plastic frame is intact − the front panel stickers are intact − the ComWheel cover is intact and is attached properly − all four rubber pads are in place on the bottom cover −...

  • Page 15: Disassembly And Reassembly

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader Modify Print Press the keys on the lower part, all except the keys . Check that each key generates a sound from the loudspeaker, or at least the ‘Message count’ value increases in the service menu.

  • Page 16: Troubleshooting

    Datex-Ohmeda S/5 monitors TROUBLESHOOTING 4.1 Troubleshooting charts 4.1.1 Keyboard for the deioRecorder for Anesthesia, K-ARKB Problem Cause Treatment Keys have not effect on the display. Cable is not connected or broken. Connect right type of cable properly (see above). Wrong type of cable is connected.

  • Page 17: Barcode Reader

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader 4.1.2 Barcode Reader Problem Cause Treatment Barcode Reader does not give a beep Beep sound is OFF. Contact personnel responsible for installing and sound configuring the monitors. Bar Code Beep should be ON in Monitor Setup - Install/Service - Installation - Monitor Settings menu.

  • Page 18: Service Menu

    Datex-Ohmeda S/5 monitors SERVICE MENU Monitor Setup Press the key. Select Install/Service (password 16-4-34). Select Service (password 26-23-8). Select Keyboard. Document No. 8001019-3...

  • Page 19: Keyboard Menu

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader 5.1 Keyboard menu A service menu for testing the command board functions and for setting the K-ARKB type. NOTE: All counters are automatically zeroed on returning to the previous menu. Upper Led is for testing the upper alarm LED (red) on the command board.

  • Page 20: Keyboard Log

    Datex-Ohmeda S/5 monitors 5.1.1 Keyboard Log All the keyboard presses and the commands given by the ComWheel are recorded in the Keyboard Log. The keyboard log is saved in the permanent memory of the monitor. The length of the log is 1150 events. The log is FIFO type.

  • Page 21: Spare Parts List

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader SPARE PARTS LIST 6.1 Spare parts list 6.1.1 AnesthesiaKeyboard, K-ARK rev. 00 Item Item description Order No. K-ARK upgrade spare part 893693 65142 Alpha-numeric Keyboard PC board, K-ARK (Rev. 00-01) *884178 Controller board, K-ARK (rev. 00) 884177 Rotary wheel 879872...

  • Page 22: Keyboard For The Deiorecorder For Anesthesia, K-Arkb Rev. 00

    Datex-Ohmeda S/5 monitors 6.1.3 Keyboard for the deioRecorder for Anesthesia, K-ARKB rev. 00 Item Item description Order No. ComWheel, K-ANEB 898794 Membrane keypad, lower, K-ARKB 8000050 Alpha-numeric Keyboard board PC board, K-ARK 884178 Screw-slotted-head,fillister head,M3x6 61721 Bottom plate, K-ARKB 898392...

  • Page 23: Front Panel Stickers

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader 6.1.4 Front panel stickers Item Adaptation K-ARK (Rev. 00) K-ARK (Rev. 01) K-ARK (Rev. 02) Order No. Order No. Order No. -23- (Eng) 898368 892350 893594 -25- (Sca) 898369 892350 893594 -26- (Fin) 898370 892331 893600...

  • Page 24: S/5 Front Panel Stickers

    Datex-Ohmeda S/5 monitors 6.1.5 S/5 front panel stickers Item 2 Adaptation K-ARKB (Rev. 00) Item 1 K-ARKB (Rev. 00) (upper) Order No. (lower) Order No. 898168 898180 898169 898190 898170 898182 898171 898181 898172 898184 898171 898185 898174 898186 898175...

  • Page 25: Earlier Revisions

    S/5 Anesthesia Record Keeping Keyboard and Barcode Reader EARLIER REVISIONS Information of Anesthesia Keyboard , K-ARK rev. 00 see service manual 885 941. Information of Anesthesia Keyboard, K-ARK rev. 02 see tech. reference manual 896 624. Previous Bar Code Reader (by HP) rev. 00 see Technical Reference Manual 895 585. Document No.
  • Page 26 Datex-Ohmeda S/5 monitors Document No. 8001019-3...
  • Page 27 APPENDIX A, Service check form, K-ARKB APPENDIX A Document No.8001019-3...
  • Page 28 Datex-Ohmeda S/5 monitors Document No. 8001019-3...
  • Page 29 APPENDIX A, Service check form, K-ARKB SERVICE CHECK FORM Keyboard for the deioRecorder for Anesthesia, K-ARKB Customer Service Keyboard type Service engineer Date OK = Test OK N.A. = Test not applicable Fail = Test Failed N.A. Fail N.A. Fail 1.
  • Page 30 Datex-Ohmeda S/5 monitors Document No. 8001019-3...
