Chapter 7: Optional Printer Installation
The thermal printer is utilized by the Tunnel Master® Jr. system for both the report and as a receipt printer. These
printers can be purchased as an option to the base system or purchased and added to the system after initial
installation.
Please refer to the Operator's Manual supplied with the printer for proper care and maintenance of your printer.
NOTE: If you are using the Dot Matrix printer, please be sure to check the DIP switch settings of the printer.
†
DSW1 DIP switch 3 should be the only DIP switch set to ON, all of the others should be off. The DIP
switches are located on the bottom of the printer. You will have to remove the small door covering
the DIP switches.

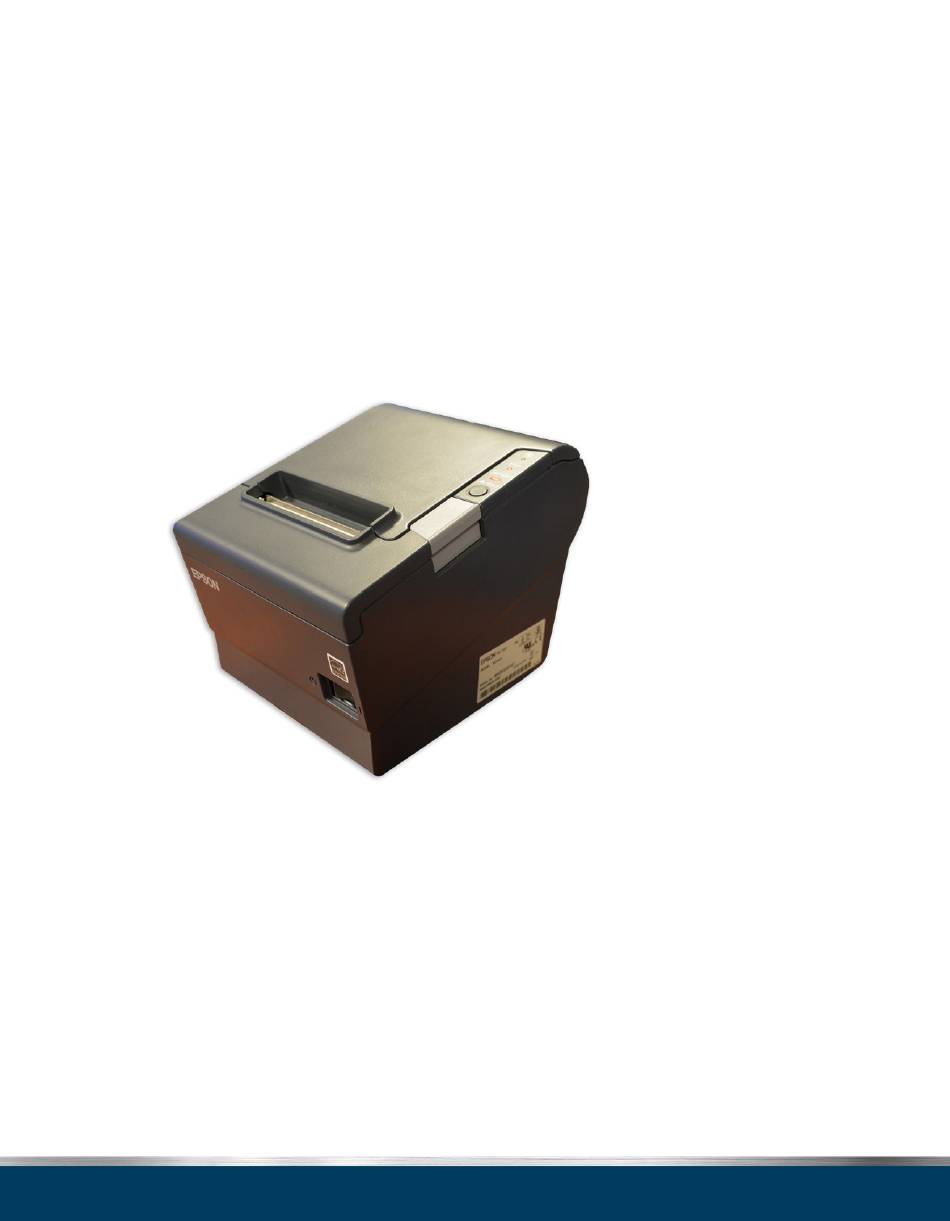

Figure 7-1. Optional: Printer

Mounting and Installation of the Printer

Set on a shelf which is securely mounted next to the Tunnel Master Jr. Relay Box or
„
the Entrance Keypad.
Must be located in a dry and non-corrosive environment.
„
IMPORTANT: Printer is not moisture resistant or waterproof.
The report printer must be located so that connections can be easily made, and the printed reports
„
can be readily accessed.
Page 57 - Tunnel Master® Jr. User Manual Chapter 7: Optional Printer Installation
