Jumper - J3; Entrance Keypad Dip Switch Settings - ICS Tunnel Master Jr. User Manual

Jumper - J3

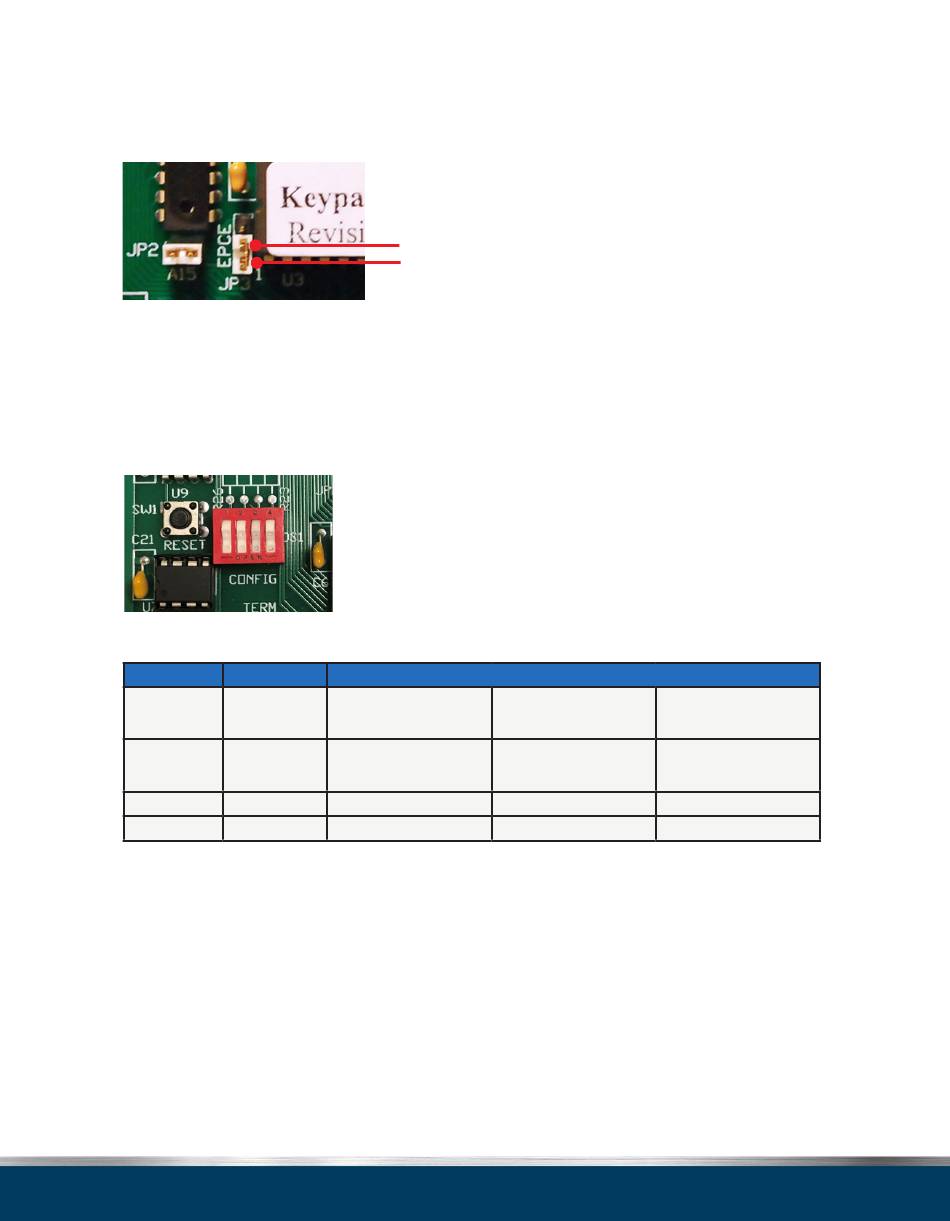

The following figure will show the EPROM Chip in the down position covering pins 1 & 2
corresponding to the letters EPC.
Figure 3-4. Jumper - J3

Entrance Keypad DIP Switch Settings

The following picture and table will show the Entrance Keypad DIP switch and the various
settings that may be used.
NOTE:
The OFF position is away from the word Config on the circuit board.
†
Figure 3-5. Jumper - J3
Switch Setting
1 OFF
2 OFF
3 OFF
4 OFF
Table 3-4. Dip Switch settings
Chapter 3: Entrance Keypad Installation
Pin 2
Pin 1
Address setting 1, 2 OFF
1 OFF, 2 ON
1 ON, 2 OFF
Address setting
1, 2 ON
Baud Rate OFF = 9600
Test Mode
Function
=ADDRESS 5
=ADDRESS 6
=ADDRESS 7
=ADDRESS 8
ON = 38,400
Tunnel Master® Jr. User Manual - Page 28
