Input Wiring Designations

Examples: Gate, Anti-Collision, Roller Detect, etc.
Clock sink
Clock source
Prox switch power

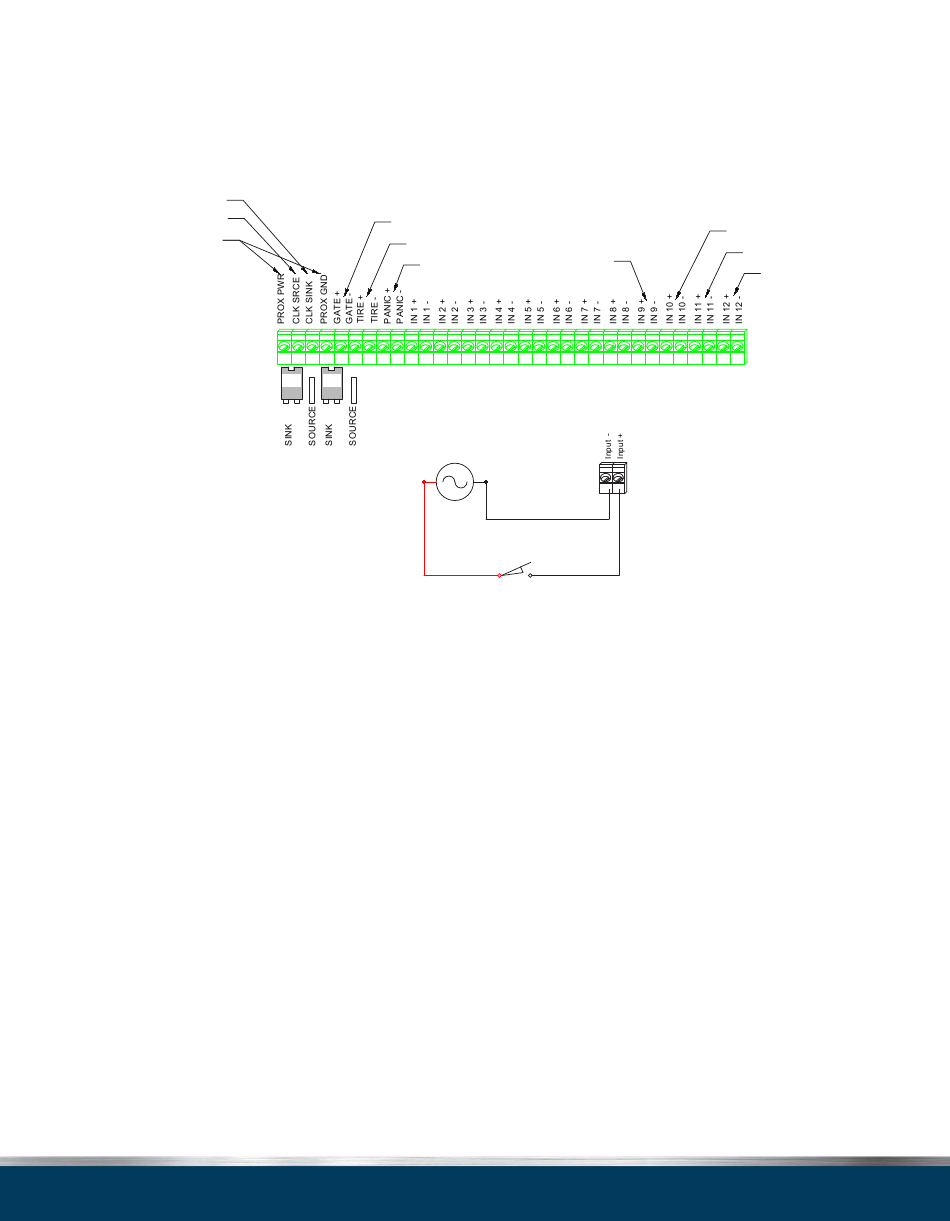

Figure 2-14. Input Wiring
Chapter 2: Hardware Installation
TMJ Input Designations
Gate input
Tire detect input
Panic input
*All input devices must complete a
JP2
JP1
24VAC circuit to the input. A contact
closure alone will NOT toggle the input
Please refer to the example circuit below .
24 VAC SUPPLY
(BY OTHERS
L
(Example ;Gate, Anti Collision, Roller detect, etc.)
Roller locator switch
)
N
Tunnel Master® Jr. User Manual
Entrance Mgt. Treadle
Anti-Collision
External Roller
.
- Page 17
