Optional Report/Receipt Printer Installation Tunnel Master

MOUNTING AND INSTALLATION OF REPORT/RECEIPT PRINTER

Report Printer Mounting


The report printer should be set on a shelf, which is securely mounted
next to the Relay Box.

The Epson report printer is not moisture resistant or waterproof. It must
be located in a dry and non- corrosive environment.

The report printer must be located so that connections can be easily
made, and the printed reports can be readily accessed.

REPORT PRINTER WIRING


Electrician must provide a dedicated 120 VAC circuit and outlet to power
the report printer. This should be on the same dedicated circuit as the
Relay Box.

Drill and provide access into the Relay Box using a Listed ½" water tight
compression connector for a ¼" cable. The connector should be
tightened to the torque specs of the manufacturer. Over torquing may
cause enclosure breakage.
86

Jr.

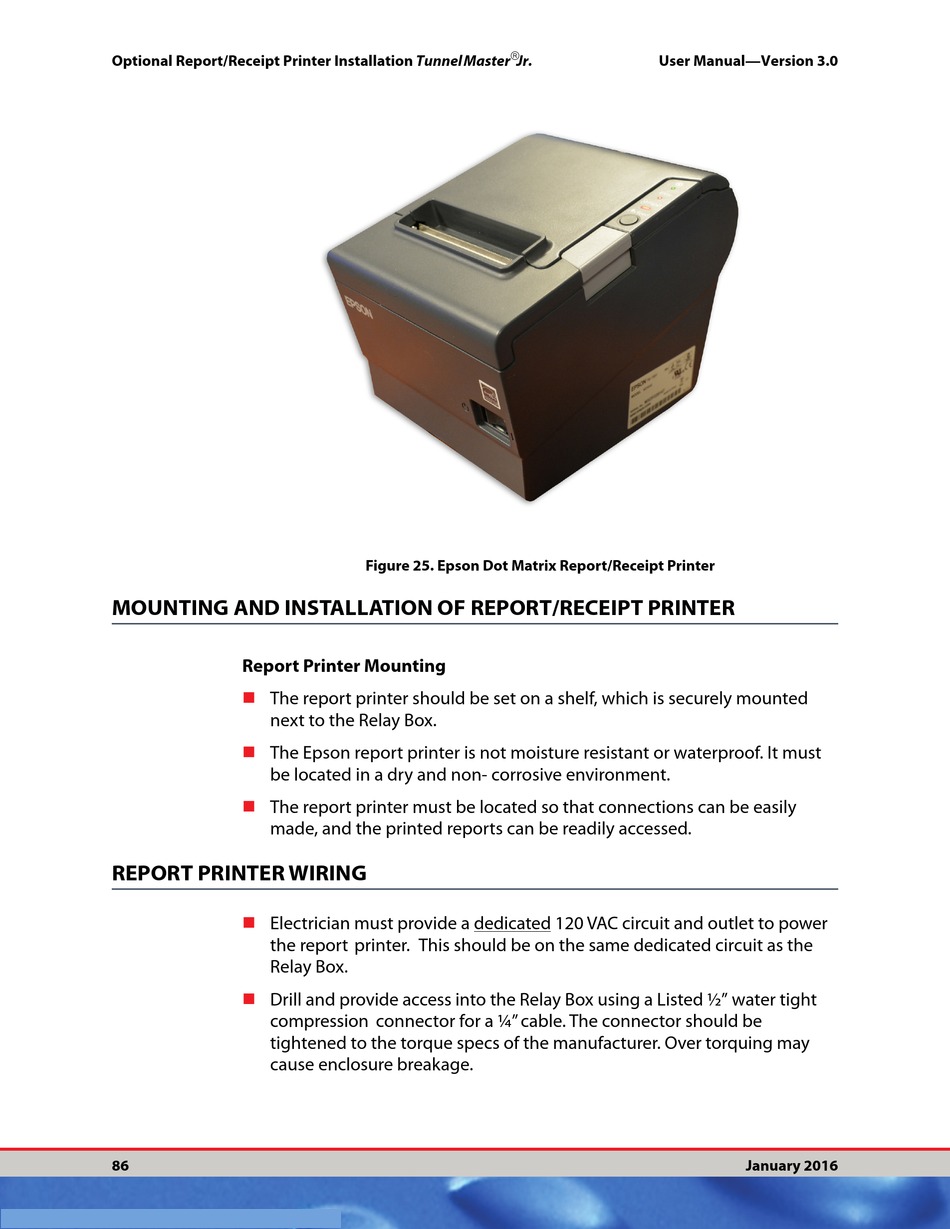

Figure 25. Epson Dot Matrix Report/Receipt Printer
