Push Button Wiring

IMPORTANT: Please be certain to install it exactly as it is shown in the diagram. Wiring it in
any other way would conflict with the designated inputs causing the wash services to run
incorrectly or not at all.
NOTE: This feature is for non-ICS tunnel controllers.
†
Button Station as a means of remotely selecting the features of each car wash, refer to one of
the following schematic diagrams of how it must be wired to operate correctly with the inputs
of the Tunnel Master® Jr.

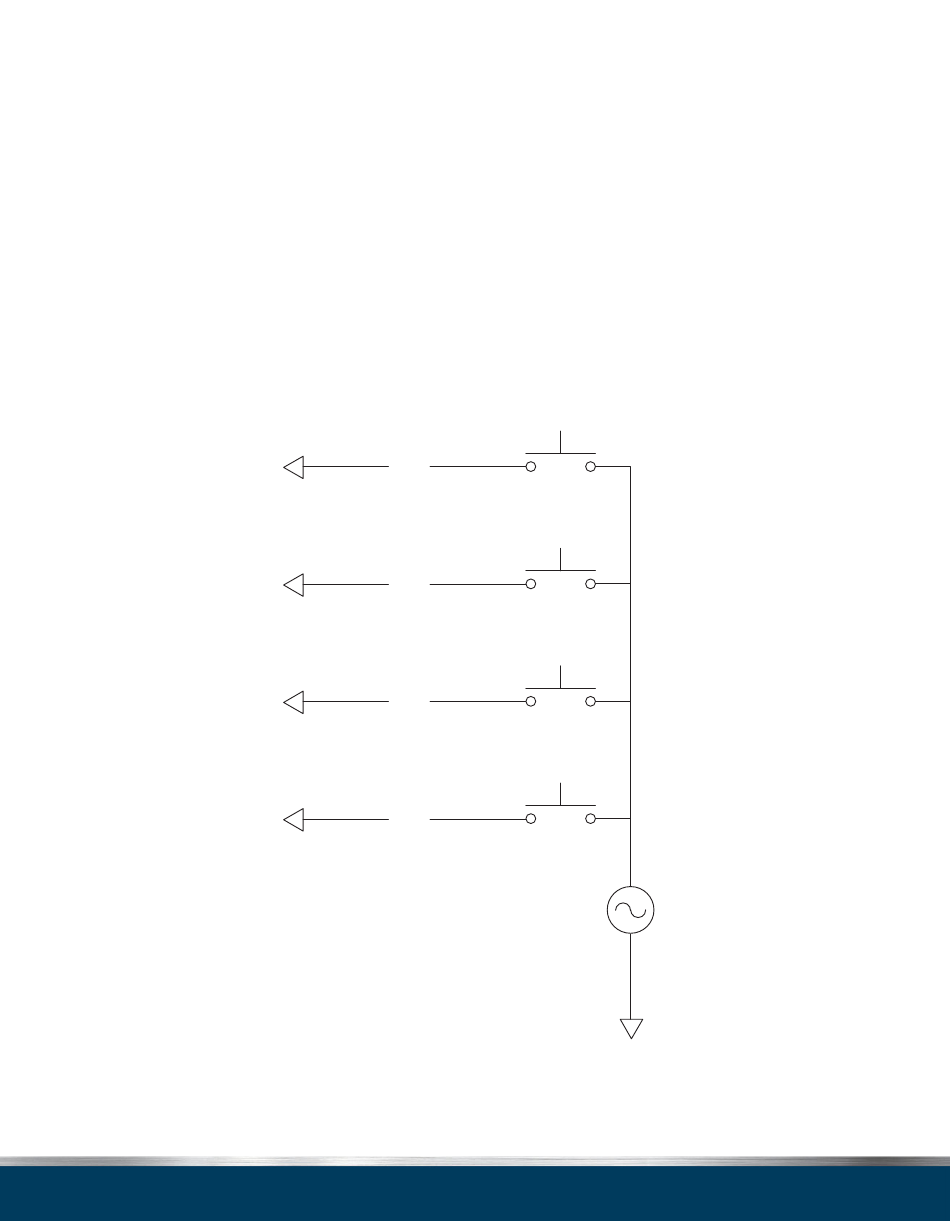

Figure 2-15. Push Button Wiring 1 Row 8 Columns
Page 18 - Tunnel Master® Jr. User Manual
TM Junior Push Button Wiring
1 Row and 8 Columns
Can be used for up to 7 Services
and an 'ALL Clear on Input 8'.
Input 1
Input 2
Input 3
Input 8
If the Tunnel Master® Jr. is going to utilize a Push
PB 1
Service 1
PB 2
Service 2
PB 3
Service 3
PB 4
All Clear
24VAC
Inputs 1-8
Common
