Summary of Contents for ICS NT03V

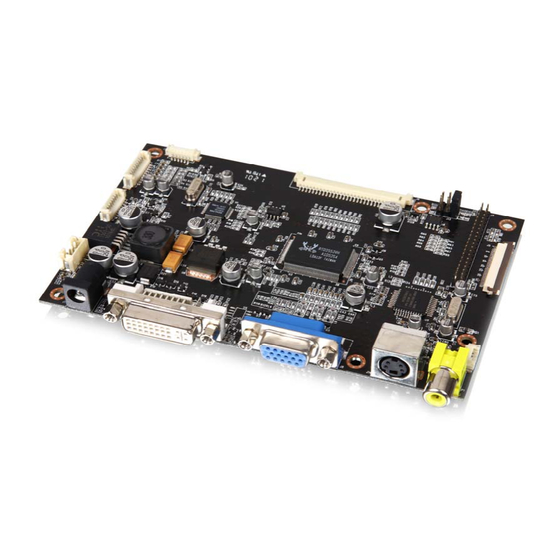

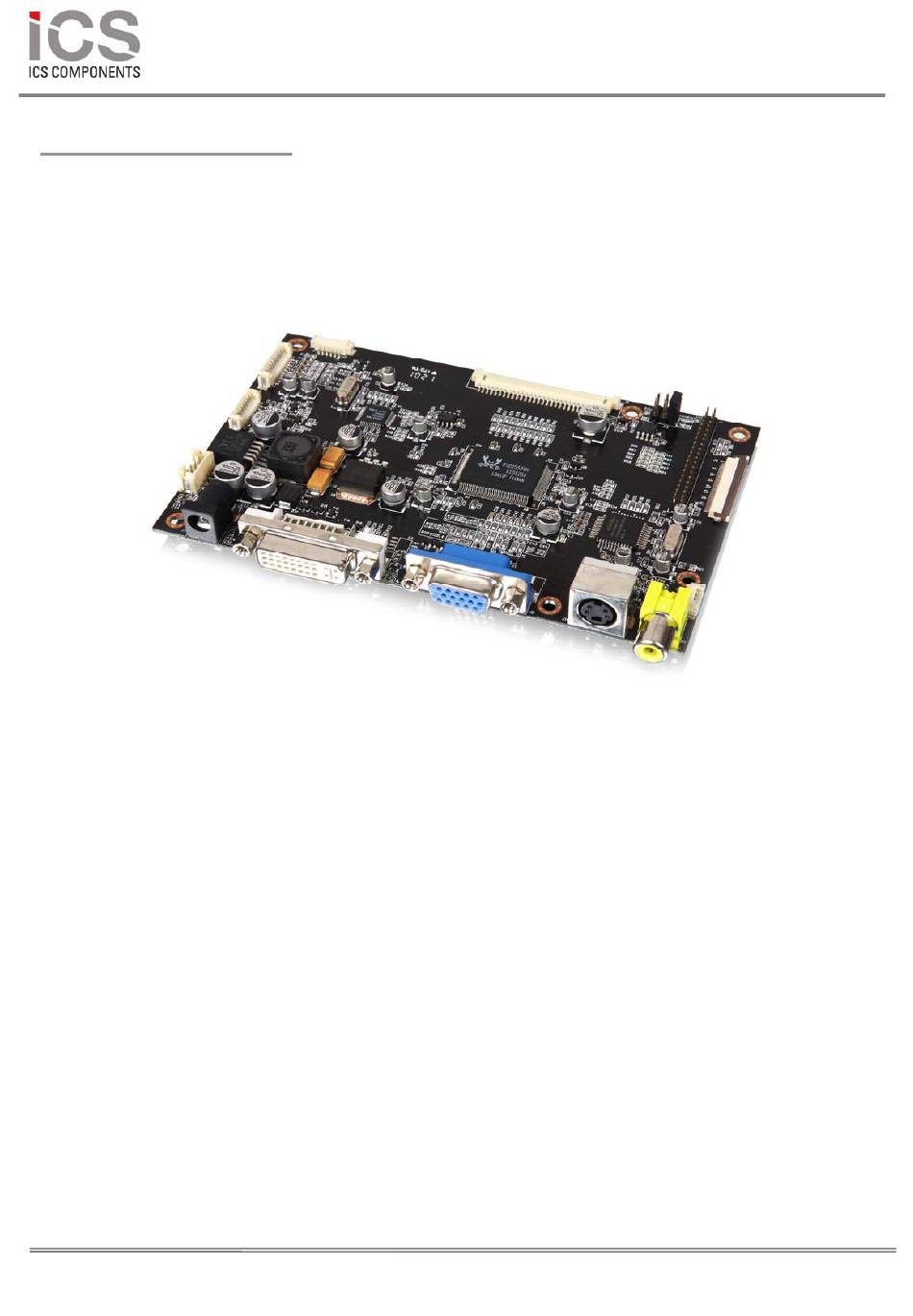

- Page 1 WE MEET ANY DISPLAY! | DATA SHEET NT03V | Data Sheet TFT LCD CONTROL BOARD Preliminary Specification Model Name: NT03V ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
- Page 2 1 01 January 24, 2007 Preliminary Release 2 02 May 30, 2008 ‐ 3 03 June 30, 2008 Changed the Image ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
-
Page 3: Table Of Contents
9. CONTROLLER DIMENSIONS ........................ 1 8 10. APPLICATION NOTES .......................... 1 9 11. TROUBLESHOOTING .......................... 20 12. APPLICABLE GRAPHIC MODE ........................ 21 13. ACCESSORY ............................ 22 14. APPENDIX ............................... 23 ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 4: General Description
| DATA SHEET NT03V | 1. GENERAL DESCRIPTION This controller board is designed for a LCD monitor and other flat panel display application. This controller board provides an auto‐input synchronization and easy to sue interface controller for: TFT (active matrix) LCD panels of 800x480, 1024x768, 1280x768, 1366x768, 1280x1024 and 1600x1200 resolutions. Computer video signals of VGA, SVGA, XGA, WXGA, SXGA and UXGA standard Input Signal Support All VESA standard [NT03V] ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 5: Introduction
* Since LSI is used in this controller board, take care of static electricity and insure human earth when handling. IMPORTANT USAGE NOTE This equipment is for use by developers and integrators. The manufacturer accepts no liability for damage or injury caused by the use of this product. It is the responsibility of the developer, integrators or other users of this product to: Ensure that all necessary and appropriate safety measures are taken. Obtain suitable regulatory approvals as may be required. Check power settings to all component parts before connection. DISCLAIMER There is no implied or expressed warranty regarding this material. ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 6: General Specification
NT03V ‐WX1 1366x768 Yes No No NT03V ‐WX2 1366x768 Yes Yes No NT03V ‐WX3 1366x768 Yes Yes Yes ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 7: Electrical Specification
V 0 3.3 L=off, H=on Brightness 3.3 0 V Option(1) control 0 4.0 (1)Default setting: S/W dimming control(0V), If you want to use Analog dimming control, Please contact our company. ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 8: Functional Block Diagram
WE MEET ANY DISPLAY! | DATA SHEET NT03V | 5. FUNCTIONAL BLOCK DIAGRAM ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 9: Osd Control Board
MENU Activate menu / Exit Menu SELECT Menu Select / Source(option) DOWN Cursor control Down / Auto Adjust UP Cursor control Up / Auto Color ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 10: Osd Function
OSD H/V position: OSD H,V position Control OSD Off timer: OSD Off timer Control Language: OSD language Select Misc: Input Source/Reset Input Source : Input signal select (Analog, DVI) Reset: Restore to default Value Exit / Back: ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... - Page 11 This message is not disappeared before power off or activity of input signal. Input Signal is not present. This message is disappeared after 5 seconds. Execute ‘INITIALIZE’ Function ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
-
Page 12: Connector, Pinout & Jumpers
FH19‐40S‐0.5SH HIROSE J6 Connector LVDS Dual Interface Connector 12507WR‐30 YEONHO J13 Jumper Panel power select jumper 2*3P_2.5mm ‐ J17 Connector Composite Video Input Connector 12505WR‐04 YEONHO ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... - Page 13 ADJ Adjust LED 19 AGRN6 Green output data 39 VLED +5V 20 AGRN7 Green output data 40 VLED +5V ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
- Page 14 ARED3 RED output data 38 ABLU6 Blue output data 19 ARED4 RED output data 39 ABLU7 Blue output data 20 GND Ground 40 GND Ground ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
- Page 15 GND Ground 11 GND Ground 12 DSDA DDC‐SDA 13 HSYNC Horizontal Sync 14 VSYNC Vertical Sync 15 DSCL Serial Clock Input ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
- Page 16 TMDS DATA0 Differential Negative Signal J11: DC power Input Jack (12V) Pin No. Symbol Description Pin No. Symbol Description Center Vcc 12V Shell GND Ground ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
- Page 17 CAUTION: Incorrect setting can damage panel 3.3V 5.0V panel power CAUTION: Incorrect setting can damage panel 3.3V 12V/18V panel power CAUTION: Incorrect setting can damage panel 3.3V CAUTION: Incorrect setting can damage panel ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
-
Page 18: Controller Dimensions
WE MEET ANY DISPLAY! | DATA SHEET NT03V | 9. CONTROLLER DIMENSIONS 14.64mm 1.6T Max 3mm ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 19: Application Notes
Brightness Dimming control: This controller boards are analog dimming control method. And it is important to consider the specifications for the inverter to be used. ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 20: Troubleshooting
Incorrect jumper settings on the controller may cause everything from incorrect image viewing to total failure. CAUTION: Do not set the panel power input incorrectly. Sparkling on the display: faulty panel signal cable. E. Backlight:: Items to check include: Power input, controls, inverter and Tubes generally in this order. If half the screen is dimmer than the other half: Check cabling for the inverter. Also: If system does not power down when there is a loss of signal. ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 21: Applicable Graphic Mode
1024 1280*1024@75Hz 135.000 P 79.976 1280 P 75.035 1024 1600*1200@60Hz 162.000 P 75.000 1600 P 60.00 1200 ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 22: Accessory
* SC: LCD Signal Cable IC: Inverter Interface cable OC: OSD Board cable mm: Cable length (unit: mm) ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... -
Page 23: Appendix
ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr... - Page 24 ICS Components Co., Ltd. Masters Tower 2310, 553 Dohwa‐dong, Mapo‐gu, Seoul, 121‐748, R.o.Korea TEL +82 (0)2‐701‐4144 | FAX +82 (0)2‐701‐4147 www.icsco.kr ICS Components Co.,Ltd. Masters Tower 2310, 553 Dohwa-dong, Mapo-gu, Seoul, 121-748, R.o.Korea | Tel.+82 (0)2 -701- 4144~6 | Fax.+82 (0)2-701-4147 | www.icsco.kr...
