DIP Switch Settings

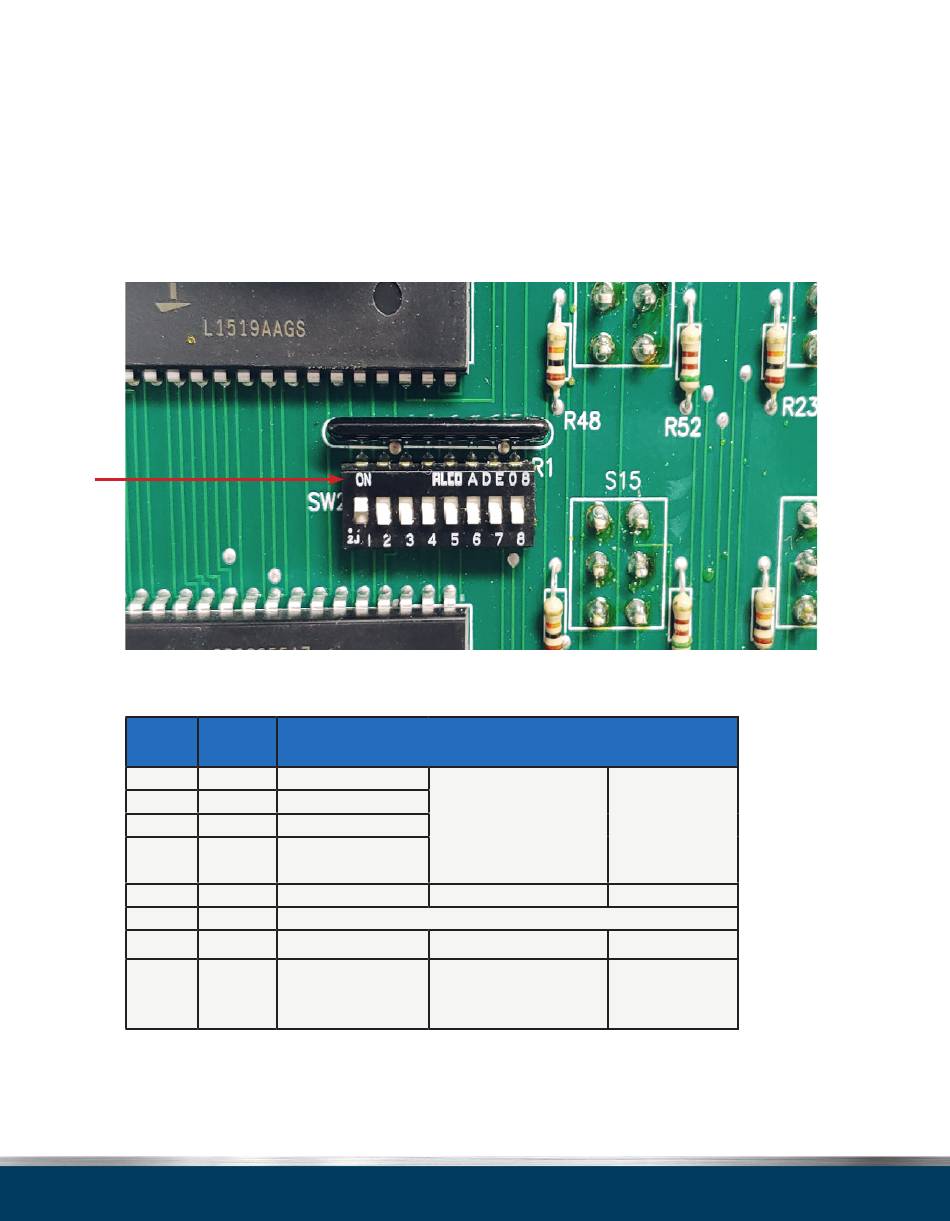

The following image and table will show the Relay Box Dip switch and the various settings that may
be used. The DIP switch settings in the table are for normal operations.
The ON position is marked with an arrow and is always up. A 24 Output Relay Box will ship as ADDR1.
If you were to add a second Relay Box to the system, it should be addressed as ADDR9.
Tunnel Master® Jr. AC Power Terminations
Figure 2-19. DIP Switch Settings located on the inside of the Relay
Switch Default
Setting
1 OFF
2 OFF
3 OFF
4 OFF
5 OFF
6 OFF
7 OFF
8 ON
Table 2-4. DIP Switch Settings
Chapter 2: Hardware Installation
Address Setting: 1, 2, 3, 4 OFF
Address Setting: 1 ON; 2, 3, 4 OFF
Address Setting: 1 ON; 2, 3 OFF; 4 ON
Address Setting: 1 ON; 2 Off; 3 ON; 4 OFF
1 ON; 2 OFF; 3, 4 ON
Baud Rate: OFF = 9600
Up position allows access to Initialization Menu options
Pulse 7, 8 OFF
Pulse Enhancement 7 OFF; 8 ON
7 ON; 8 OFF
7, 8 ON
Function
= Address 1
= Address 9
= Address 10
= Address 11
= Address 12
ON = 38,400
Normal
2 Times
4 Times
8 Times
