Using EZ-KIT Lite VisualDSP++ Interface

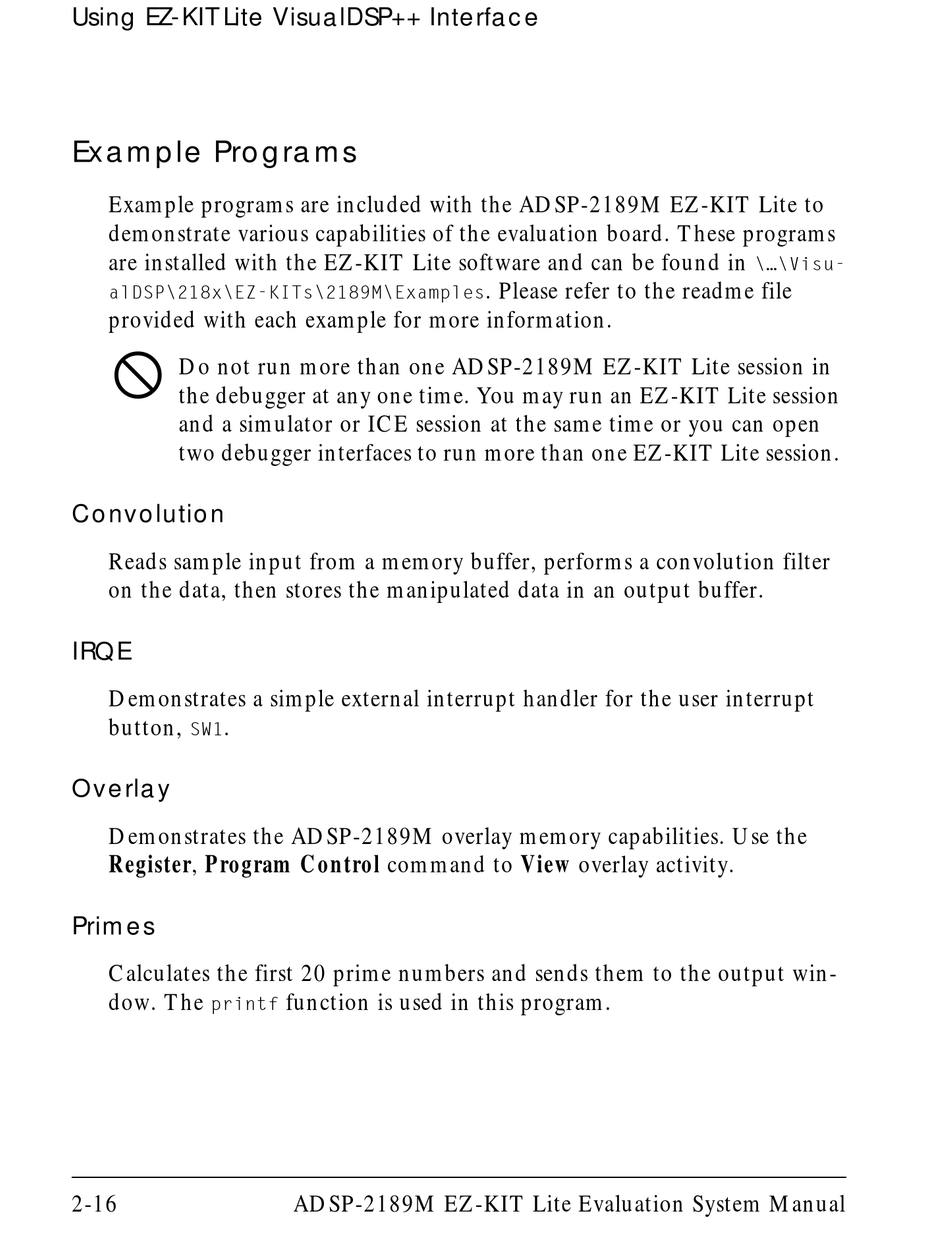

Example Programs

Example programs are included with the ADSP-2189M EZ-KIT Lite to
demonstrate various capabilities of the evaluation board. These programs
are installed with the EZ-KIT Lite software and can be found in
alDSP\218x\EZ-KITs\2189M\Examples
provided with each example for more information.
#
Do not run more than one ADSP-2189M EZ-KIT Lite session in
the debugger at any one time. You may run an EZ-KIT Lite session
and a simulator or ICE session at the same time or you can open
two debugger interfaces to run more than one EZ-KIT Lite session.

Convolution

Reads sample input from a memory buffer, performs a convolution filter
on the data, then stores the manipulated data in an output buffer.

IRQE

Demonstrates a simple external interrupt handler for the user interrupt
button, .
SW1

Overlay

Demonstrates the ADSP-2189M overlay memory capabilities. Use the
Register, Program Control command to View overlay activity.

Primes

Calculates the first 20 prime numbers and sends them to the output win-
dow. The
printf
2-16
function is used in this program.
ADSP-2189M EZ-KIT Lite Evaluation System Manual
. Please refer to the readme file
\...\Visu-
