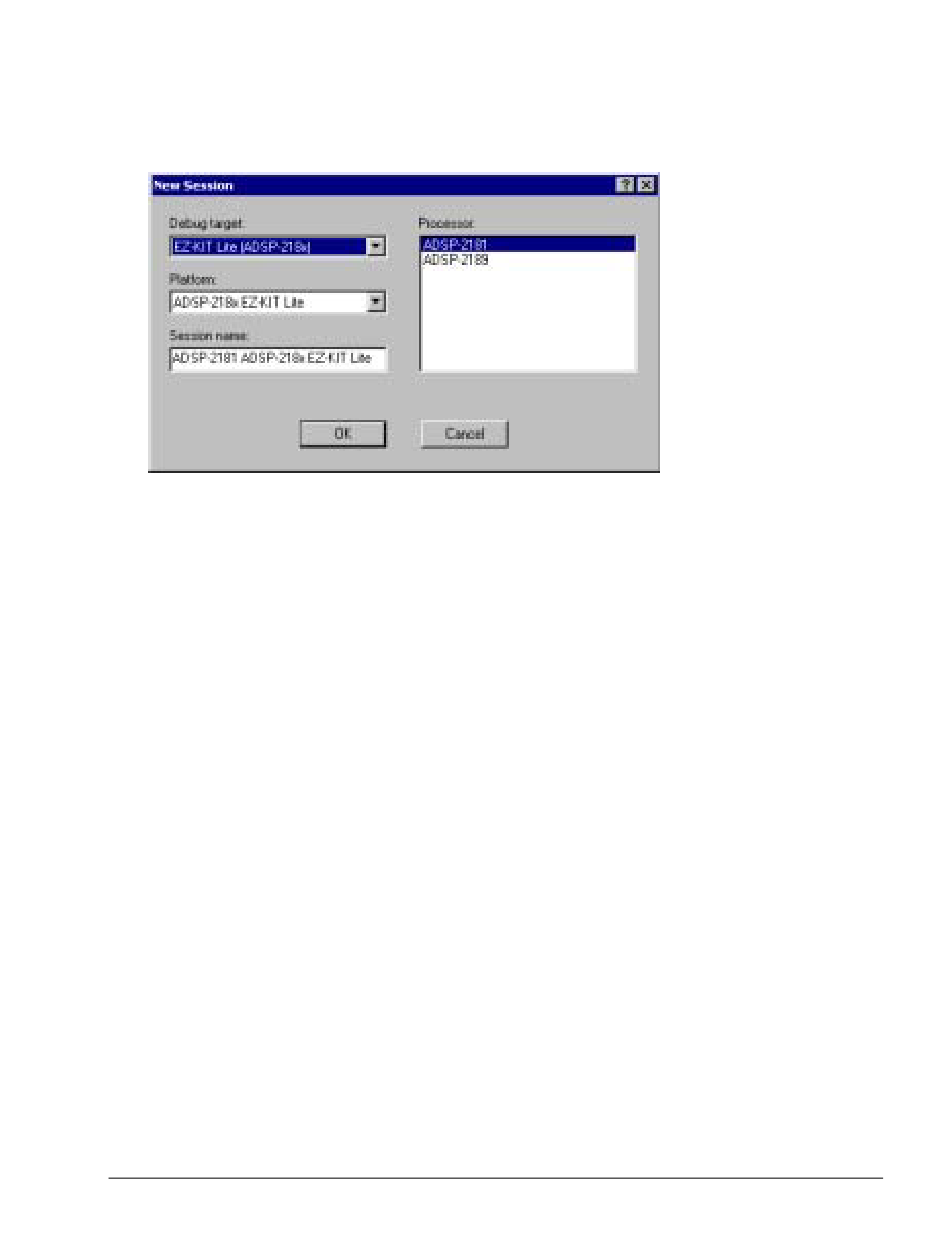

Figure 2-1. New Session Dialog Box
7. Click OK to return to the Session List. Highlight the new session
and click Activate.
8. A message appears instructing you to press the Reset button. Click
OK and press the reset button on the board.
All the LEDs light up and after a brief delay (less than 2 seconds),
all of the LEDs go dark except for the power LED. Verify that the
LEDs do dark (except for the power LED) before going to the next
step.
9. Click OK
The initialization completes and the disassembly window opens.
The code in the disassembly window is the EZ-KIT Lite monitor
program.
