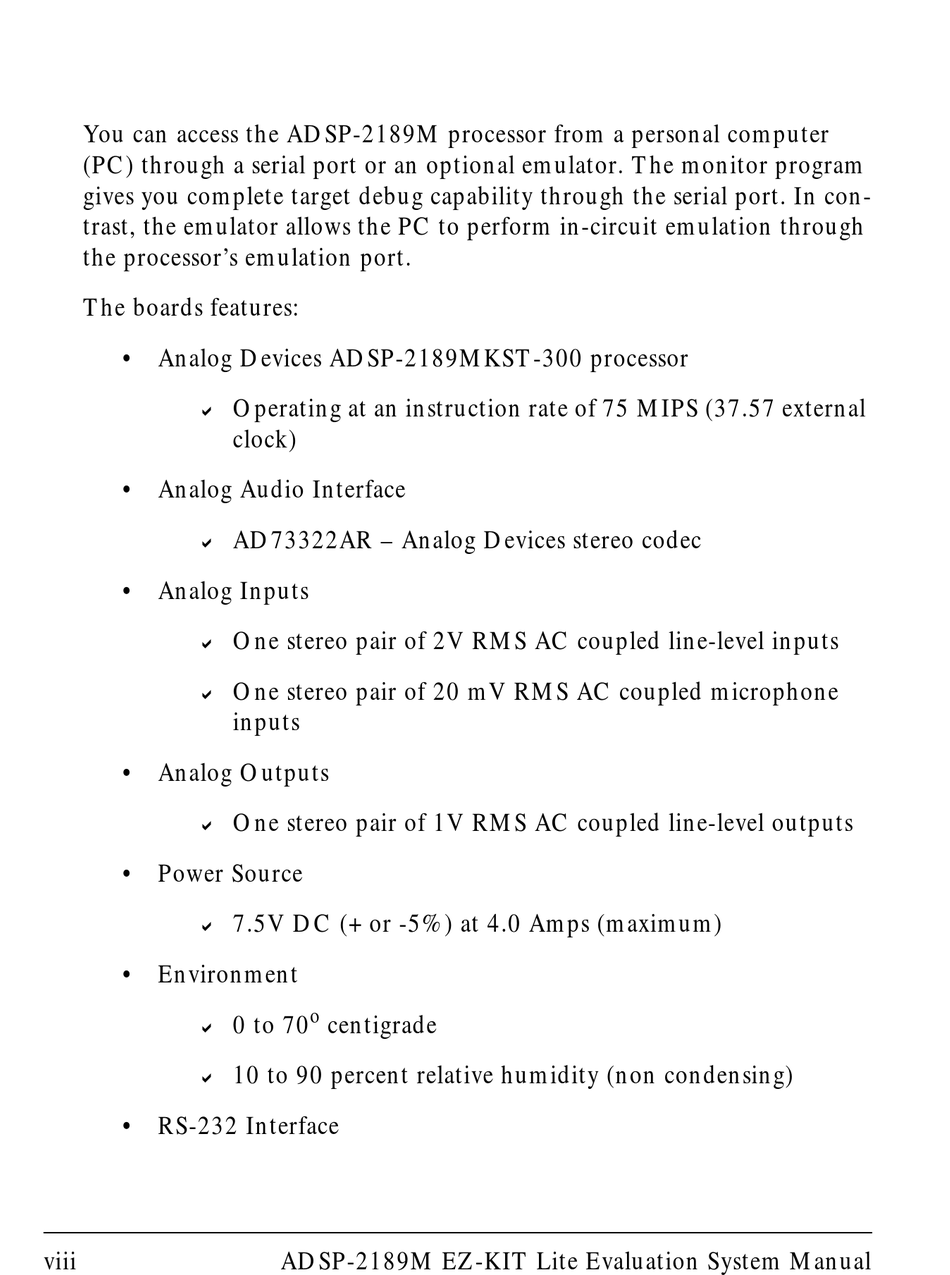

You can access the ADSP-2189M processor from a personal computer
(PC) through a serial port or an optional emulator. The monitor program
gives you complete target debug capability through the serial port. In con-
trast, the emulator allows the PC to perform in-circuit emulation through
the processor's emulation port.
The boards features:
• Analog Devices ADSP-2189MKST-300 processor
!
• Analog Audio Interface
!
• Analog Inputs
!
!
• Analog Outputs
!
• Power Source
!
• Environment
!
!
• RS-232 Interface
viii
Operating at an instruction rate of 75 MIPS (37.57 external
clock)
AD73322AR – Analog Devices stereo codec
One stereo pair of 2V RMS AC coupled line-level inputs
One stereo pair of 20 mV RMS AC coupled microphone
inputs
One stereo pair of 1V RMS AC coupled line-level outputs
7.5V DC (+ or -5%) at 4.0 Amps (maximum)
o
0 to 70 centigrade
10 to 90 percent relative humidity (non condensing)
