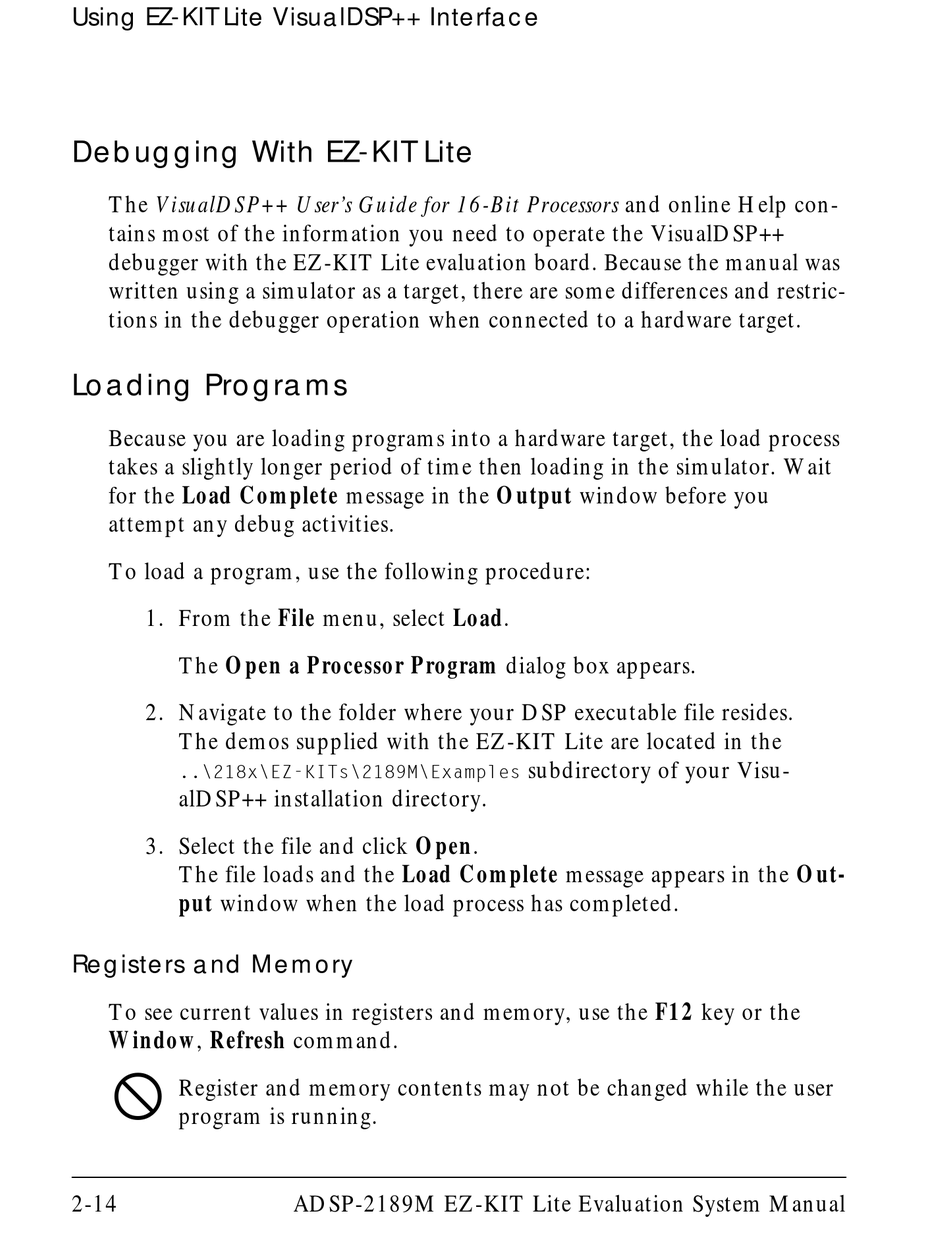

Using EZ-KIT Lite VisualDSP++ Interface

Debugging With EZ-KIT Lite

The VisualDSP++ User's Guide for 16-Bit Processors and online Help con-
tains most of the information you need to operate the VisualDSP++
debugger with the EZ-KIT Lite evaluation board. Because the manual was
written using a simulator as a target, there are some differences and restric-
tions in the debugger operation when connected to a hardware target.

Loading Programs

Because you are loading programs into a hardware target, the load process
takes a slightly longer period of time then loading in the simulator. Wait
for the Load Complete message in the Output window before you
attempt any debug activities.
To load a program, use the following procedure:
1. From the File menu, select Load.
The Open a Processor Program dialog box appears.
2. Navigate to the folder where your DSP executable file resides.
The demos supplied with the EZ-KIT Lite are located in the
..\218x\EZ-KITs\2189M\Examples
alDSP++ installation directory.
3. Select the file and click Open.
The file loads and the Load Complete message appears in the Out-
put window when the load process has completed.

Registers and Memory

To see current values in registers and memory, use the F12 key or the
Window, Refresh command.
#
Register and memory contents may not be changed while the user
program is running.
2-14 ADSP-2189M EZ-KIT Lite Evaluation System Manual
subdirectory of your Visu-
