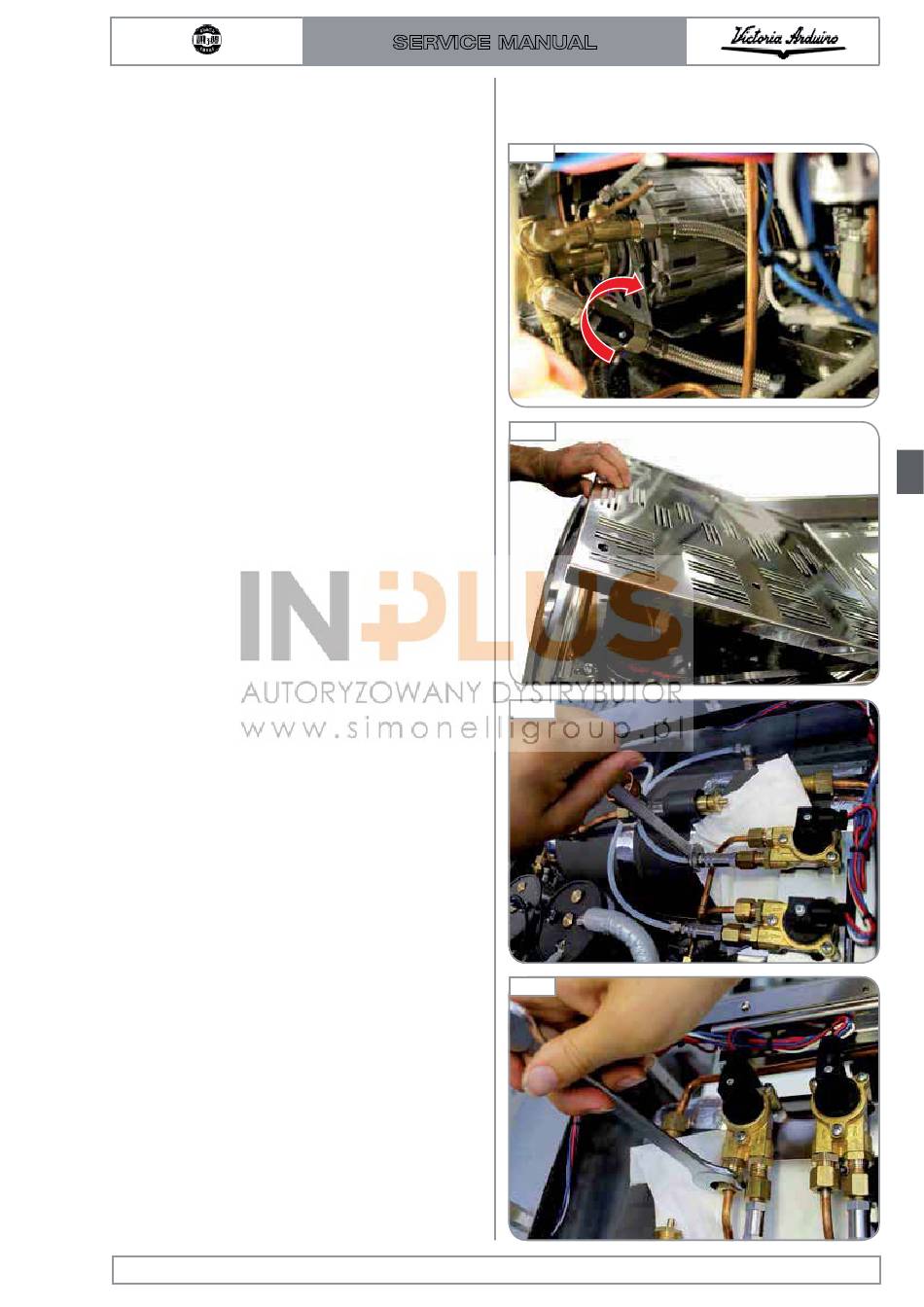

HOW TO REMOVE THE FAN
If instead it is necessary to inspect or remove the
flowmeter:
1 Remove the front panel and close the valve
on the pump.
2 Remove the cup warmer modules. The flow-
meters are located under the right module.
3 Place a cloth or paper towel under the
Ventolino to be examined and unscrew the
Teflon tubing using a 12 mm wrench.
4 Disconnect the copper tube using a 17mm
wrench.
Edition 01 of 08/2017
SERVICE MANUAL
Fig. 217
Fig. 218
Fig. 219
Fig. 220
7.13
