The flat cables that are located on the left side of the
board are respectively:
1 Connection of the control unit with the data
collector probes.
2 Connection with the control unit of the
screen.
3 Connect groups screens.
4 Connection unit Gravimetric probes (gravi-
metric version only).
The unit manages the logic, enables the delivery
of power and valves, while the display control
unit stores user settings such doses, alarms,
temperature settings etc ..
In the Gravimetric-bit version of the control unit is
on the back of the machine handles the scales of
communicating signals reach the preset weight.
8.2

THE CONTACTOR

To access the meter:
1 Remove the left side panel,
2 Remove the screw that holds the door
closed using a Phillips screwdriver.
3 Remove the cover of the contactor by remov-
ing the two screws with a Phillips screwdriver.
8.6
SERVICE MANUAL

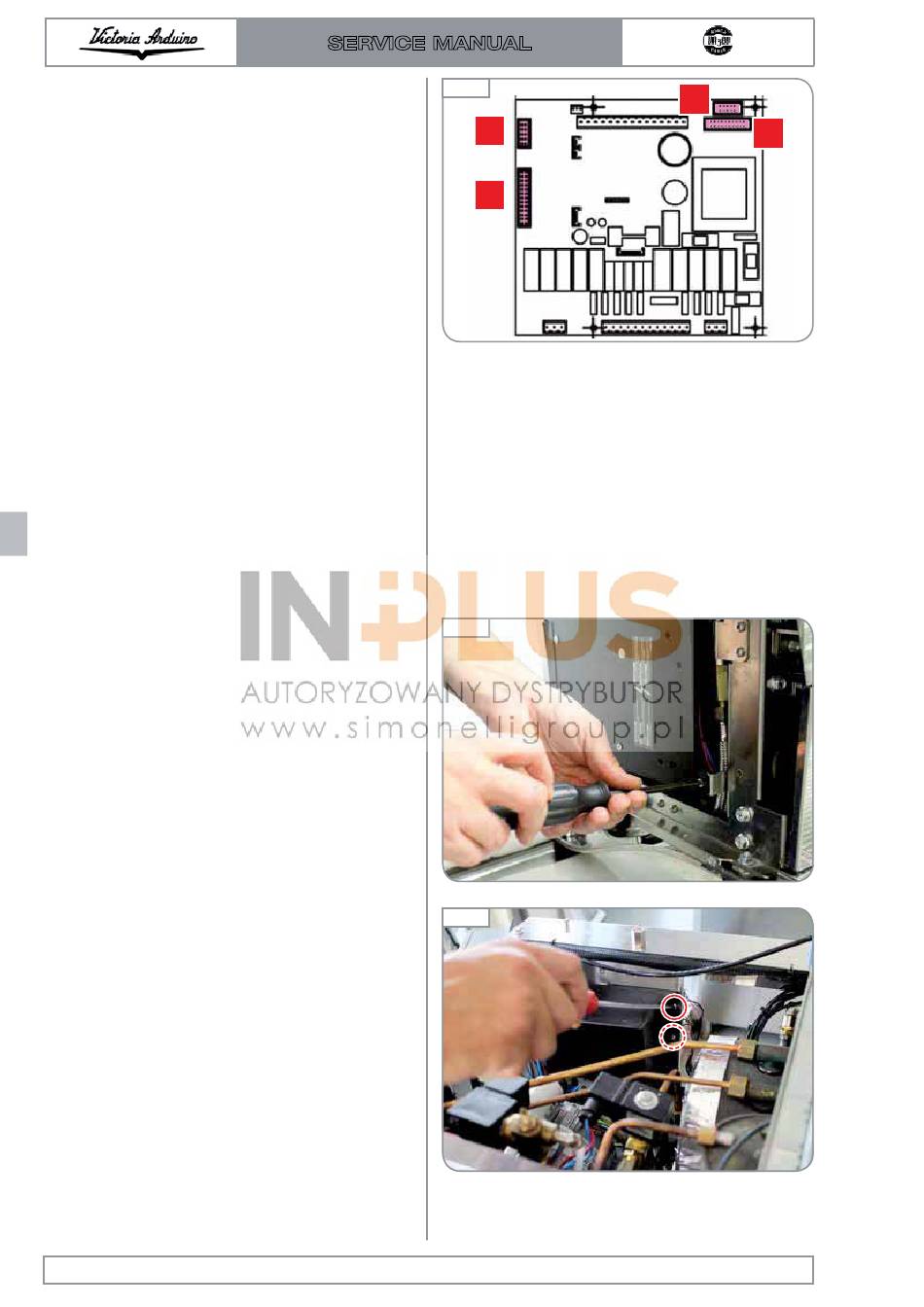

Fig. 271
1
2
Fig. 272
Fig. 273
3
4
Edition 01 of 08/2017
