NOTE
Select also the type of key used. If WPA2 is
not working, set up your router with a WPA
key.
After making the configuration, save all your set-
tings by pressing the SAVE button.
Lastly, click the REBOOT button on the top
right to restart the Wi-Fi module and conclude
the connection operation between module and
network. From this moment the module is no
longer visible as a hotspot, but will automatically
connect to the selected network.
When the configuration and reboot operation is
concluded, turn off the machine and connect the
RS 232 cable as shown in the following pictures.
To conclude, place the module in the machine
and reposition the side panels thereby conclud-
ing the installation.
Edition 01 of 08/2017
SERVICE MANUAL

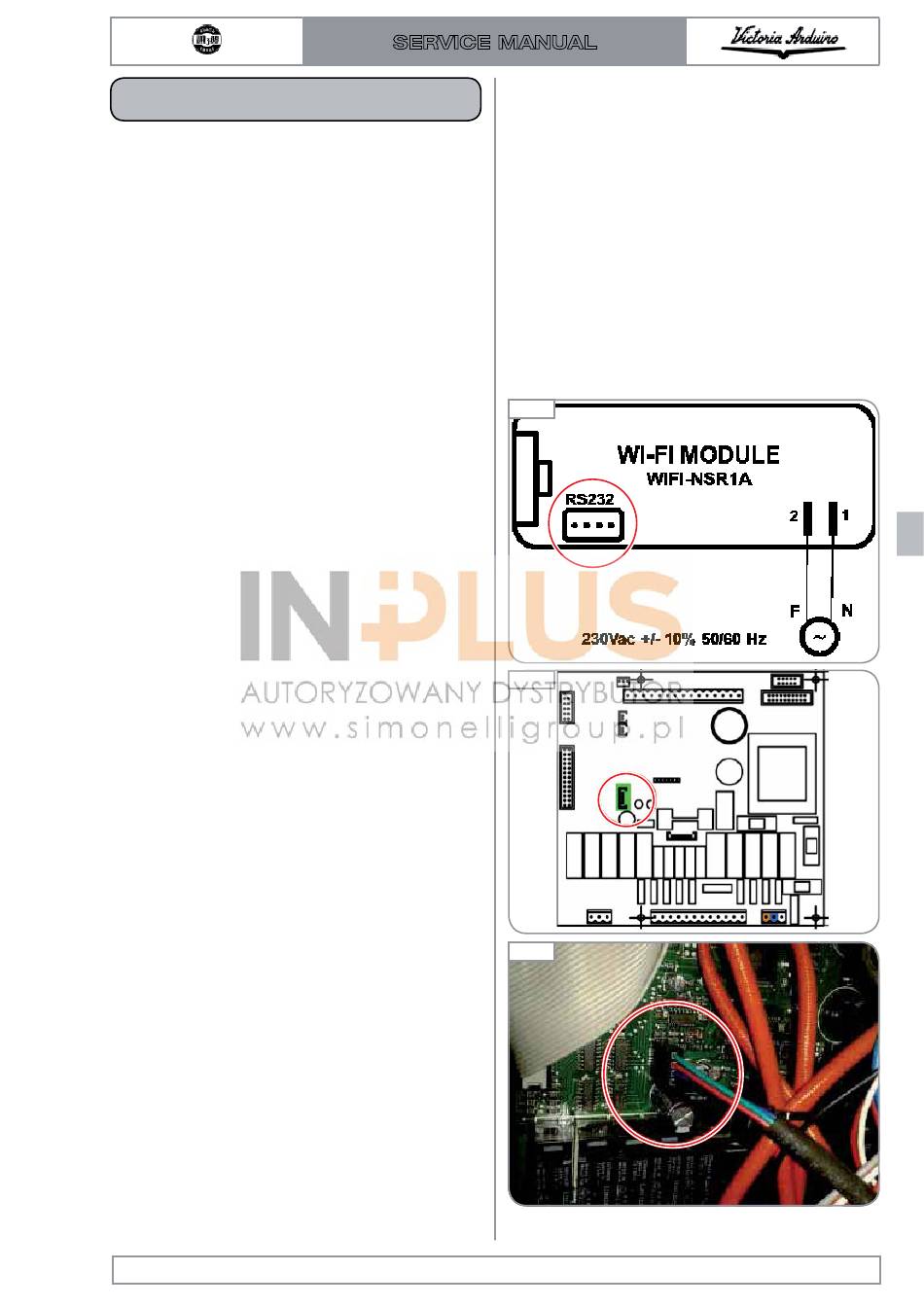

Fig. 334
