4 Set the various parameters using the scroll
wheel to scroll through the various options
e.g.: T3/digit, 2/3 units etc.
See Chapter 10 for more details.
5 Exit configuration by pressing the "Home"
key.
8.10

GRAVIMETRIC

CONTROL UNIT

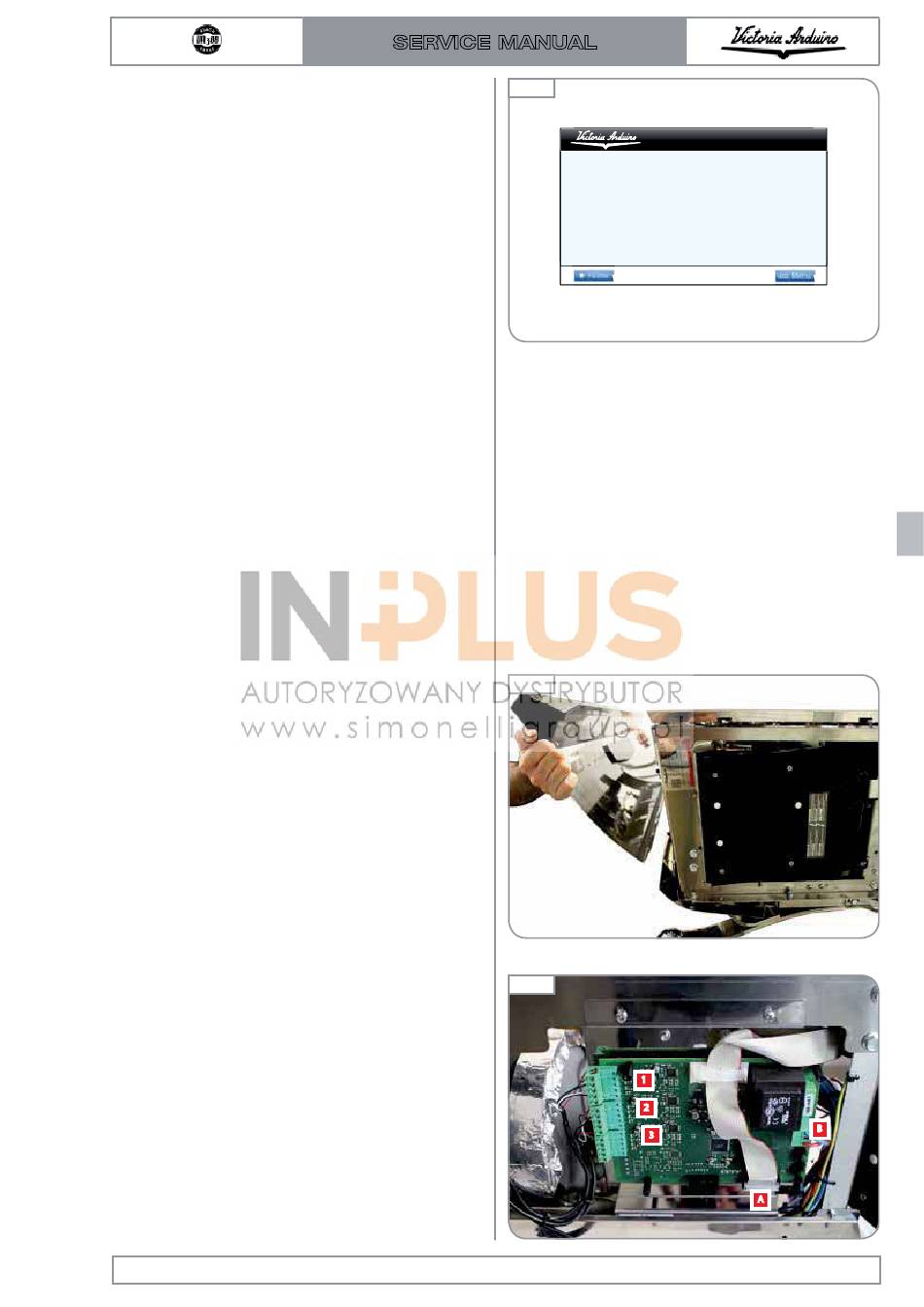

The gravimetric control unit located in the rear of
the machine and calculates the weight measured
by the load cells.
To access the gravimetric unit:
1 Remove the side panels and the back panel
(see Chapter 3).
The control unit is located on the left side of
the machine.
2 Disconnect the cables for groups 1, 2 and
3, the FLAT cable "A" and the power supply
"B".
Edition 01 of 08/2017
SERVICE MANUAL
Fig. 313
Fig. 314
Fig. 315
