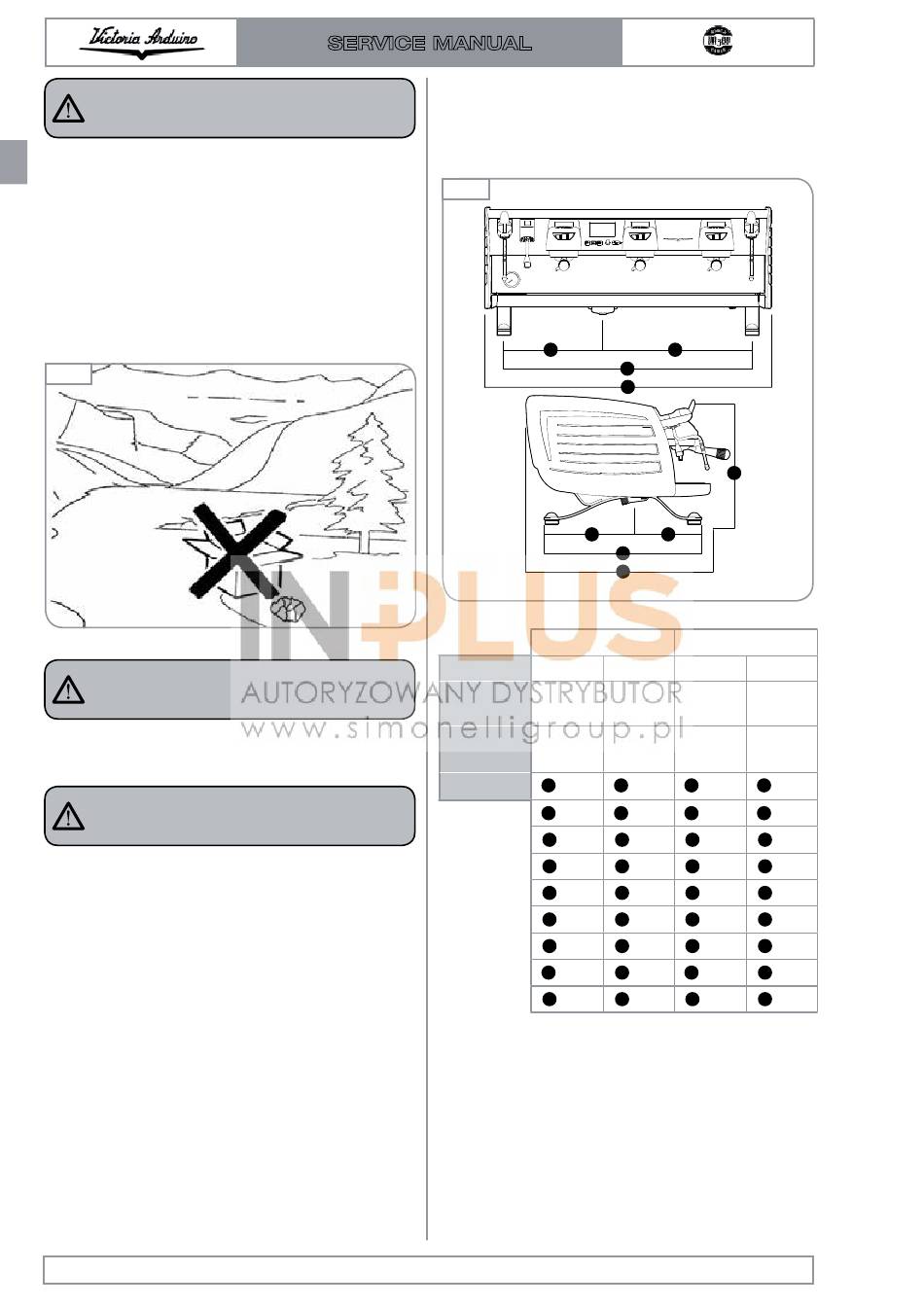

Victoria Arduino BLACK EAGLE VA388 Service Manual page 16

RISK OF POLLUTION
DO NOT DISPOSE PACKAGING in the environ-
ment.
Prior to installation please carefully read the
safety instructions in this manual. The company
cannot be held responsible for damage to per-
sons or property arising from non-compliance
with safety regulations, either during installation
or maintenance of the machine described in this
manual.
Fig. 14
WARNING
Place the machine in an area where all risks of
malfunction can be avoided.
WARNING
Never install in areas where the machine may
be subject to jets of water.
2.2
SERVICE MANUAL
2.1 FIRST INSTALLATION
2.1.1
TECHNICAL CHARACTERISTICS
Fig. 15
NET WEIGHT
GROSS
WEIGHT
POWER
DIMENSIONS
WEIGHT AND DIMENSIONS
E F
B
A
G I
D
C
2 Groups
85 kg 187 lb
105 kg 231 lb
7300 7300
W W
822 mm 32,36 in
A A
729 mm 28,7 in
B B
690 mm 27,17 in
C C
584 mm 22,99 in
D D
390 mm 15,35 in
E E
338 mm 13,3 in
F F
369 mm 14,53 in
G G
480,5 mm 18,92 in
H H
215 mm 8,46 in
I I
Edition 01 of 08/2017
H
3 Groups
110 kg 243 lb
130 kg 287 lb
9100 9100
W W
1072 mm
42,2 in
A A
979 mm 38,54 in
B B
690 mm 27,17 in
C C
584 mm 22,99 in
D D
395 mm 15,55 in
E E
575 mm 22,64 in
F F
369 mm 14,53 in
G G
480,5 mm 18,92 in
H H
215 mm 8,46 in
I I
