8.12

REMOTE CONTROL

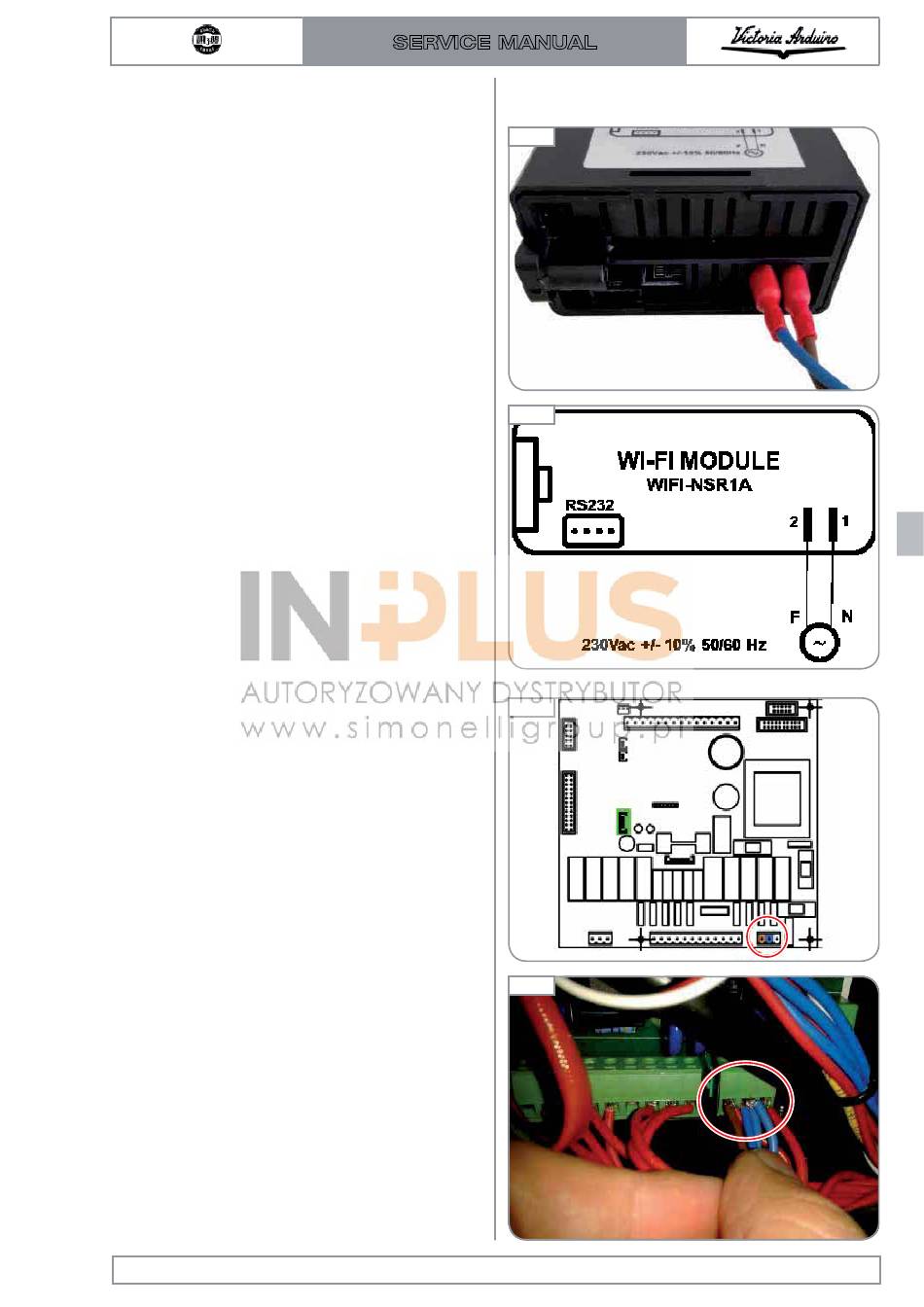

The remote control module is formed by a box
with two connections: one for data, and a pair
of sockets for the 230V power supply as in the
figure.
To configure the module it is necessary to firstly
connect the power supply, creating a parallel
with the power supply of the machine control
unit.
Edition 01 of 08/2017
SERVICE MANUAL
Fig. 326
Fig. 327
Fig. 328
Fig. 329
