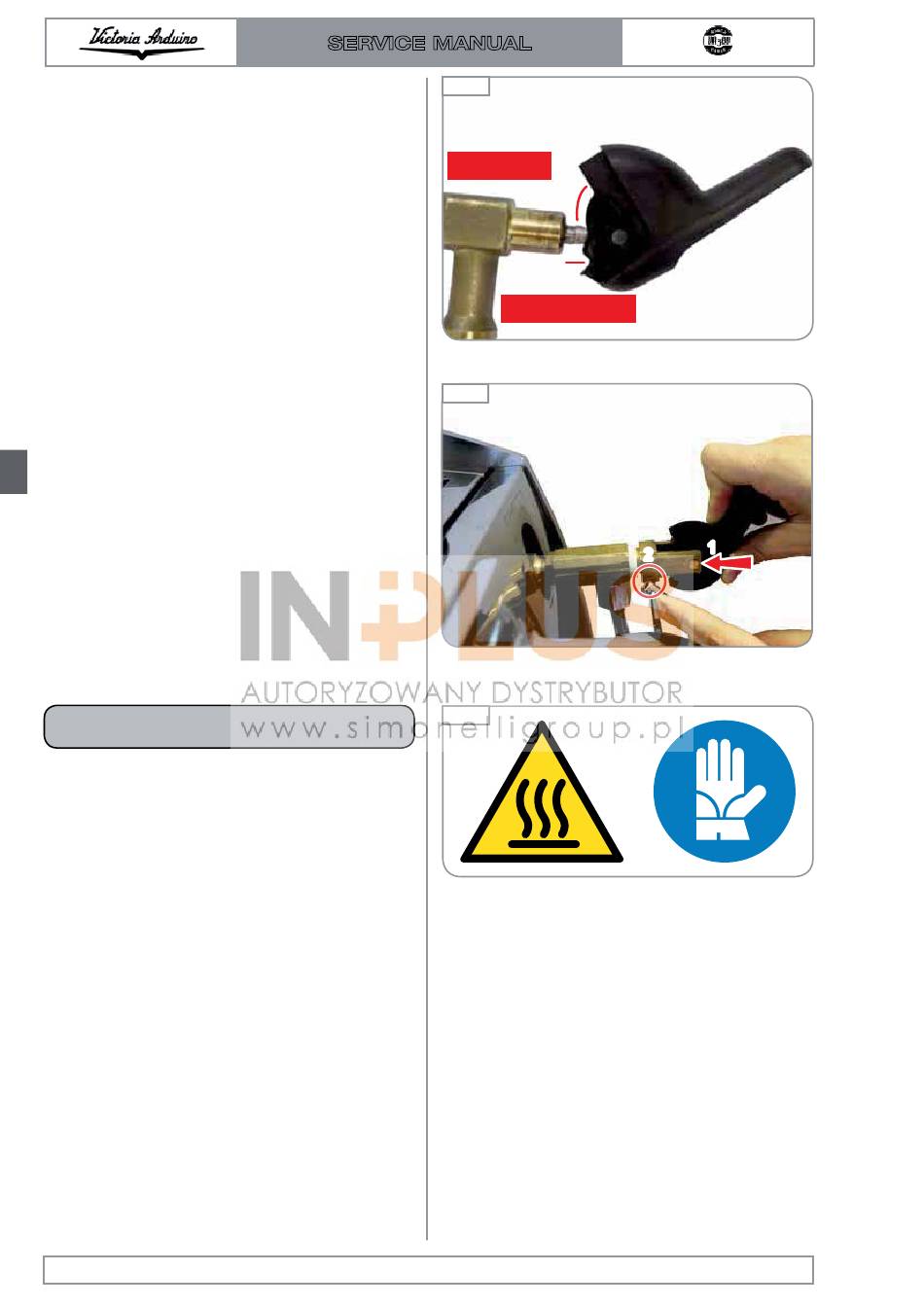

The correct position of the lever with respect
to the piston is shown in the picture and is the
groove in the middle of the lever.
When fixing the screw that holds the lever on the
stream nozzle it is necessary to.
1 Lightly press the lever.
2 Pull the screw with a 3 mm Allen wrench
keeping the lever pressed.
In this way there is a perfect balance between
a steam nozzle that is excessively soft and one
that is rigid.
WARNING
This operation must be carried out with the
machine on to set up the steam lever per-
fectly.
7.24
SERVICE MANUAL
Fig. 258
MANUAL
Fig. 259
Fig. 260
CONTINOUS
2 2
