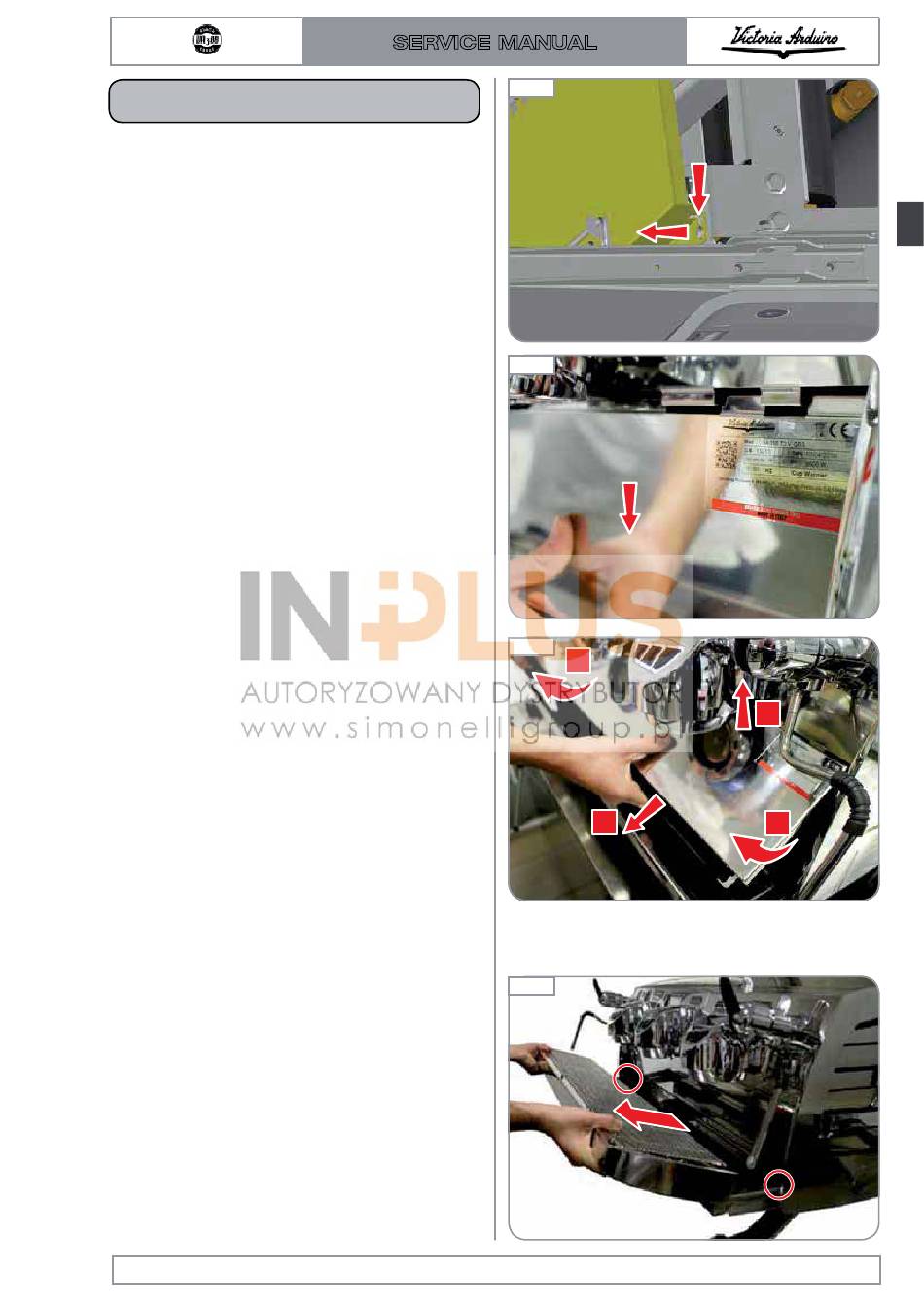

NOTE
Thanks to the shape of the panel, it is unnec-
essary to loosen the screws completely.
3 Lower the panel to free it from the fixing
screws.
4 To remove the panel complete, lift it up, turn
it and remove.
3.4 REMOVING THE GROUP
COVER
To access the groups:
1 Remove the lower front panel.
Edition 01 of 08/2017
SERVICE MANUAL
Fig. 69
Fig. 70
Fig. 71
Fig. 72
2
3
1
2
3.5
