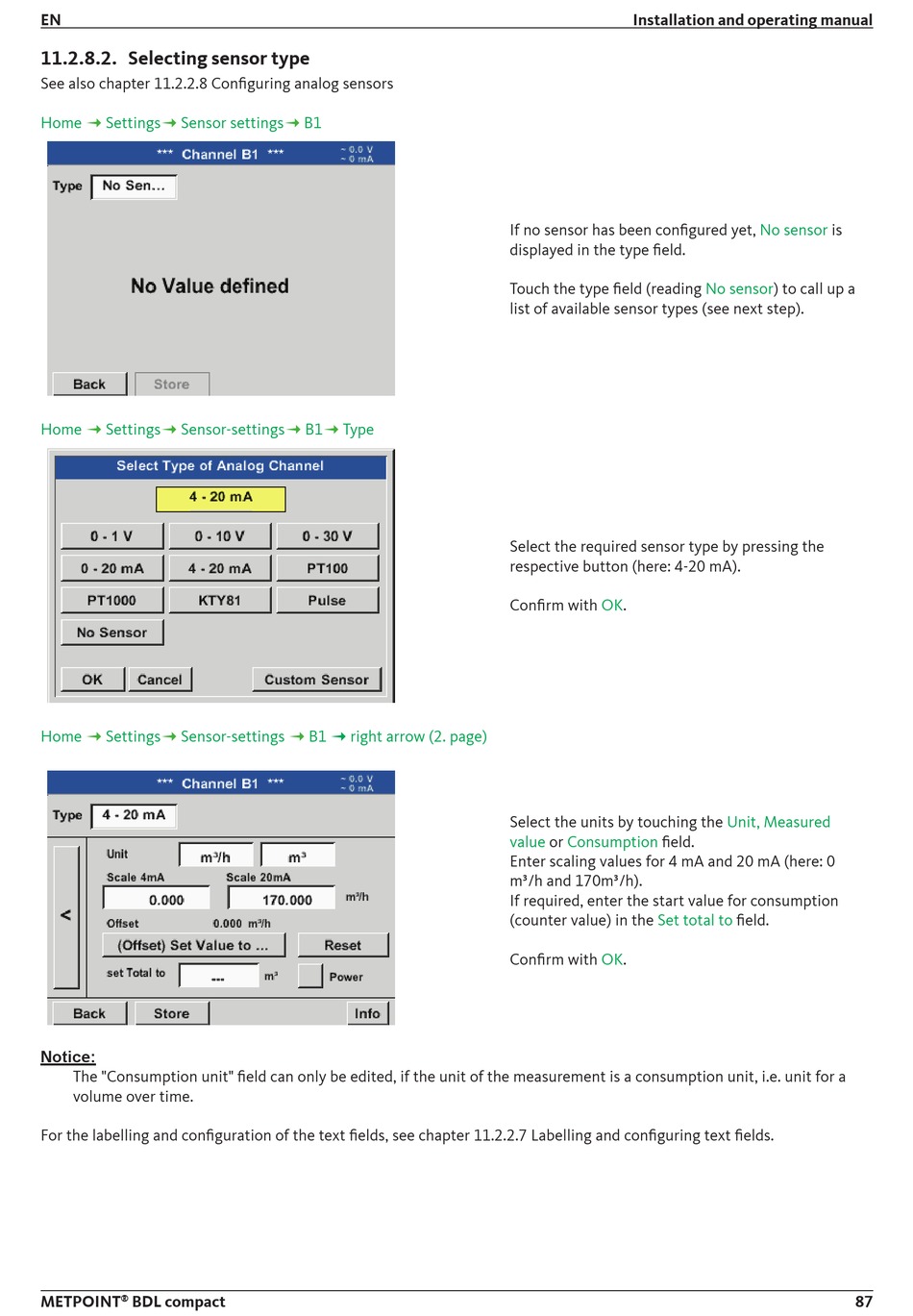

11.2.8.2. Selecting sensor type

See also chapter 11.2.2.8 Configuring analog sensors
Home  Settings Sensor
Home  Settings Sensor-settings B1
Home  Settings Sensor-settings
Notice:
The "Consumption unit" field can only be edited, if the unit of the measurement is a consumption unit, i.e. unit for a
volume over time.
For the labelling and configuration of the text fields, see chapter 11.2.2.7 Labelling and configuring text fields.
METPOINT BDL compact
®
settings B1
Type
 B1  right arrow (2. page)
Installation and operating manual
If no sensor has been configured yet, No sensor
displayed in the type field.
Touch the type field (reading No
list of available sensor types (see next step).
Select the required sensor type by pressing the
respective button (here: 4-20 mA).
Confirm with OK.
Select the units by touching the
value or Consumption field.
Enter scaling values for 4 mA and 20 mA (here: 0
m³/h and 170m³/h).
If required, enter the start value for consumption
(counter value) in the Set total to
Confirm with OK.
is
sensor) to call up a
Unit, Measured
field.
