Installation and operating manual

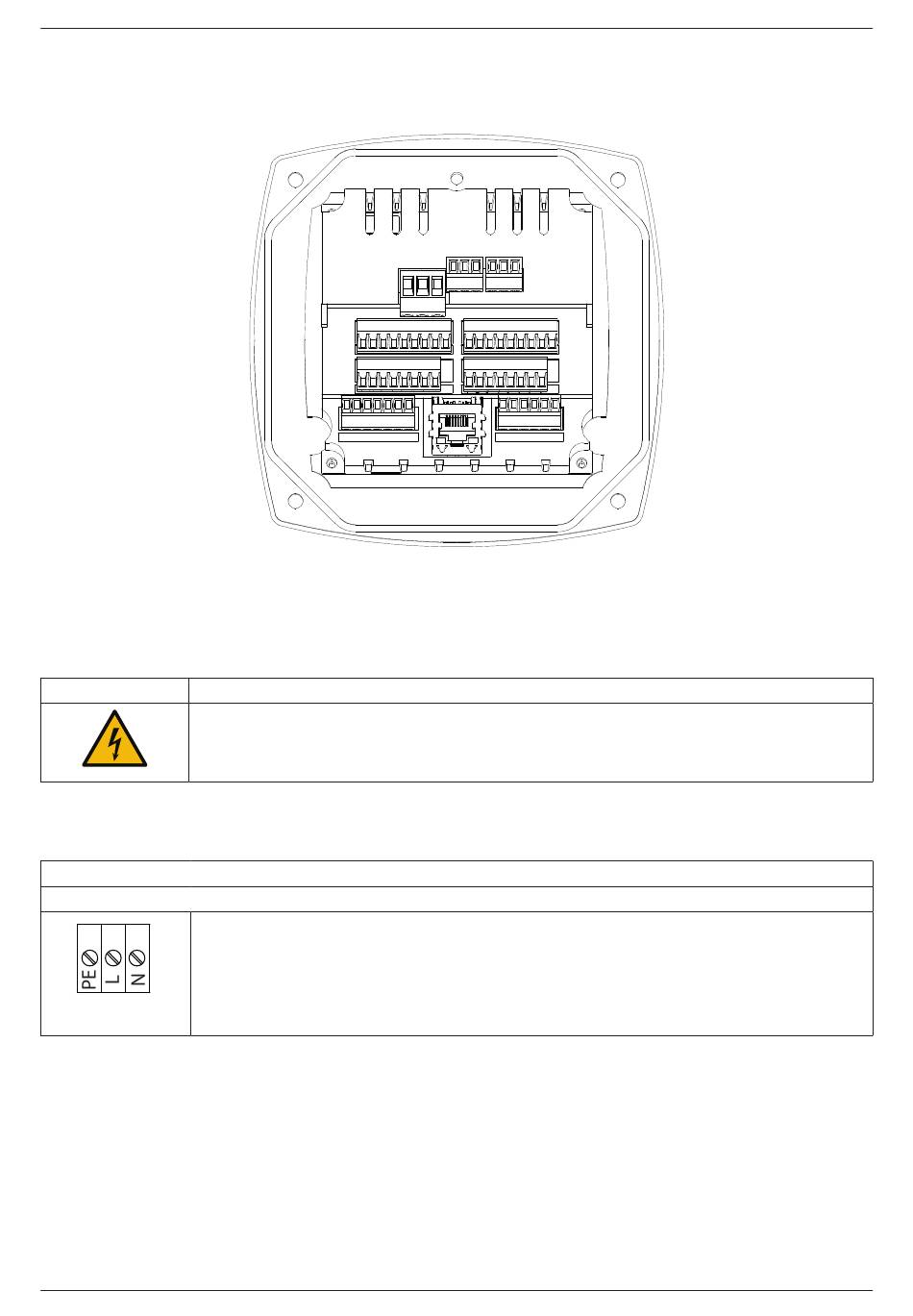

9. Terminal assignment and wiring diagram of METPOINT
Connections at rear of device
All connections at the rear of the device are designed as pluggable terminal blocks. Instructions for connection:
• Wire cross-section for power mains, plug C: 0.75 - 2.5 mm
• Wire cross-section for alarm contacts, plugs A / B: 0.14 - 1.5 mm
• Wire cross-section for sensors: 0.14 - 1.5 mm
DANGER! Mains voltage
Incorrect connection of the device to the power mains can lead to serious or even fatal injury and
cause malfunction of the METPOINT

9.1. Terminal assignment connector "C" (supply voltage)

Input voltage range: 85 ... 264 V AC / 47 ... 63 Hz / 1 Ph / PE
Wire cross-section: 0.75 - 2.5 mm2 / AWG12 - AWG24
1 2 3
1 = PE = protective earth conductor
2 = L = phase L
3 = N = neural conductor
C
18
C B A
1 2 3 1 2 3
PE L N
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
B1
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
A1
1 2 3 4 5 6 7 1 2 3 4 5 6
1 2 3 4 5 6 7 1 2 3 4 5 6
D
/ AWG12 - AWG24
2
/ AWG16 - AWG28
2
/ AWG16 - AWG28
2
BDL compact.
®
BDL compact
®
B2
A2
E
METPOINT
EN
BDL compact
®
