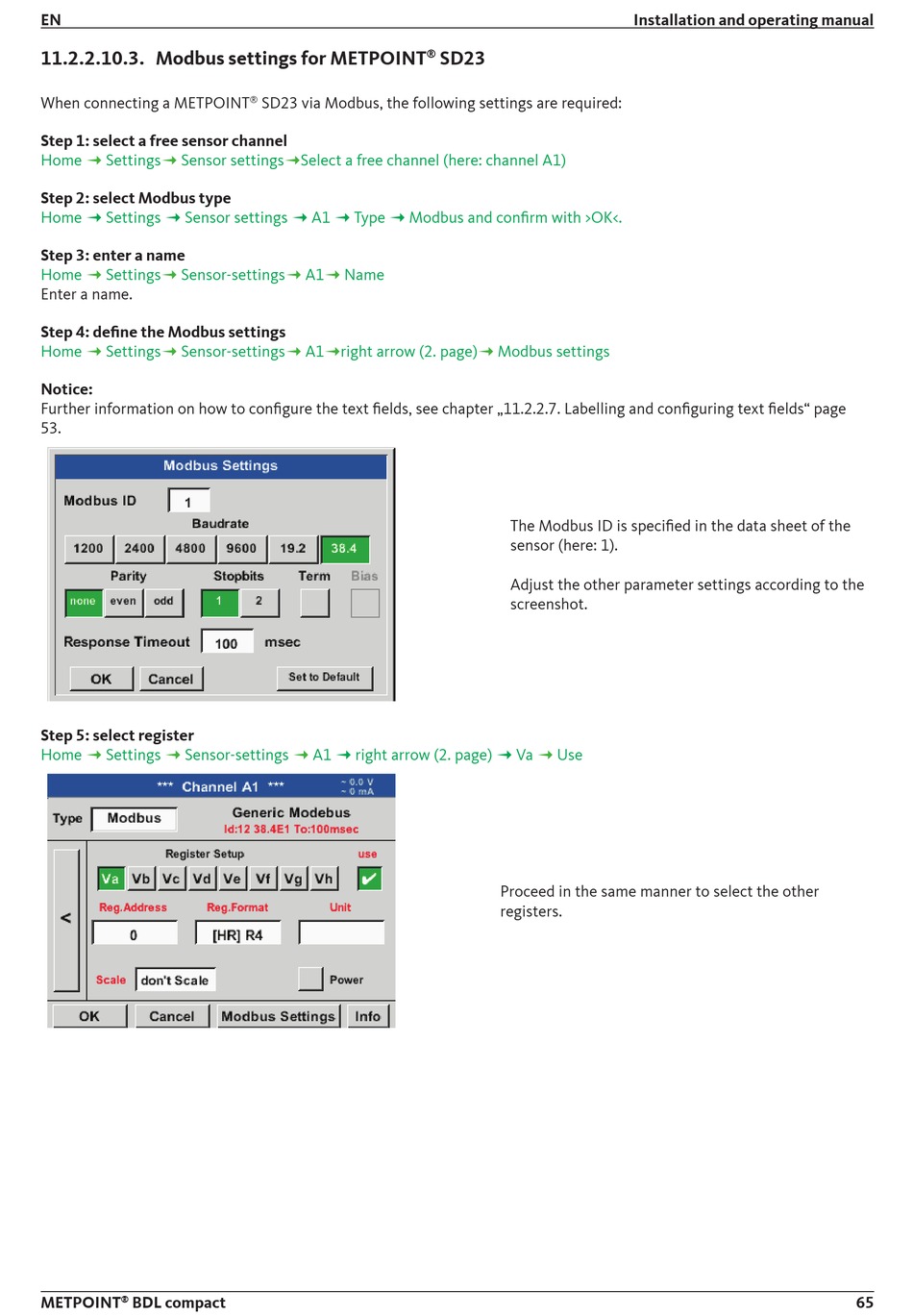

11.2.2.10.3. Modbus settings for METPOINT
When connecting a METPOINT
Step 1: select a free sensor channel
Home  Settings Sensor settingsSelect a free channel (here: channel A1)
Step 2: select Modbus type
Home  Settings  Sensor settings  A1  Type  Modbus and confirm with >OK<.
Step 3: enter a name
 Settings Sensor-settings A1
Home
Enter a name.
Step 4: define the Modbus settings
 Settings Sensor-settings
Home
Notice:
Further information on how to configure the text fields, see chapter „11.2.2.7. Labelling and configuring text fields" page
53.
Step 5: select register
 
Home Settings Sensor-settings
METPOINT BDL compact
®
SD23 via Modbus, the following settings are required:
®
Name
A1right arrow (2.
 A1  right arrow (2. page)  Va
SD23
®
page) Modbus settings
The Modbus ID is specified in the data sheet of the
sensor (here: 1).
Adjust the other parameter settings according to the
screenshot.

Use
Proceed in the same manner to select the other
registers.
