Installation and operating manual

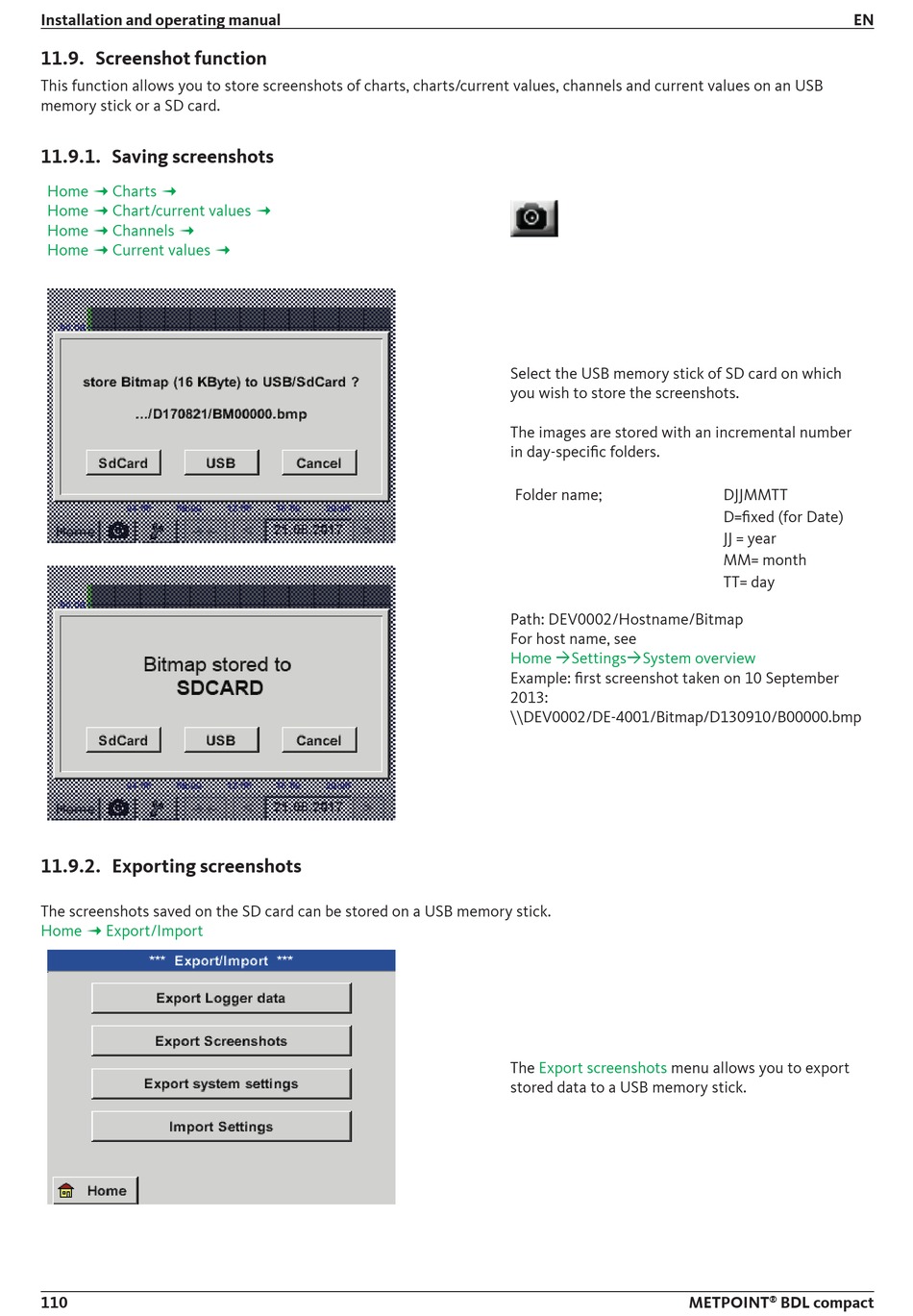

11.9. Screenshot function

This function allows you to store screenshots of charts, charts/current values, channels and current values on an USB
memory stick or a SD card.

11.9.1. Saving screenshots

Home  Charts 
Home  Chart/current values 
Home  Channels 
Home  Current values 

11.9.2. Exporting screenshots

The screenshots saved on the SD card can be stored on a USB memory stick.
Home  Export/Import
110
Select the USB memory stick of SD card on which
you wish to store the screenshots.
The images are stored with an incremental number
in day-specific folders.
Folder name;
Path: DEV0002/Hostname/Bitmap
For host name, see
Home SettingsSystem overview
Example: first screenshot taken on 10 September
2013:
\\DEV0002/DE-4001/Bitmap/D130910/B00000.bmp
The Export screenshots menu allows you to export
stored data to a USB memory stick.
EN
DJJMMTT
D=fixed (for Date)
JJ = year
MM= month
TT= day
METPOINT BDL compact
®
