Beko METPOINT BDL portable Instructions For Installation And Operation Manual

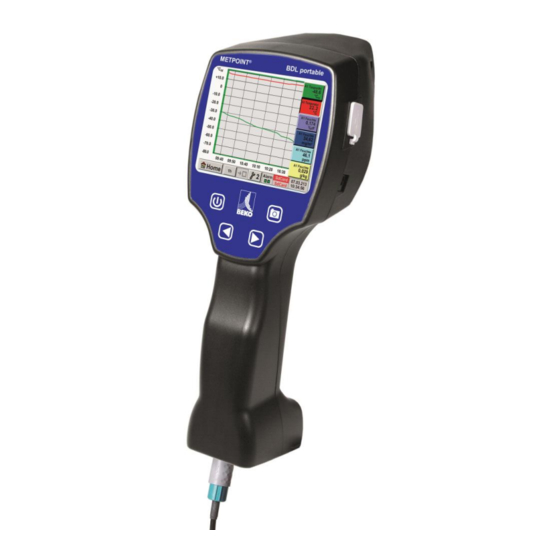

Mobile hand-held measuring device
Hide thumbs Also See for METPOINT BDL portable:
Table of Contents

Advertisement

Quick Links

Download this manual
EN-US - english
Instructions for installation and operation
Mobile hand-held measuring device
METPOINT
BDL portable
®
