7. Dimensions and mounting

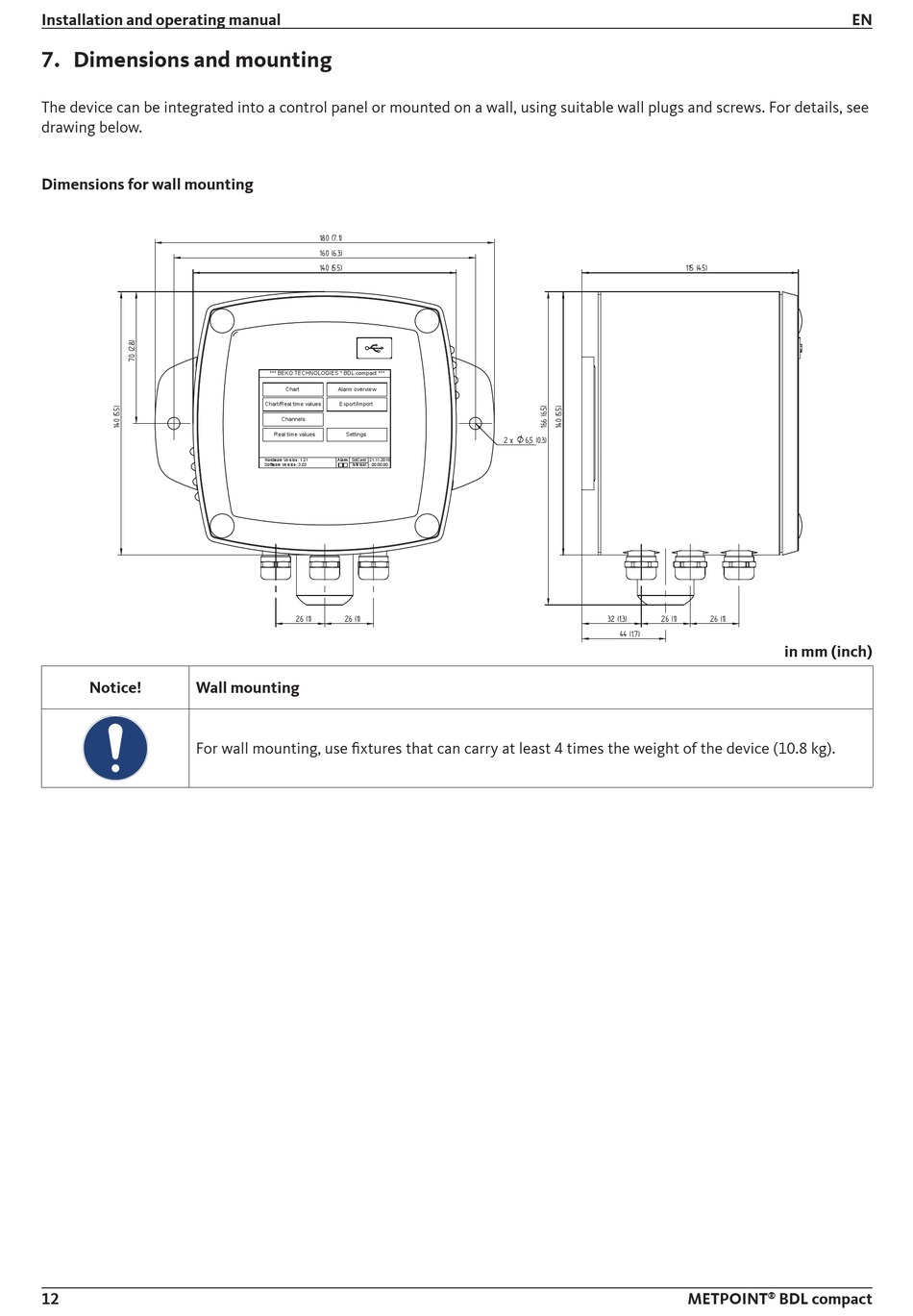

The device can be integrated into a control panel or mounted on a wall, using suitable wall plugs and screws. For details, see
drawing below.
Dimensions for wall mounting
Notice! Wall mounting
For wall mounting, use fixtures that can carry at least 4 times the weight of the device (10.8 kg).
