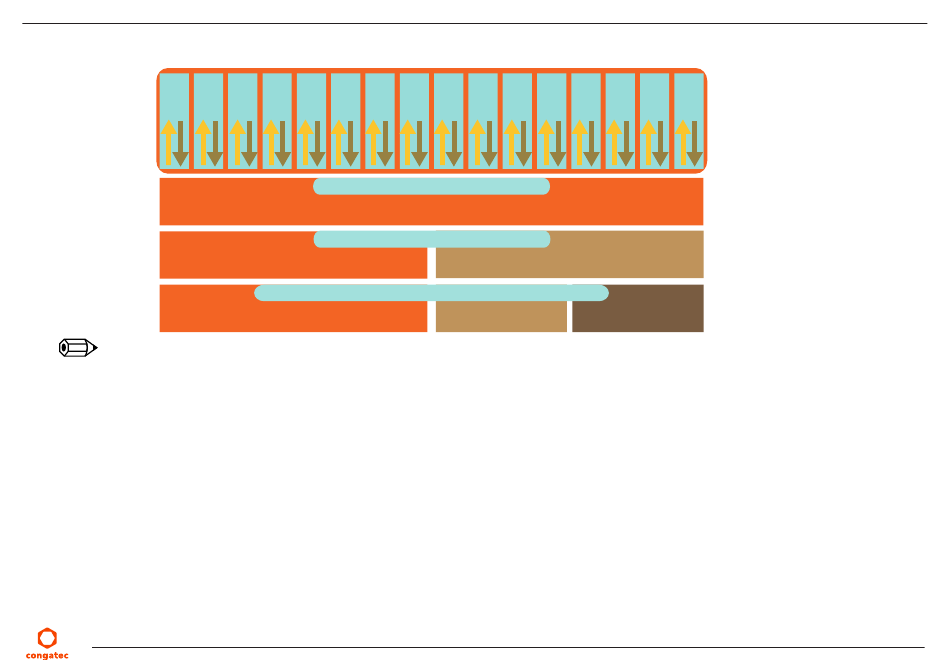

The possible configurations are 1 x16 link (default), 2 x8 links or 1 x8 + 2 x4 links as shown in the diagram below:
PEG PEG
LANE LANE
0
Note
The PEG lanes can not be linked together with the PCI Express lanes discussed in section 6.1.1 "PCI Express™".
6.1.3

Display Interfaces

The conga-TS175 supports the following:
• up to three DP++ (DP/HDMI/DVI)
• single- or dual-channel LVDS
• VGA
• three independent displays
Table 8 shows the supported display combinations and resolutions.
Copyright © 2017 congatec AG
PEG PEG PEG PEG PEG
LANE LANE LANE LANE LANE
1 2 3 4 5 6
Single Link (1x16 Link)
Double Links (2x8 Links)
Link 1
Triple Links (1x8 + 2x4 Links)
Link 1
PEG PEG PEG PEG PEG PEG
LANE LANE LANE LANE LANE LANE
7 8 9 10 11 12
Link 1
Link 2
Link 2
TSKLm16
PEG PEG PEG
LANE LANE LANE
13 14 15
Link 3
