Onboard Temperature Sensors

The conga-TS175 features two sensors on the top side of the module and two optional DRAM sensors (build-time) on the top and bottom side
of the module.
Top-Side (CPU Temperature & Board Temperature Sensor) :
The CPU temperature sensor (T00) is located in the CPU (U1). This sensor measures the CPU temperature and is defined in CGOS API as
CGOS_TEMP_CPU.
The board temperature sensor (T01) is located in the congatec Board Controller (U22). This sensor measures the board temperature and is
defined in CGOS API as CGOS_TEMP_BOARD.

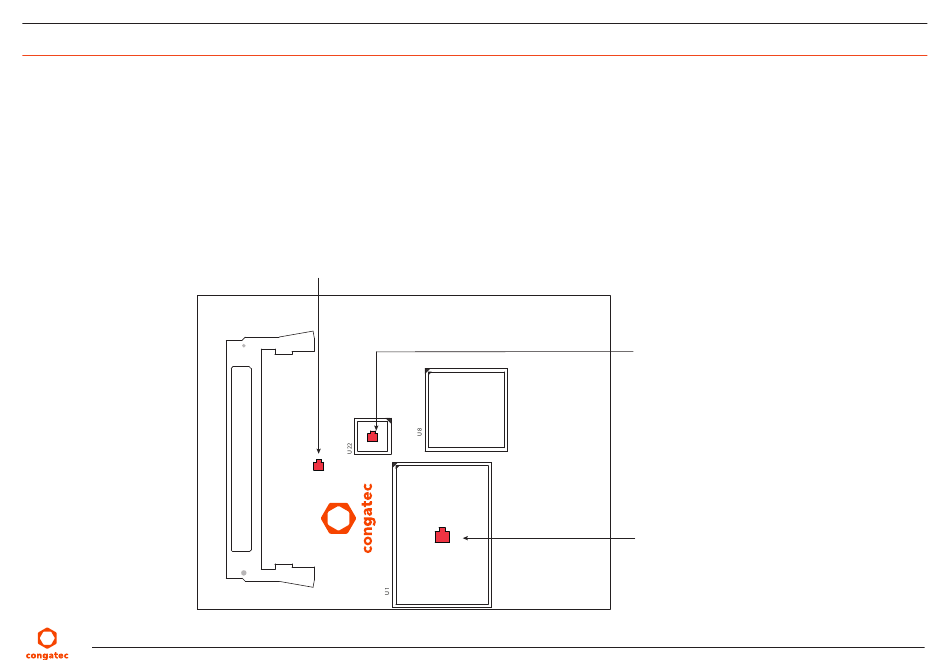

The sensor locations are shown below:
Copyright © 2017 congatec AG
Optional DRAM Sensor Location
(BOM option)
T01
T00
Board Controller Temp. Sensor
CPU Temperature Sensor
