Figure 5 Drainage Tubing - Metrohm 883 Basic IC plus Manual

3.6 Installations on the rear of the instrument
1
2
3
4
5
6

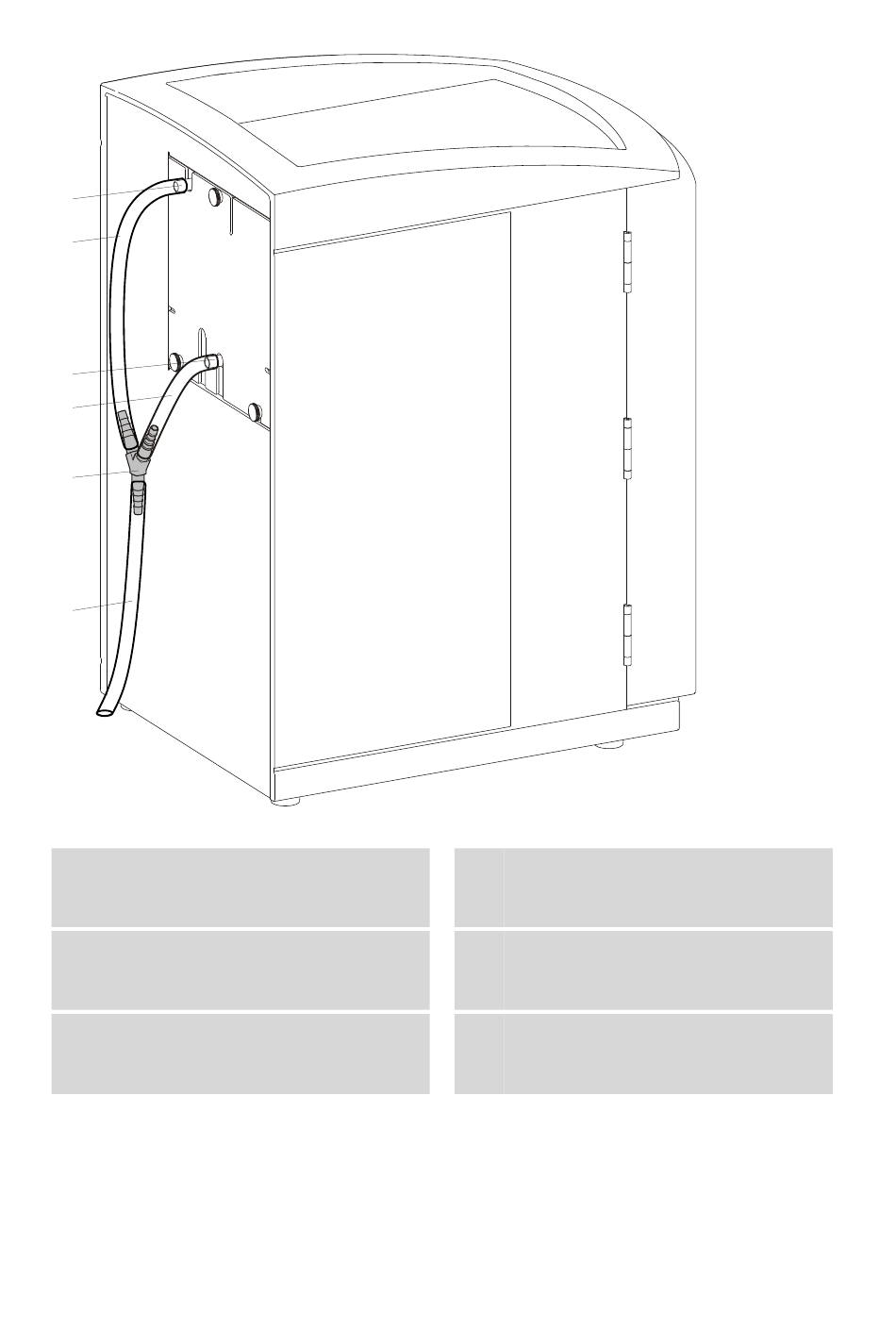

Figure 5 Drainage tubing
1 Drainage tubing connection
For draining leaked liquid from the bottle
holder.
3 Drainage tubing connection
For draining leaked liquid from the detector
chamber.
5 Y connector (6.1807.010)
For connecting the two drainage tubings
2
(5- ) and (5-
20
￭￭￭￭￭￭￭￭
4
).
2 Silicone tubing (6.1816.020)
Section. For draining leaked liquid from the
bottle holder.
4 Silicone tubing (6.1816.020)
Section. For draining leaked liquid from the
detector chamber.
6 Silicone tubing (6.1816.020)
Section. Conveys the leaked liquid to the
waste container.
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
883 Basic IC plus
