3.14 Peristaltic pump
3.14.2

Mode of operation for the peristaltic pump

1 Contact pressure lever
3 Cartridge holder
5 Rollers
7 Mounting bolt
42
￭￭￭￭￭￭￭￭
When liquid starts flowing, raise the contact pressure lever by an
￭
additional two ratchet increments.
The contact pressure is now set optimally.
The peristaltic pump is used for pumping sample and auxiliary solutions. It
can rotate in both directions.
The peristaltic pump pumps liquids based on the principle of displace-
ment. The pump tubing is clamped between the rollers (14-5) and the
tubing cartridge (14-2). During operation, the peristaltic pump drive
rotates the roller hub (14-6), so that the rollers (14-5) advance the liquid
in the pump tubing.

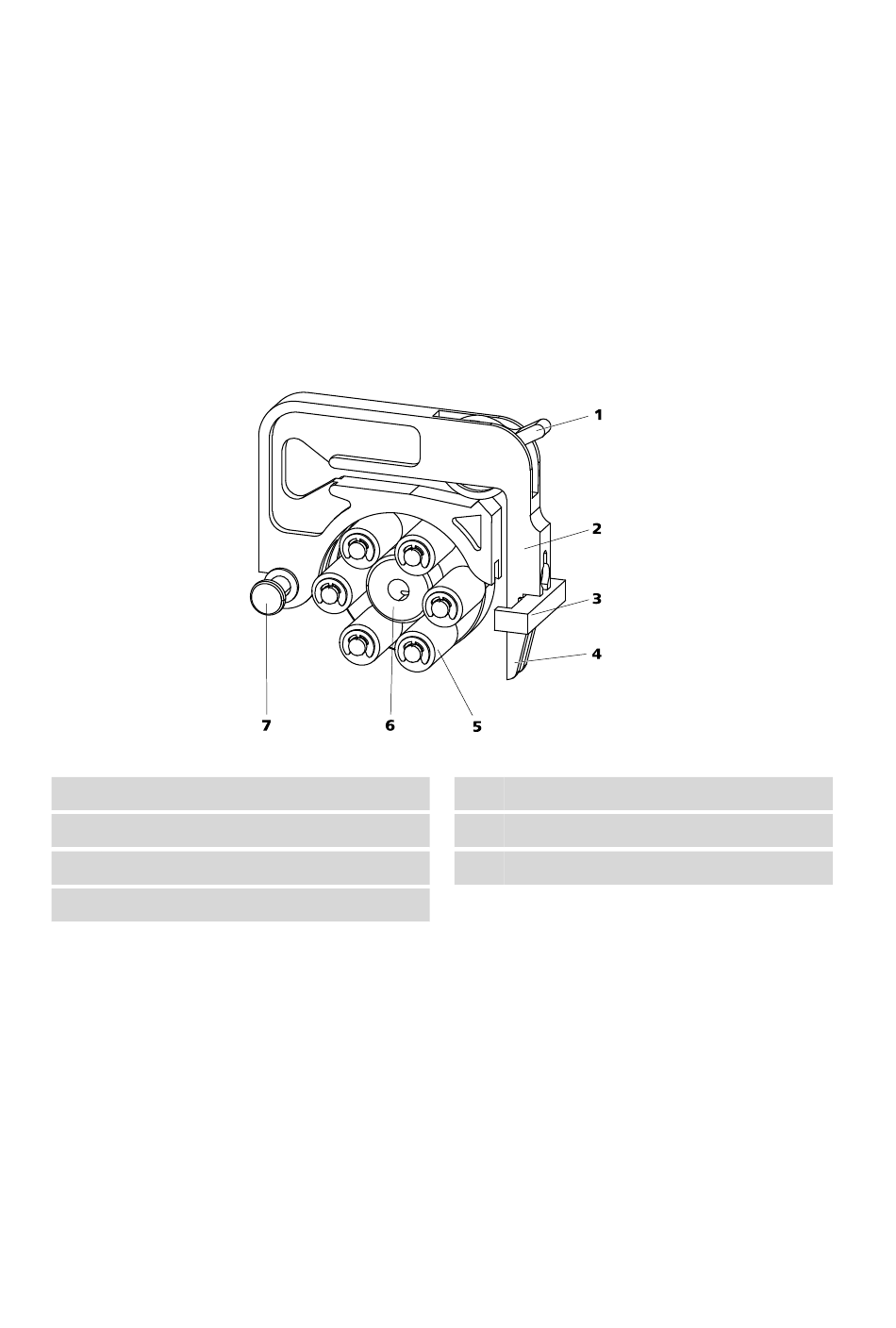

Figure 14 Peristaltic pump
2 Tubing cartridge (6.2755.000)
4 Snap-action lever
6 Roller hub
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
883 Basic IC plus
