Metrohm 801 Manual

Stirrer
Hide thumbs Also See for 801:
Table of Contents

Advertisement

Quick Links

Download this manual
801 Stirrer
Manual
8.801.8001EN / 2019-11-27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metrohm 801

Summary of Contents for Metrohm 801

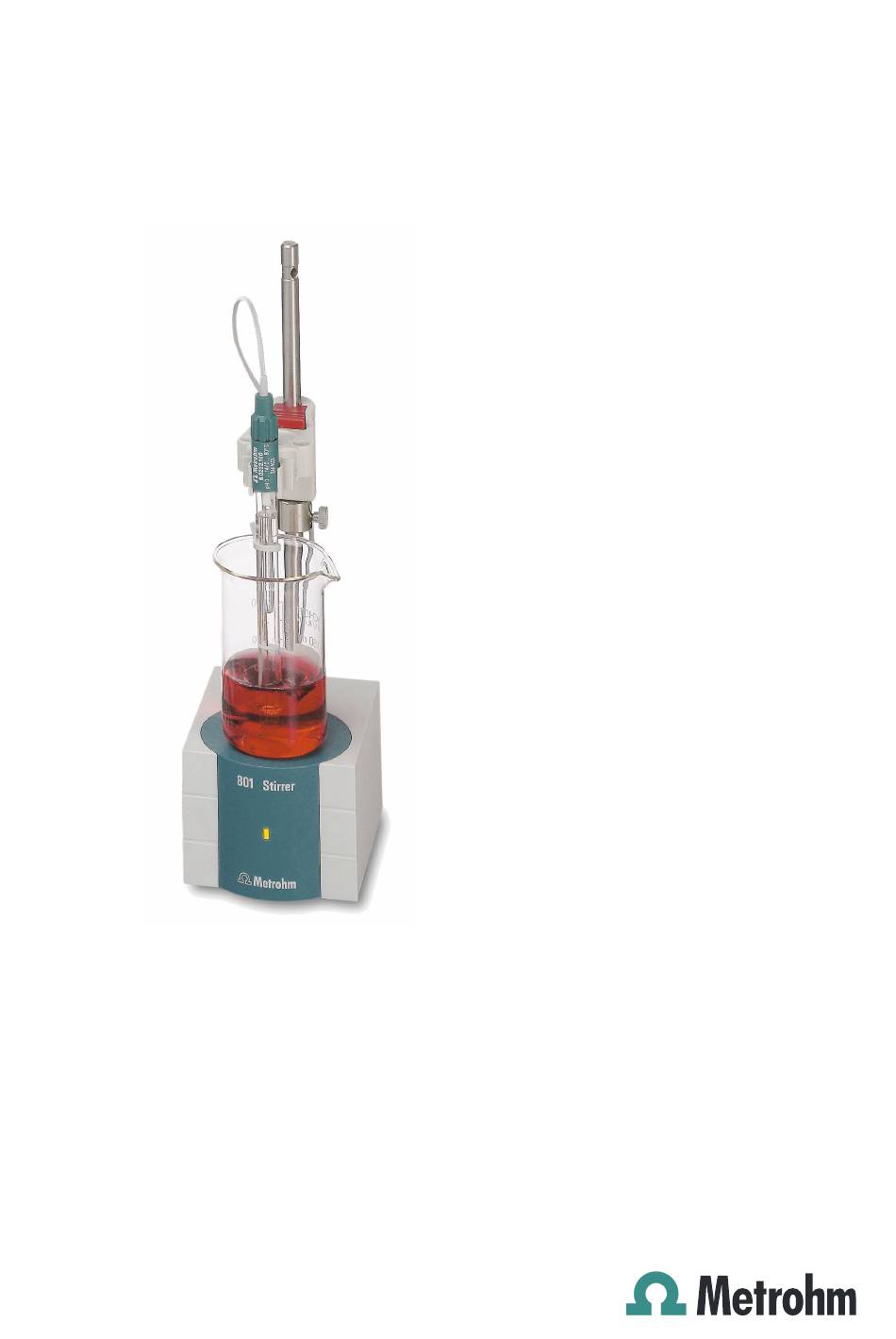

  • Page 1 801 Stirrer Manual 8.801.8001EN / 2019-11-27...
  • Page 3 Metrohm AG CH-9100 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com 801 Stirrer Manual 8.801.8001EN / 2019-11-27...
  • Page 4 Technical Communication Metrohm AG CH-9100 Herisau techcom@metrohm.com This documentation is protected by copyright. All rights reserved. This documentation has been prepared with great care. However, errors can never be entirely ruled out. Please send comments regarding possible errors to the address above.

  • Page 5: Table Of Contents

    3.1.1 Packaging ................6 3.1.2 Checks ..................6 3.1.3 Location .................. 6 Mounting the 801 Stirrer ............. 7 Connecting the 801 Stirrer ..........9 4 Technical specifications Rotational speed ..............11 Power supply ..............11 Ambient temperature ............11 Dimensions ................11 Material ................
  • Page 6 Table of figures Table of figures Figure 1 Front 801 Stirrer ................5 Figure 2 Rear 801 Stirrer ................. 5 Figure 3 Connecting the 801 Stirrer ..............9 Figure 4 Connecting the Dosino to the 801 Stirrer......... 10 ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 7: Introduction

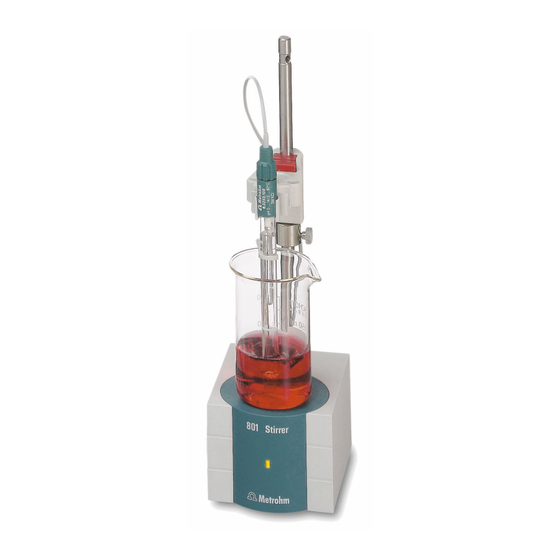

    1 Introduction 1 Introduction Instrument description The magnetic stirrer 801 Stirrer including base plate, support rod and elec- trode holder supplements the Titrino plus, Titrandos, Sample Processors, 805 Dosimats and 780/781 pH Meter. It is directly connected to an analysis device via an MSB connection cable.

  • Page 8: Safety Instructions

    The electrical safety when working with the instrument is ensured as part of the international standard IEC 61010. WARNING Only personnel qualified by Metrohm are authorized to carry out service work on electronic components. WARNING Never open the housing of the instrument. The instrument could be damaged by this.

  • Page 9: Working With Liquids

    Set up the instrument in a well-ventilated location (e.g. fume cup- ￭ board). Keep all sources of flame far from the workplace. ￭ Clean up spilled liquids and solids immediately. ￭ Follow the safety instructions of the chemical manufacturer. ￭ ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 10: Recycling And Disposal

    The correct disposal of your old instrument will help to prevent negative effects on the environment and public health. More details about the disposal of your old instrument can be obtained from your local authorities, from waste disposal companies or from your local dealer. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 11: Overview Of The Instrument

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument 2 Overview of the instrument Figure 1 Front 801 Stirrer LED function display Lights up, when the stirrer is switched on. M S B 3 .8 0 1 .3 0 Figure 2 Rear 801 Stirrer...

  • Page 12: Installation

    Place the instrument in a location of the laboratory which is suitable for operation and free of vibrations and which provides protection against corrosive atmosphere and contamination by chemicals. The instrument should be protected against excessive temperature fluctua- tions and direct sunlight. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 13: Mounting The 801 Stirrer

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation Mounting the 801 Stirrer Mounting the stand 6.2001.060 6.2016.070 Mount the stand as follows: 1 Screw the 6.2001.060 stand plate with the accompanying four screws tightly to the bottom of the instrument. 2 Screw the 6.2016.070 stand plate with the hexagon screw (hexagon key supplied) firmly to the stand plate.
  • Page 14 ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3.2 Mounting the 801 Stirrer Fastening the magnetic stirrer Fasten the magnetic stirrer as follows: 1 Attach the magnetic stirrer on the support rod and push it down- wards. 2 With the clamping screw, fix the positioning height or the swing position of the magnetic stirrer.

  • Page 15: Connecting The 801 Stirrer

    4 Fix the position of the electrode holder with the aid of the clamping ring. Connecting the 801 Stirrer Connect the magnetic stirrer as follows: 1 Exit the control software. 2 Connect the connection cable of the magnetic stirrer to one of the sockets marked with MSB on the rear of the control device.

  • Page 16: Figure 4 Connecting The Dosino To The 801 Stirrer

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3.3 Connecting the 801 Stirrer Figure 4 Connecting the Dosino to the 801 Stirrer. 4 Start the control software. ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 17: Technical Specifications

    Nominal function +5…+45 °C range (at a maximum of 85% humidity) Storage –20…+60 °C Transport –40…+60 °C Dimensions Width 90 mm Height (without 70 mm stand) Height (with 430 mm stand) Depth 140 mm Weight 613 g ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 18: Material

    ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4.5 Material Material Polybutylene terephthalate (PBT) ￭￭￭￭￭￭￭￭ 801 Stirrer...

  • Page 19: Accessories

    Downloading the accessories list 1 Enter https://www.metrohm.com/ into your Internet browser. 2 Enter the article number (e.g. 801) into the search field. The search result is displayed. 3 Click on the product. Detailed information regarding the product is shown on various tabs.
