Drainage tubing

889 IC Sample Center Basic
Set up the following tubing connections for the disposal of waste fluids:
General waste
Sample liquid that has not been injected is drained off through the left
tubing connector (see "Connecting the outlet tubing", page 20).

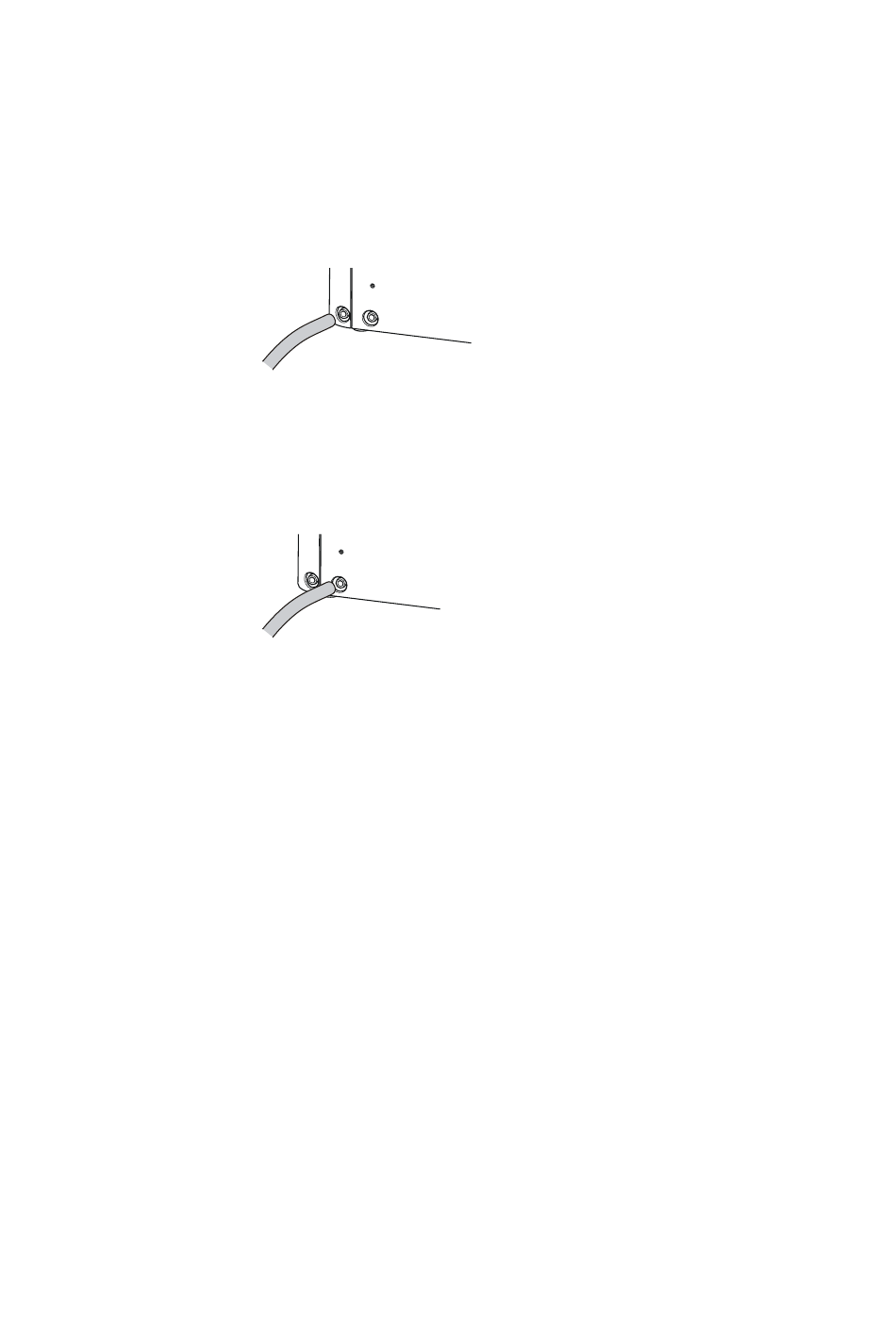

Figure 7 Mounting the outlet tubing
Condensation and leakage outlet
Leakage liquid and condensation water from the cooling module will be
channeled through the right-hand tubing connector (see "Connecting the
outlet tubing", page 20).
Figure 8 Mounting the leakage tubing
