Item
System Overview
Active Alarm

4.2.3 Monitoring

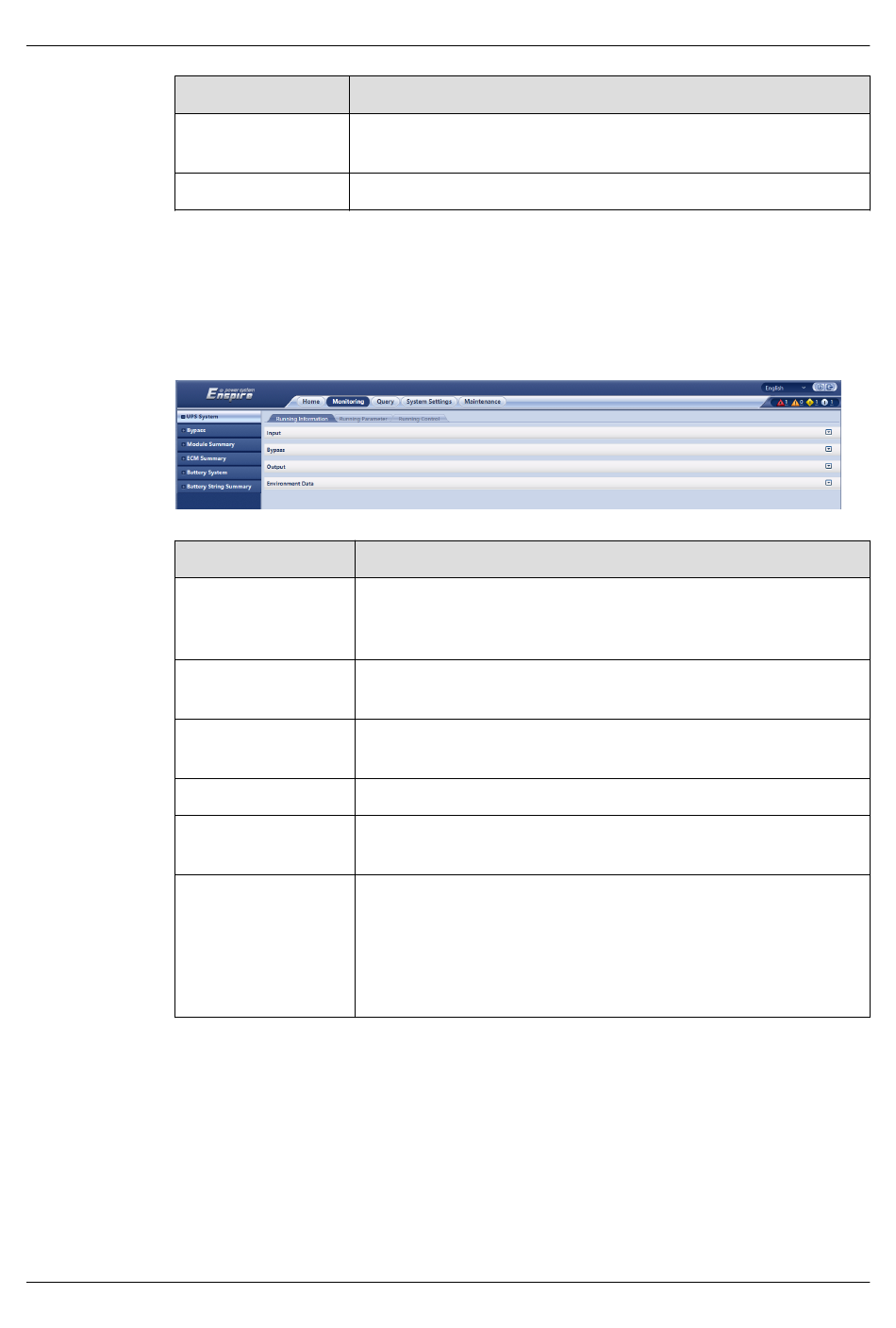

Figure 4-47 Monitoring
Item
UPS system
Bypass
Module Summary
ECM Summary
Battery System
Battery String
Summary
Issue 11 (2020-12-07)
Description
View the operation status of the mains input, bypass input,
battery and AC output of the system.
View the active alarms of the system.
Description
View Running Information of the UPS, set Running
Parameter for the UPS, and perform the Running Control
operation on the UPS.
View the bypass input Running Information and set
Running Parameter.
Query the module Running Information and set Running
Parameter.
Set Running Parameter for the ECM.
View the battery Running Information and set Running
Parameter.
NOTE
If Number of iBOXs is not 0 and the battery type is lead-acid
battery, Battery String Summary is displayed on the Monitoring
sreen.
Set parameters for the iBOX and iBAT connected to each
battery string.
