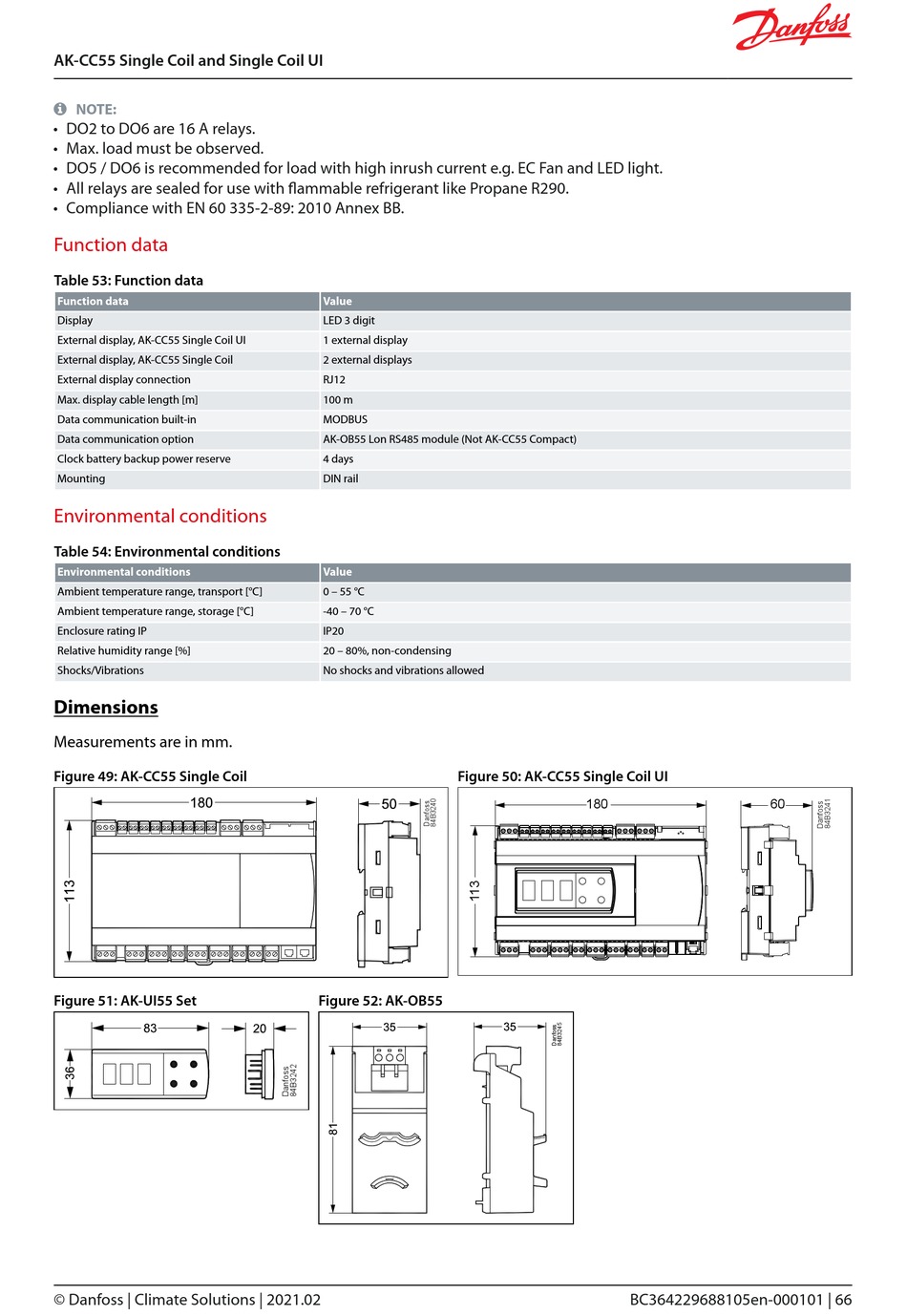

AK-CC55 Single Coil and Single Coil UI
 NOTE:
• DO2 to DO6 are 16 A relays.
• Max. load must be observed.
• DO5 / DO6 is recommended for load with high inrush current e.g. EC Fan and LED light.
• All relays are sealed for use with flammable refrigerant like Propane R290.
• Compliance with EN 60 335-2-89: 2010 Annex BB.

Function data

Table 53: Function data
Function data
Display
External display, AK-CC55 Single Coil UI
External display, AK-CC55 Single Coil
External display connection
Max. display cable length [m]
Data communication built-in
Data communication option
Clock battery backup power reserve
Mounting

Environmental conditions

Table 54: Environmental conditions
Environmental conditions
Ambient temperature range, transport [°C]
Ambient temperature range, storage [°C]
Enclosure rating IP
Relative humidity range [%]
Shocks/Vibrations

Dimensions

Measurements are in mm.
Figure 49: AK-CC55 Single Coil
Figure 51: AK-UI55 Set
© Danfoss | Climate Solutions | 2021.02
Value
LED 3 digit
1 external display
2 external displays
RJ12
100 m
MODBUS
AK-OB55 Lon RS485 module (Not AK-CC55 Compact)
4 days
DIN rail
Value
0 – 55 °C
-40 – 70 °C
IP20
20 – 80%, non-condensing
No shocks and vibrations allowed
Figure 50: AK-CC55 Single Coil UI
Figure 52: AK-OB55
180
BC364229688105en-000101 | 66
60
