AK-CC55 Single Coil and Single Coil UI

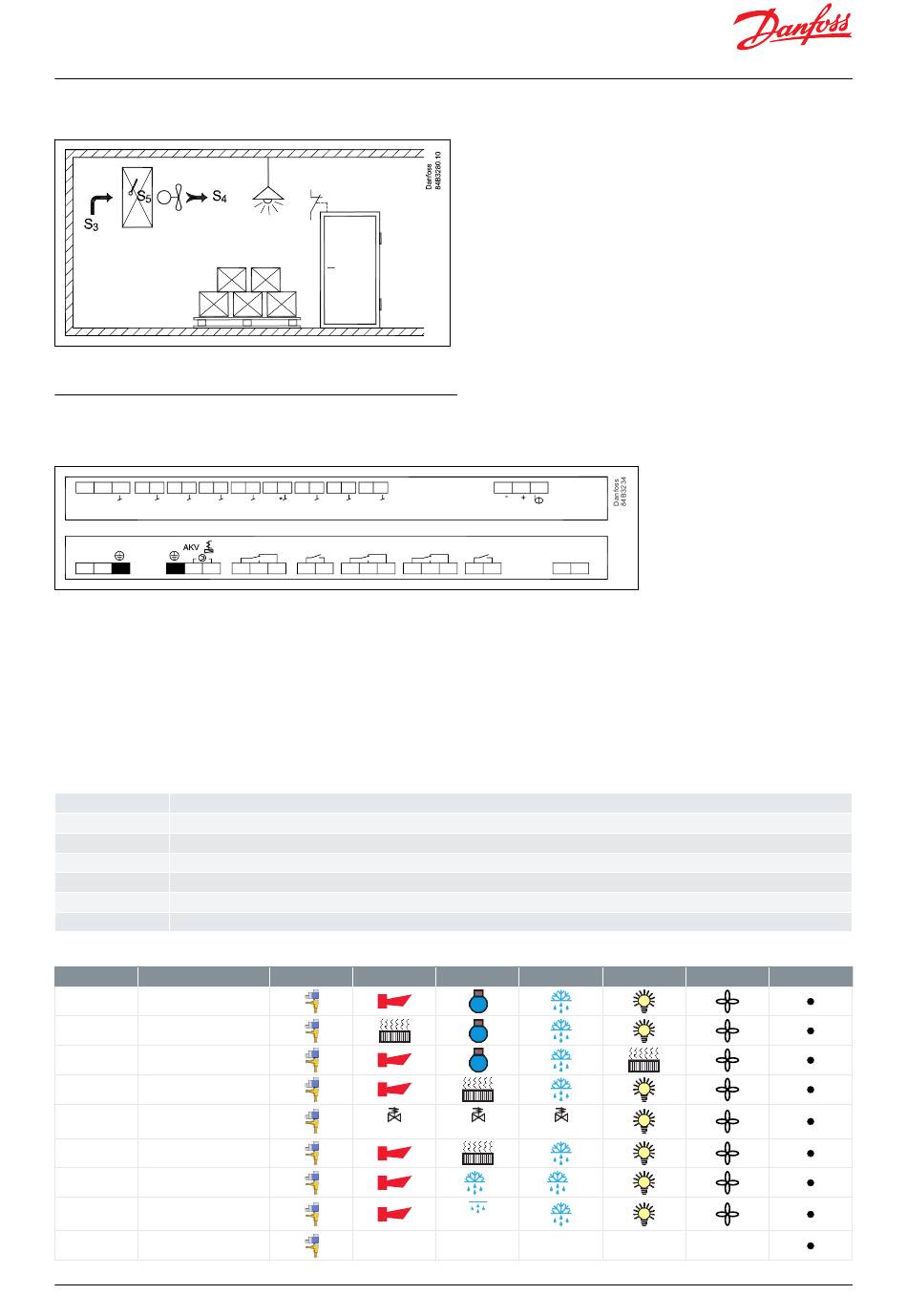

Figure 24: Cold room configuration with door and light
heat control function

AK-CC55 connections and application options

Upper and lower connection labels are laid out as shown in figure:
Figure 25: Electrical connections AK-CC55 Single Coil
40 41 42 43 44 45 46 47 48
5V s
AI2 AI3 AI4
AI1
115 - 230V AC
L N
1 2 3 7 8 9
AK-CC55 Single Coil is optimised for control of one expansion valve + different combinations of light, rail heat and
alarm relays. It has 6 Digital Outputs (DO), known as DO1 – DO6, one Analogue Output (AO), known as AO1, 6
Analogue Inputs (AI), known as AI1 – AI6, an input that can be used as either DI1 (Digital Input) or AI7 (Sensor Input),
and 2 Digital Inputs, known as DI2 - DI3. AI7 (DI1) can be configured as S5B defrost sensor in application 1-6 and
application 9.
DO1 will be configured for a liquid line solenoid valve if the analogue output AO1 is configured for control of a
stepper valve driver.
Table 8: The controller covers the following nine applications:
Application 1-3 Plugin cabinets. Cabinets with different output combinations of alarm, rail heat and light.
Application 4 Remote cabinet including alarm, rail heat, defrost, light and fan.
Application 5 Remote hot gas defrost with suction, drain and hot gas valve.
Application 6 Back-to-back cabinet with one evaporator.
Application 7 Back-to-back cabinet with two evaporators.
Application 8 Cold storage room with defrost and simple humidity control.
Application 9 Custom defined application, where the outputs can be configured according to custom requirements
Table 9: Application with digital and analogue output specification
No. Application description
1 Plug-in cabinet
2 Plug-in cabinet
3 Plug-in cabinet
4 Remote cabinet
5 Remote Hot gas defrost
6 Back-to-back cabinet
7 Back-to-back cabinet
8 Cold storage room
9 User def. config.
