AK-CC55 Single Coil and Single Coil UI
Replacing AK-CC 550 with AK-CC55
NOTE:
Be aware when exchanging an AK-CC 550 controller with a new AK-CC55 controller - new wiring principles!

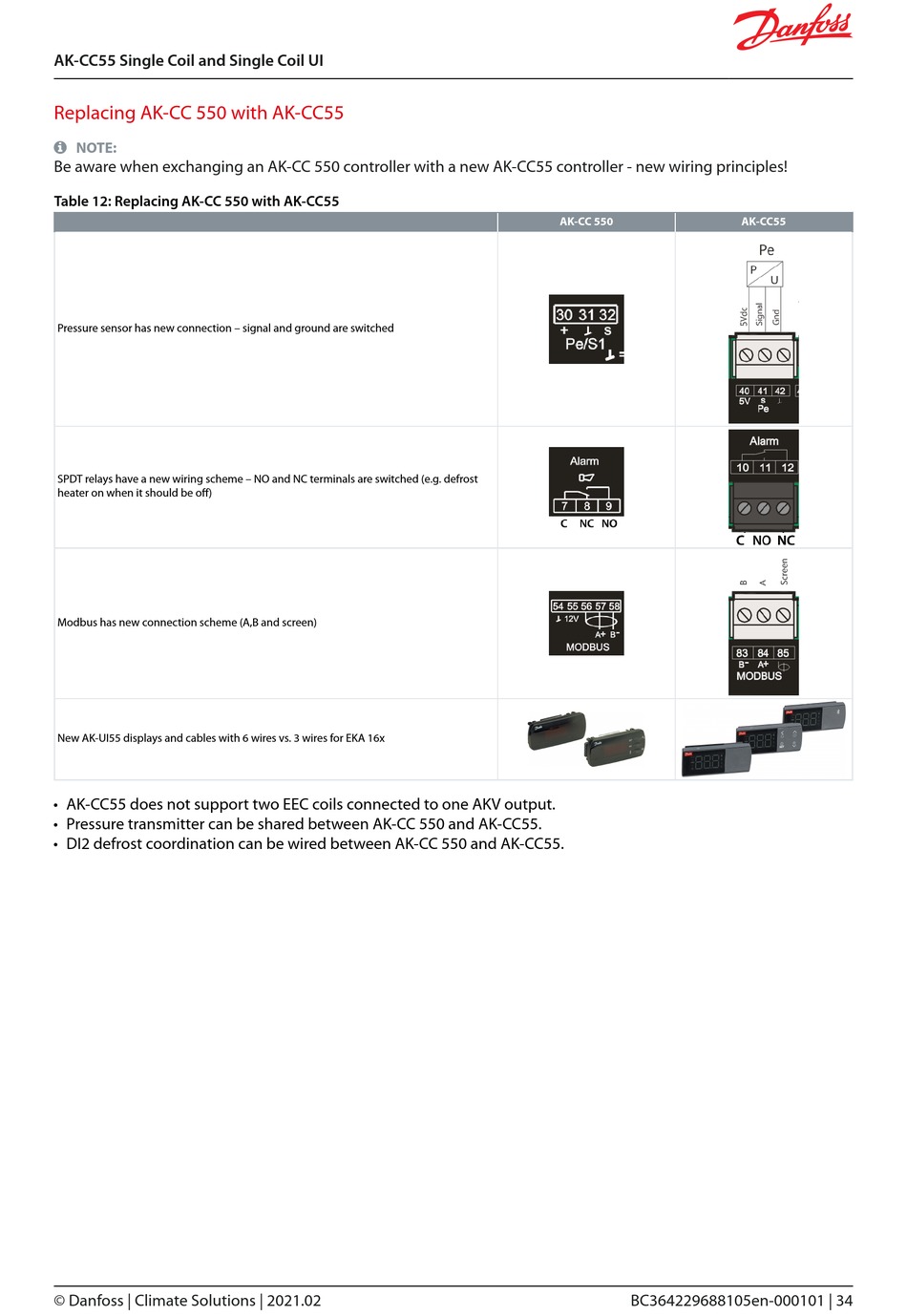

Table 12: Replacing AK-CC 550 with AK-CC55
Pressure sensor has new connection – signal and ground are switched
SPDT relays have a new wiring scheme – NO and NC terminals are switched (e.g. defrost
heater on when it should be off)
Modbus has new connection scheme (A,B and screen)
New AK-UI55 displays and cables with 6 wires vs. 3 wires for EKA 16x
• AK-CC55 does not support two EEC coils connected to one AKV output.
• Pressure transmitter can be shared between AK-CC 550 and AK-CC55.
• DI2 defrost coordination can be wired between AK-CC 550 and AK-CC55.
© Danfoss | Climate Solutions | 2021.02
AK-CC 550
BC364229688105en-000101 | 34
AK-CC55
