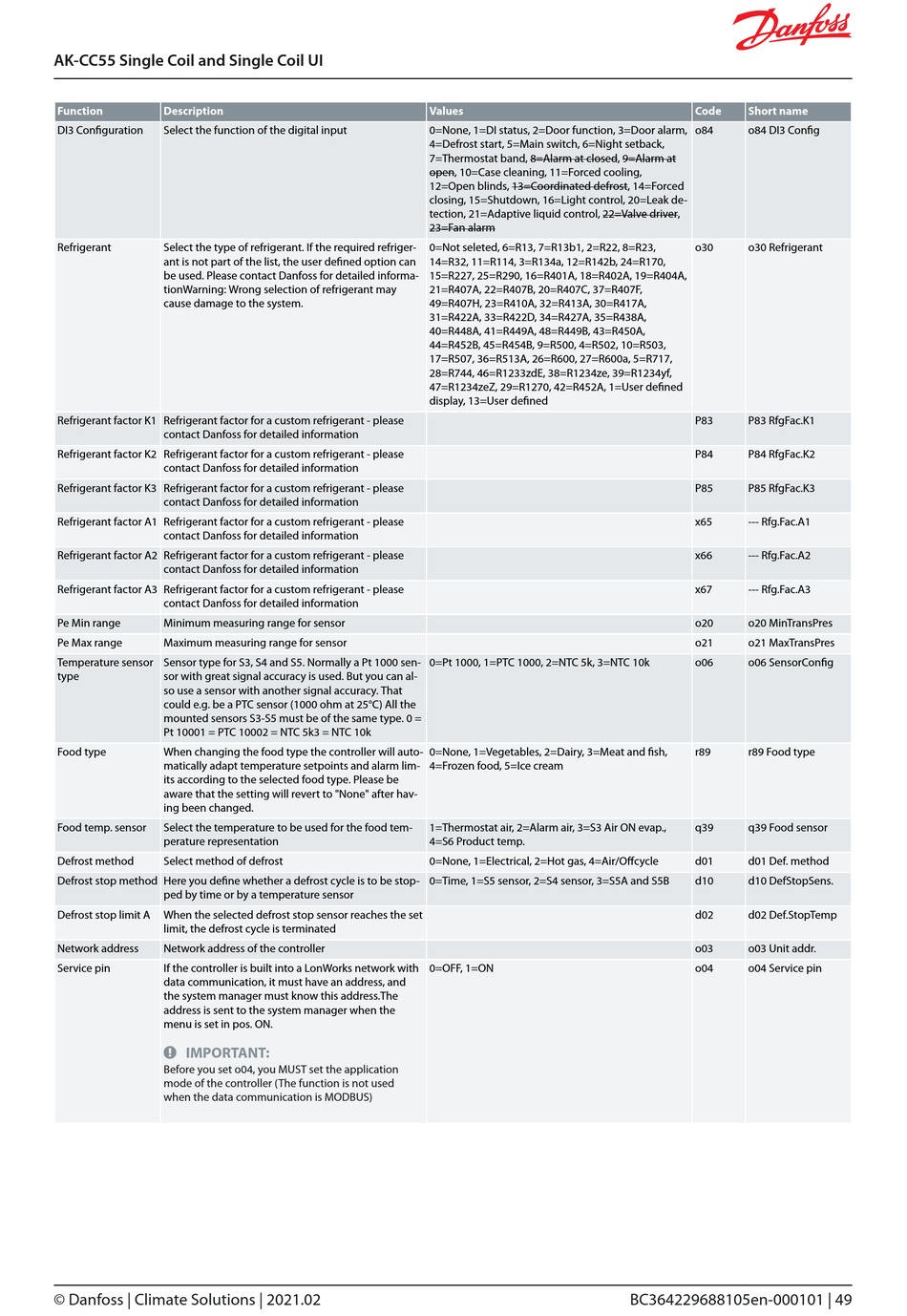

Danfoss AK-CC55 User Manual page 49

AK-CC55 Single Coil and Single Coil UI
Function Description
DI3 Configuration Select the function of the digital input
Refrigerant Select the type of refrigerant. If the required refriger-
ant is not part of the list, the user defined option can
be used. Please contact Danfoss for detailed informa-
tionWarning: Wrong selection of refrigerant may
cause damage to the system.
Refrigerant factor K1 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor K2 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor K3 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor A1 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor A2 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Refrigerant factor A3 Refrigerant factor for a custom refrigerant - please
contact Danfoss for detailed information
Pe Min range Minimum measuring range for sensor
Pe Max range Maximum measuring range for sensor
Temperature sensor Sensor type for S3, S4 and S5. Normally a Pt 1000 sen-
type sor with great signal accuracy is used. But you can al-
so use a sensor with another signal accuracy. That
could e.g. be a PTC sensor (1000 ohm at 25°C) All the
mounted sensors S3-S5 must be of the same type. 0 =
Pt 10001 = PTC 10002 = NTC 5k3 = NTC 10k
Food type When changing the food type the controller will auto-
matically adapt temperature setpoints and alarm lim-
its according to the selected food type. Please be
aware that the setting will revert to "None" after hav-
ing been changed.
Food temp. sensor Select the temperature to be used for the food tem-
perature representation
Defrost method Select method of defrost
Defrost stop method Here you define whether a defrost cycle is to be stop-
ped by time or by a temperature sensor
Defrost stop limit A When the selected defrost stop sensor reaches the set
limit, the defrost cycle is terminated
Network address Network address of the controller
Service pin If the controller is built into a LonWorks network with
data communication, it must have an address, and
the system manager must know this address.The
address is sent to the system manager when the
menu is set in pos. ON.
 IMPORTANT:
Before you set o04, you MUST set the application
mode of the controller (The function is not used
when the data communication is MODBUS)
© Danfoss | Climate Solutions | 2021.02
Values
0=None, 1=DI status, 2=Door function, 3=Door alarm,
4=Defrost start, 5=Main switch, 6=Night setback,
7=Thermostat band, 8=Alarm at closed, 9=Alarm at
open, 10=Case cleaning, 11=Forced cooling,
12=Open blinds, 13=Coordinated defrost, 14=Forced
closing, 15=Shutdown, 16=Light control, 20=Leak de-
tection, 21=Adaptive liquid control, 22=Valve driver,
23=Fan alarm
0=Not seleted, 6=R13, 7=R13b1, 2=R22, 8=R23,
14=R32, 11=R114, 3=R134a, 12=R142b, 24=R170,
15=R227, 25=R290, 16=R401A, 18=R402A, 19=R404A,
21=R407A, 22=R407B, 20=R407C, 37=R407F,
49=R407H, 23=R410A, 32=R413A, 30=R417A,
31=R422A, 33=R422D, 34=R427A, 35=R438A,
40=R448A, 41=R449A, 48=R449B, 43=R450A,
44=R452B, 45=R454B, 9=R500, 4=R502, 10=R503,
17=R507, 36=R513A, 26=R600, 27=R600a, 5=R717,
28=R744, 46=R1233zdE, 38=R1234ze, 39=R1234yf,
47=R1234zeZ, 29=R1270, 42=R452A, 1=User defined
display, 13=User defined
0=Pt 1000, 1=PTC 1000, 2=NTC 5k, 3=NTC 10k
0=None, 1=Vegetables, 2=Dairy, 3=Meat and fish,
4=Frozen food, 5=Ice cream
1=Thermostat air, 2=Alarm air, 3=S3 Air ON evap.,
4=S6 Product temp.
0=None, 1=Electrical, 2=Hot gas, 4=Air/Offcycle
0=Time, 1=S5 sensor, 2=S4 sensor, 3=S5A and S5B
0=OFF, 1=ON
Code Short name
o84 o84 DI3 Config
o30 o30 Refrigerant
P83 P83 RfgFac.K1
P84 P84 RfgFac.K2
P85 P85 RfgFac.K3
x65 --- Rfg.Fac.A1
x66 --- Rfg.Fac.A2
x67 --- Rfg.Fac.A3
o20 o20 MinTransPres
o21 o21 MaxTransPres
o06 o06 SensorConfig
r89 r89 Food type
q39 q39 Food sensor
d01 d01 Def. method
d10 d10 DefStopSens.
d02 d02 Def.StopTemp
o03 o03 Unit addr.
o04 o04 Service pin
