AK-CC55 Water Loop

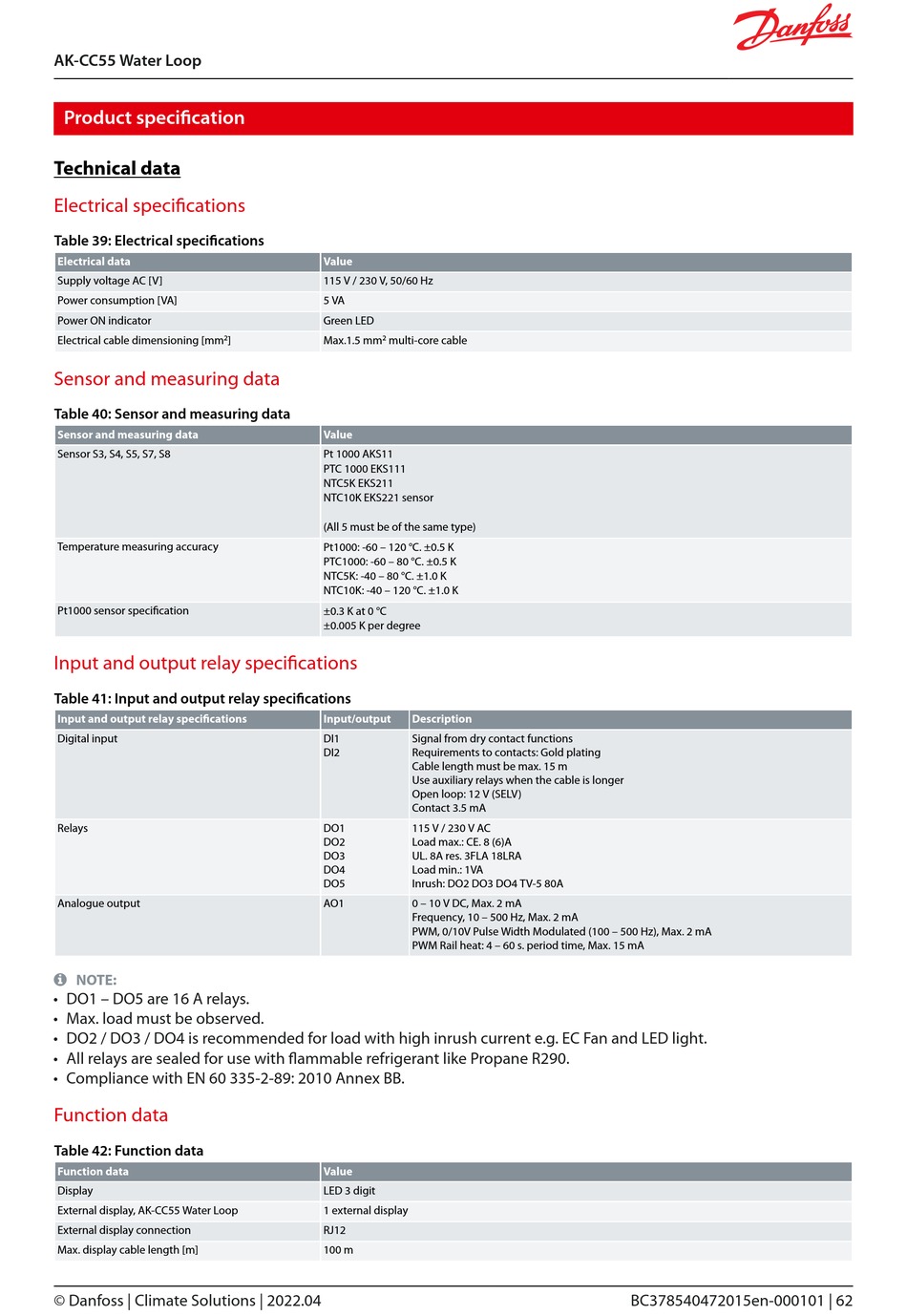

Product specification

Technical data

Electrical specifications

Table 39: Electrical specifications
Electrical data
Supply voltage AC [V]
Power consumption [VA]
Power ON indicator
Electrical cable dimensioning [mm 2

Sensor and measuring data

Table 40: Sensor and measuring data
Sensor and measuring data
Sensor S3, S4, S5, S7, S8
Temperature measuring accuracy
Pt1000 sensor specification

Input and output relay specifications

Table 41: Input and output relay specifications
Input and output relay specifications
Digital input
Relays
Analogue output
 NOTE:
• DO1 – DO5 are 16 A relays.
• Max. load must be observed.
• DO2 / DO3 / DO4 is recommended for load with high inrush current e.g. EC Fan and LED light.
• All relays are sealed for use with flammable refrigerant like Propane R290.
• Compliance with EN 60 335-2-89: 2010 Annex BB.

Function data

Table 42: Function data
Function data
Display
External display, AK-CC55 Water Loop
External display connection
Max. display cable length [m]
© Danfoss | Climate Solutions | 2022.04
Value
115 V / 230 V, 50/60 Hz
5 VA
Green LED
] Max.1.5 mm 2 multi-core cable
Value
Pt 1000 AKS11
PTC 1000 EKS111
NTC5K EKS211
NTC10K EKS221 sensor
(All 5 must be of the same type)
Pt1000: -60 – 120 °C. ±0.5 K
PTC1000: -60 – 80 °C. ±0.5 K
NTC5K: -40 – 80 °C. ±1.0 K
NTC10K: -40 – 120 °C. ±1.0 K
±0.3 K at 0 °C
±0.005 K per degree
Input/output
DI1
DI2
DO1
DO2
DO3
DO4
DO5
AO1
Value
LED 3 digit
1 external display
RJ12
100 m
Description
Signal from dry contact functions
Requirements to contacts: Gold plating
Cable length must be max. 15 m
Use auxiliary relays when the cable is longer
Open loop: 12 V (SELV)
Contact 3.5 mA
115 V / 230 V AC
Load max.: CE. 8 (6)A
UL. 8A res. 3FLA 18LRA
Load min.: 1VA
Inrush: DO2 DO3 DO4 TV-5 80A
0 – 10 V DC, Max. 2 mA
Frequency, 10 – 500 Hz, Max. 2 mA
PWM, 0/10V Pulse Width Modulated (100 – 500 Hz), Max. 2 mA
PWM Rail heat: 4 – 60 s. period time, Max. 15 mA
BC378540472015en-000101 | 62
