Network Settings - Extron electronics PVS 407D User Manual

2. After the Date, Time, and Timezone update, a pop-up notification indicates that
the synchronization was successful.
To set the information manually:
1. Click EDIT on the Device Status panel.
The Device Status Settings dialog box (see figure 29) opens allowing you to
2.
change Time, Date, and Timezone. Click SAVE when done.
A pop-up notification indicates the update has been successful.
Click CANCEL at any time to exit the process without making any changes.

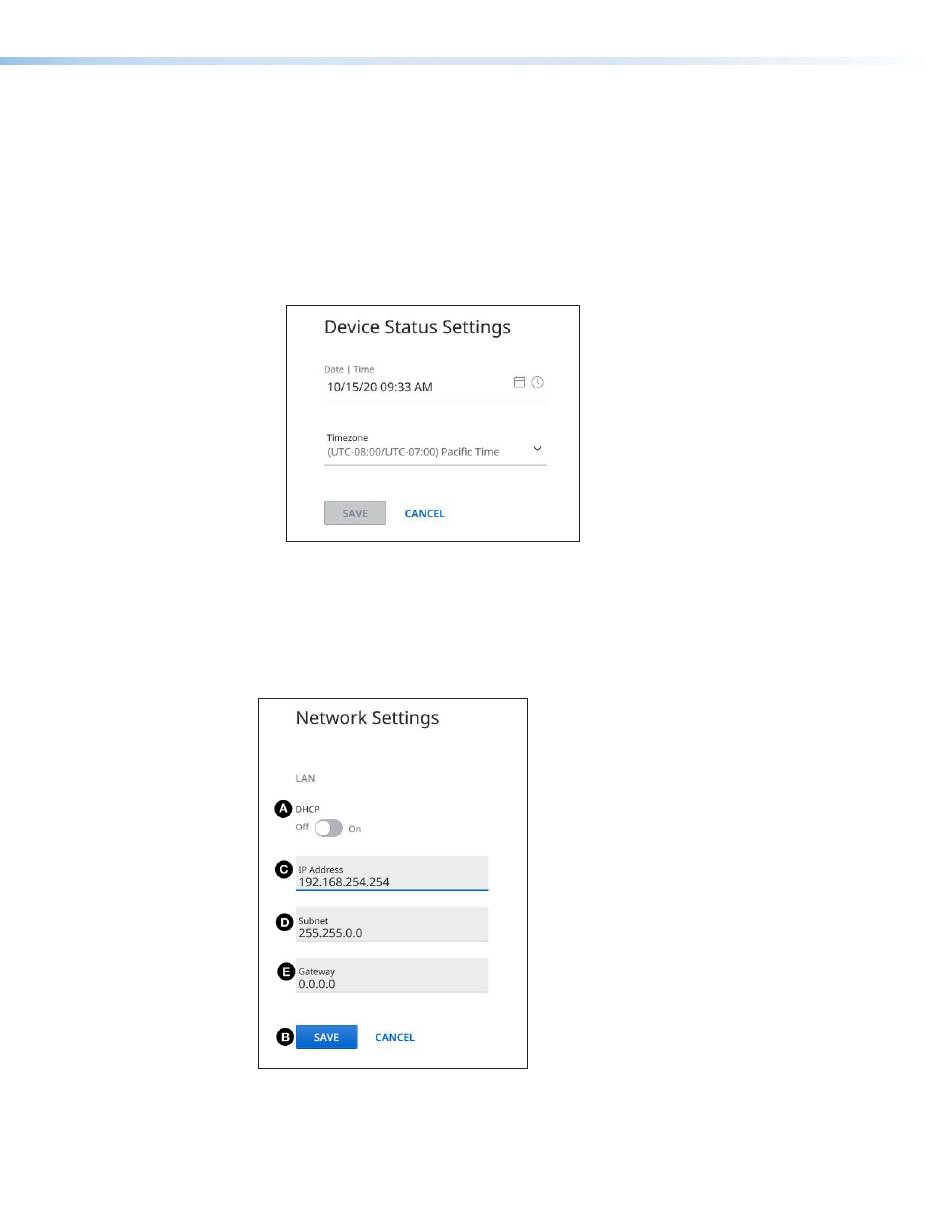

Figure 29.

Network Settings

The Network Settings panel (see
settings for the PVS 407D. To change the TCP/IP settings, click EDIT to access the
Network Settings dialog box (see figure 30).
Figure 30.
Device Status Settings Dialog Box
figure 27
Network Settings Dialog Box
on page 47) shows the current network
PVS 407D • Using the Internal Web Page 49
