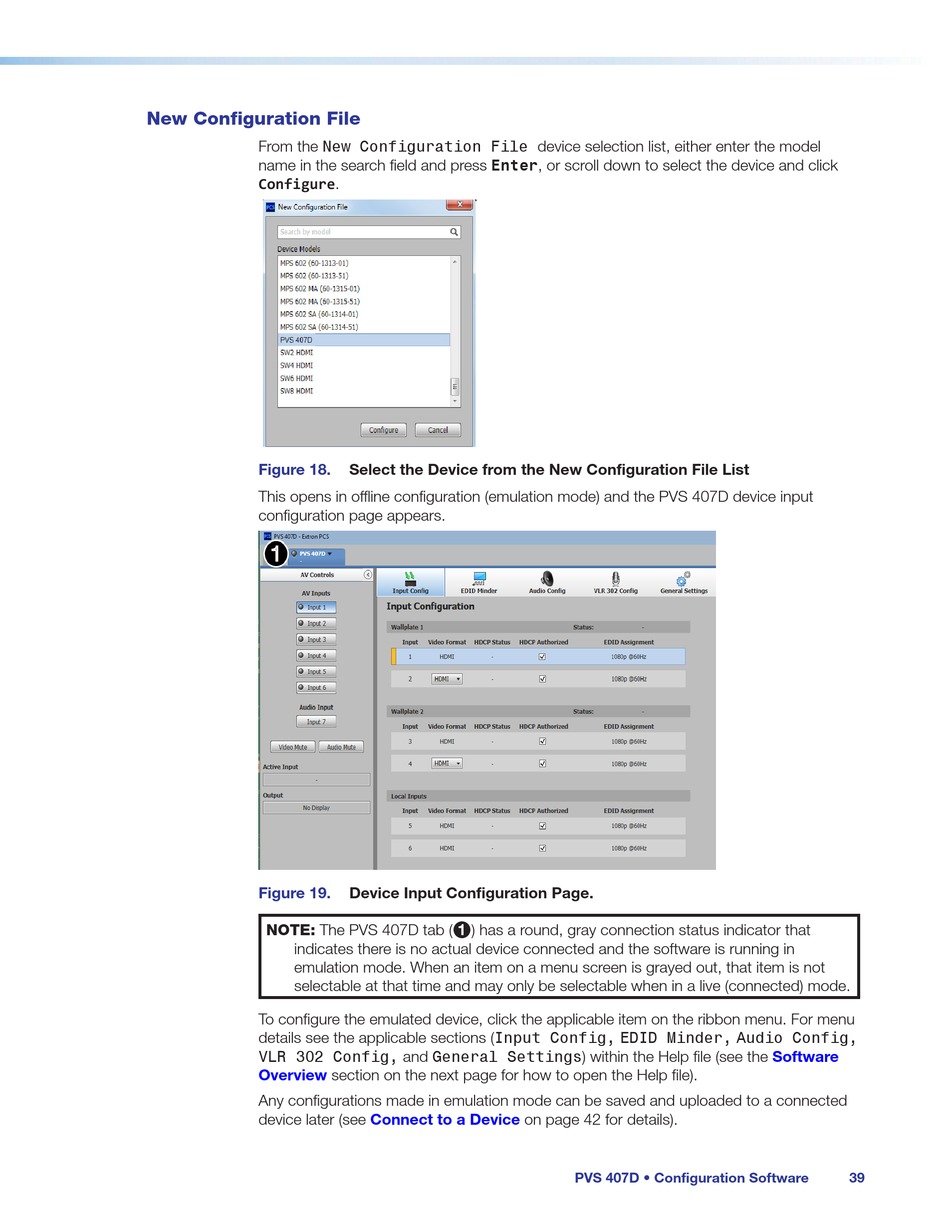

New Configuration File

From the New Configuration File device selection list, either enter the model

name in the search field and press Enter, or scroll down to select the device and click

Configure.

Figure 18.

This opens in offline configuration (emulation mode) and the PVS 407D device input

configuration page appears.

Figure 19.

NOTE: The PVS 407D tab (

indicates there is no actual device connected and the software is running in

emulation mode. When an item on a menu screen is grayed out, that item is not

selectable at that time and may only be selectable when in a live (connected) mode.

To configure the emulated device, click the applicable item on the ribbon menu. For menu

details see the applicable sections (Input Config, EDID Minder, Audio Config,

VLR 302 Config, and General Settings) within the Help file (see the

Overview

Any configurations made in emulation mode can be saved and uploaded to a connected

device later (see

Select the Device from the New Configuration File List

Device Input Configuration Page.

) has a round, gray connection status indicator that

section on the next page for how to open the Help file).

Connect to a Device

on page 42 for details).

PVS 407D • Configuration Software
