Terminating the Speaker Cable
To terminate the cable, strip the end of the cable 0.2 inch (5 mm) and secure the wires
into the supplied 4-pole captive screw connector as shown in figure 43.

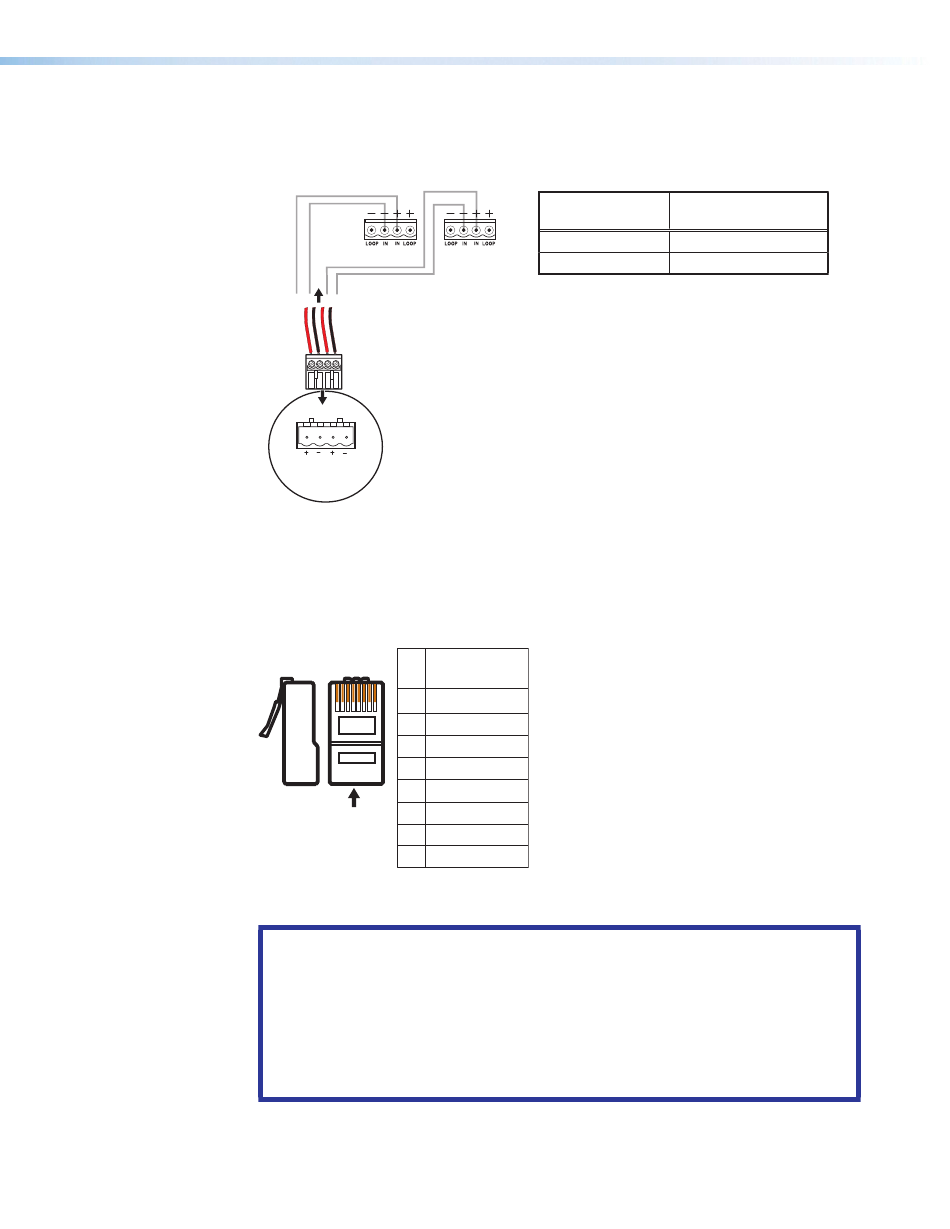

Figure 43.
TP Cable Termination and Recommendations
Figure 44 details the recommended termination of both ends of TP cables with RJ-45
connectors in accordance with the TIA/EIA T568B wiring standard.
Figure 44.
ATTENTION:
Speaker 1
Speaker 2
Audio output
to speakers
4-pole Captive
Screw Connector
AMPLIFIED OUTPUTS
4/8
Ohms
L
R
PVS Switcher
Rear Panel
Wiring the Audio Output Connector
Pins:
568A
12345 6 78
Pin
Wire Color
1
White-green
2
Green
3
White-orange
4
Blue
5
White-blue
Side View
6
Orange
Insert Twisted
Pair Wires
7
White-brown
RJ-45 Connector
8
Brown
TP Cable Termination
•
The PoleVault signal transmission method is specific for PVS 407D switchers
working with PVT digital wallplates. DO NOT connect the input ports to an MTP
system or to an Ethernet/LAN or data transmission system.
•
La méthode de transmission du signal PoleVault est spécifique pour les
sélecteurs PVS 407D qui fonctionnent avec les plaques murales PVT
numériques. Ne PAS connecter les ports d'entrée à un système MTP ou à un
système Ethernet/LAN ou de transmission de données.
Speaker Wire
To PVS 407D Terminal
Color
(Left and Right)
Red
Positive (+)
Black
Negative (-)
PVS 407D • Connector Wiring
