Extron electronics PVS 407D User Manual page 60

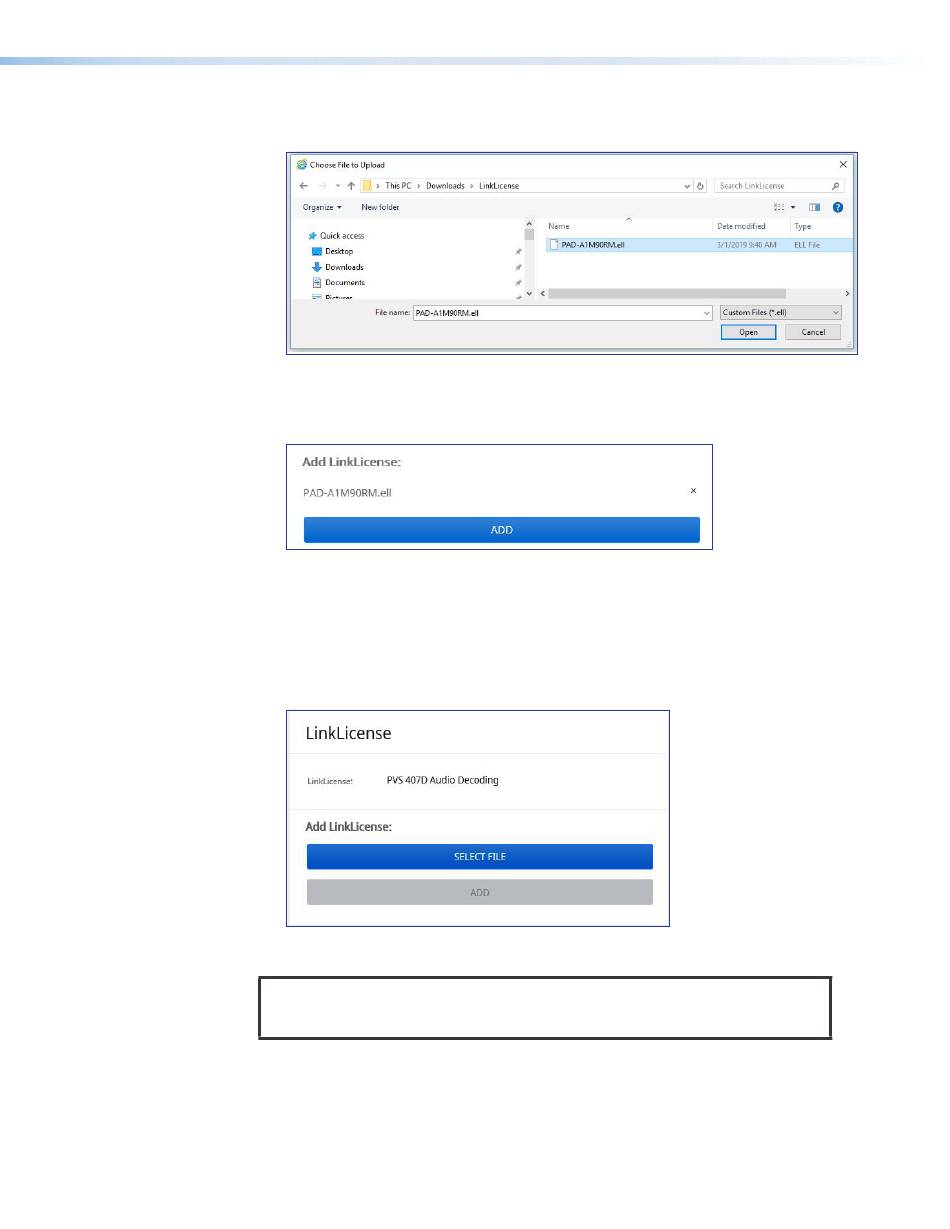

2. This opens an Explorer window (see figure 36). Browse to the location of the
LinkLicense and select the LinkLicense file with .ell file extensions.
Figure 36. Explorer Window
3. Click Open. The window closes and the LinkLicense dialog box reopens showing
the LinkLicense file in the file name field (see figure 37).
Figure 37. Add LinkLicense Button
To cancel this procedure, click the x at the right of the file name.
4. Click ADD. The LinkLicense is uploaded and automatically installs to the connected
PVS 407D. The switcher automatically performs a system reboot when complete to
apply the LinkLicense. When the license is properly installed, your LinkLicense panel
looks like figure 38.
Figure 38. LinkLicense Uploaded
NOTE: If a failure message appears, verify that the serial number of the PVS 407D
product matches the one found in the LinkLicense file name. For assistance with
LinkLicense activation, please contact your Extron Support Representative.
PVS 407D • Using the Internal Web Page 54
