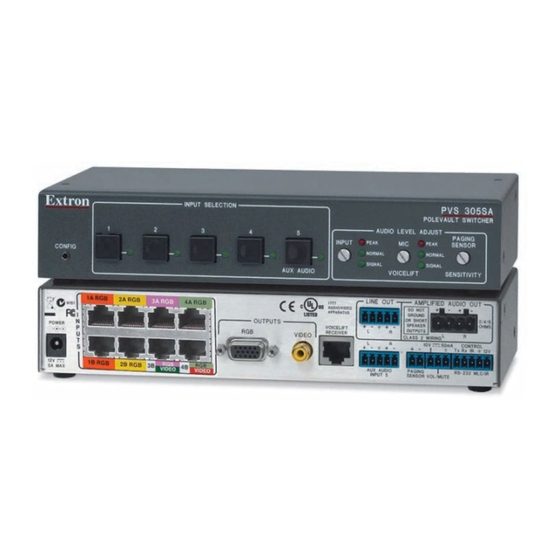

Extron electronics PoleVault PVS 305SA User Manual

Hide thumbs Also See for PoleVault PVS 305SA:
Table of Contents

Advertisement

Quick Links

Download this manual
PVS 305SA
PoleVault
Switcher
®
68-1576-01
Rev. A
02 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PoleVault PVS 305SA and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics PoleVault PVS 305SA

Summary of Contents for Extron electronics PoleVault PVS 305SA

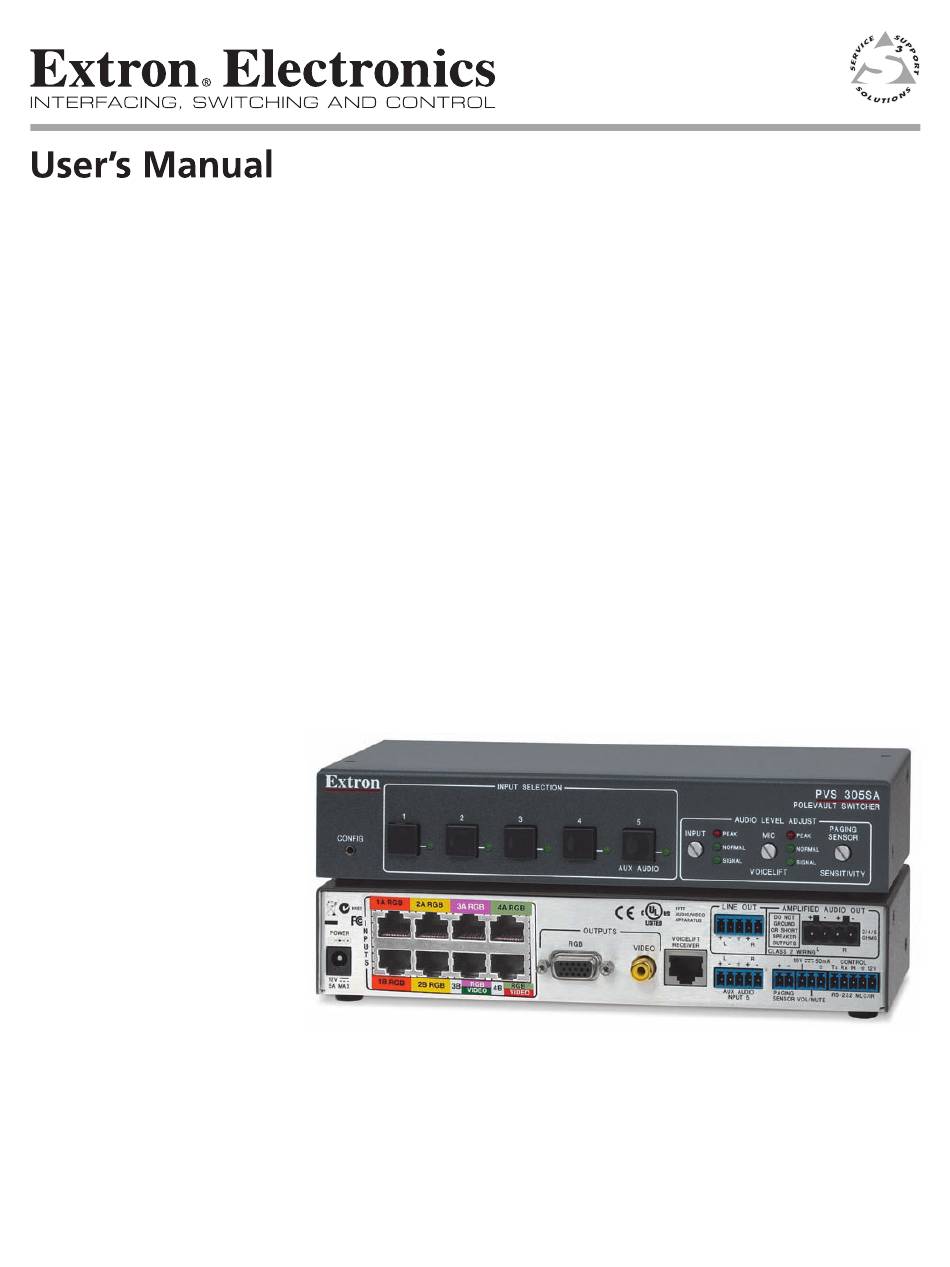

  • Page 1 PVS 305SA PoleVault Switcher ® 68-1576-01 Rev. A 02 10...
  • Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class B Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Table of Contents Chapter One • Introduction ....................... 1-1 About this Manual ........................1-2 About the PVS 305SA ....................... 1-2 TP cable advantages ......................... 1-2 Features ............................1-3 Application Diagram ........................ 1-4 Chapter Two • Installation ......................2-1 UL/Safety Requirements ......................
  • Page 5 Table of Contents, cont’d Bass, treble, and loudness control ..................3-6 VoiceLift level adjustment ® ...................... 3-6 Paging sensitivity adjustment ....................3-6 Chapter Four • Serial Communication ................4-1 RS-232 Programmer’s Guide ....................4-2 Host-to-PVS communications ....................4-2 PVS-initiated messages ......................4-2 Error responses ........................

  • Page 6: Chapter One • Introduction

    PVS 305SA Chapter One Introduction About this Manual About the PVS 305SA Application Diagram...

  • Page 7: Tp Cable Advantages

    Introduction About this Manual This manual covers the installation, operation, and configuration of the Extron PVS 305SA PoleVault ® Switcher. Throughout the manual, this switcher is interchangeably referred to as the PVS 305SA or PoleVault switcher. About the PVS 305SA The Extron PVS 305SA is a five input, two output, twisted pair, audio and video switcher with a built-in audio amplifier.

  • Page 8: Features

    Features Twisted pair inputs — The PoleVault switcher accepts two independent, high resolution RGB video and audio signals, and two configurable inputs for either composite video or high resolution RGB signals, and audio signals, transmitted on twisted pair cable from a source up to 100 ft away. Video output —...

  • Page 9: Application Diagram

    Introduction, cont’d Application Diagram Extron FF 120 Flat Field Extron Priority Extron Ceiling Speakers Page Sensor SPK 18 - 35' - 1 Pair (Optional Accessory) Cable From PA System UTP Cable (CAT 5/5E/6) PoleVault Switcher Ceiling Mounted Paging Speaker Extron Extron PCM 340 VoiceLift...

  • Page 10: Chapter Two • Installation

    PVS 305SA PVS 305SA Chapter Two Installation UL/Safety Requirements Mounting the Switcher Rear Panel Features and Cabling Speaker Configuration Labeling the A/V Inputs Final Setup...

  • Page 11: Ul/Safety Requirements

    Installation UL/Safety Requirements The Underwriters Laboratories (UL) requirements listed below pertain to the safe installation and operation of this switcher. Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth.

  • Page 12: Mounting The Switcher

    Mounting the Switcher The PVS 305SA switcher and the power supply can be mounted in the Extron PMK 550 (Pole Mount Kit) that is installed above the projector. The low profile of the PMK 550 allows it to be installed in tight spaces. N There are two models of the PMK 550 and each mounts the PoleVault switcher differently; one directly to the plate, the other using mounting brackets.

  • Page 13: Mounting Onto The Plate Using Brackets

    Installation Mounting onto the plate using brackets. N This method allows mounting and removal of the PoleVault switcher without removing the PMK 550 from the pole. Remove the cover securing screws and slide the two plastic covers away from the mounting plate. Install both brackets into the slot (see figure 2-3). Mounting Brackets (2) 4-40 x 3/16" Screws T IO Rotate to...

  • Page 14: Wall Mounting The Polevault Switcher

    Wall mounting the PoleVault switcher Using the Extron WMK 100 Wall Mounting Kit, the PoleVault switcher can be mounted on a wall near a flat screen display or short throw projector. Following the instructions supplied with the WMK 100, prepare the wall and temporarily mount the base plate on the wall at the desired location.

  • Page 15: Rear Panel Features And Cabling

    Installation Rear Panel Features and Cabling PVT RGB D Lineout PVT RGB D Plus Inputs VoiceLift Speaker Output (1-4, A and B) Receiver Port Output N15779 AMPLIFIED AUDIO OUT LINE OUT 1A RGB 2A RGB 3A RGB 4A RGB 1A RGB 2A RGB 3A RGB 4A RGB...
  • Page 16 When connecting the TP cables to the PVS 305SA, take care not to cross-connect the cables; connect input cable 1A to the RJ-45 port labeled 1A, and input cable 1B to the RJ-45 port labeled 1B. Likewise, connect input cables 2A, 3A, or 4A to its corresponding numbered A port, and cable B to its B port (see figure 2-7).

  • Page 17: A/V Output Connections

    Installation, cont’d A/V output connections RGB video output — Connect a VGA cable to this female 15-pin HD connector and to the projector RGB input. Composite (video) output — Connect an RCA cable to this female RCA jack and to the projector composite input. VoiceLift connection (optional) VoiceLift receiver connector —...

  • Page 18: Switcher Control

    Switcher control Control port — The PVS switcher can be controlled via an RS -232 connection directly from a host computer, a control system, or a MediaLink Controller. For IR remote control connect an Extron IR Link to this port. RS-232 connection can be used to configure the PVS switcher.
  • Page 19 Installation, cont’d N15779 AMPLIFIED AUDIO OUT LINE OUT 1A RGB 2A RGB 3A RGB 4A RGB CONTROL 17TT DO NOT AUDIO/VIDEO GROUND ® APPARATUS OR SHORT 2/4/8 LISTED SPEAKER Ohms Tx Rx IR VOICELIFT OUTPUTS OUTPUTS POWER RECEIVER CLASS 2 WIRING VIDEO PVS 305SA 50mA...

  • Page 20: Speaker Output

    Speaker output AMPLIFIED OUTPUTS Amplified audio out — Connect one speaker to each 2/4/8 Ohms channel marked “L” and “R” (left and right) using the supplied black 4-pin 5 mm connector. Wire the red cable to positive and the black cable to negative. Each channel is rated for 25 W at 2, 4, or 8 ohm loads.

  • Page 21: Labeling The A/V Inputs

    Installation, cont’d Labeling the A/V Inputs Labeling and connecting the A/V input cables The RGB and composite video input ports on the rear of the PVS 305SA are color coded to aid easy identification of the input signal type. A sheet of corresponding colored labels is supplied for the installer to label the cables running from the PVT Wallplates to the switcher.

  • Page 22: Labeling The Pvt Decora Face Plates

    Labeling the PVT Decora face plates To help identify the input number and type of signal that any PVT Decora wallplate sends to the PVS switcher RGB IN #1 when the wallplate is installed, a series of small labels are supplied. A label identifying the transmitted signal type should be affixed to each Decora face plate (top or bottom) where it can easily be seen after installation.

  • Page 23: Front Panel Features And Operation

    PVS 305SA Chapter Three Operation and Setup Front Panel Features and Operation Setting Switcher Modes Auto Switching Setting Up and Optimizing the Audio Resetting the Switcher Executive Mode (Front Panel Security Lockout)...
  • Page 24 Operation and Setup Front Panel Features and Operation PVS 305SA INPUT SELECTION POLEVAULT SWITCHER AUDIO LEVEL ADJUST PAGING INPUT PEAK PEAK SENSOR NORMAL NORMAL CONFIG SIGNAL SIGNAL VOICELIFT SENSITIVITY AUX AUDIO Figure 3-1 — Front panel features Configuration port — This 2.5 mm port (jack) can be used to configure the PVS 305SA during setup via RS-232.

  • Page 25: Front Panel Operation

    Front panel operation See the front panel image (figure 3-1) for the location of input buttons, adjustment knobs, LEDs, and configuration por • To change inputs, select an input button, 1 through 4 (video and audio), or 5 (audio only). • To adjust audio input levels, rotate the Input adjustment knob through 43 positions in 1 dB steps (-18 to +24 dB, default 0). •...

  • Page 26: Executive Mode (Front Panel Security Lockout)

    Operation and Setup, cont’d Executive Mode (Front Panel Security Lockout) To prevent accidental or unauthorized changes to settings, the PVS switcher has a front panel security lockout (executive mode) that limits users’ access to front panel controls. When the executive mode is active, all functions are locked. To turn executive mode on or off via the front panel: Press and hold input selection buttons 1 and 4 simultaneously for 4 seconds (see figure 3-2).

  • Page 27: Gain Control

    When adjustments to all five inputs’ sensitivity settings have been made, then adjust the amplifier level (via RS-232 only). Increase or decrease the amplifier level very slowly, if needed. N If the volume is at 100% through the MLC and the output on the speakers is too loud, reducing the amp level via RS-232 control software is recommended. This ensures that the volume will not be too loud, even when set at 100%. Fine tune the audio by making adjustments to the bass, treble, and loudness until the desired settings are reached.

  • Page 28: Amplifier Level Control

    Operation and Setup, cont’d Amplifier level control Amplifier level control is adjusted via RS-232 or control software only. See chapter 4, “Serial Communication”, for details on RS-232 control. Bass, treble, and loudness control For optimum audio quality, the audio input levels and the bass, treble, and loudness controls must all be set up properly.

  • Page 29: Rs-232 Programmer's Guide

    PVS 305SA Chapter Four Serial Communication RS-232 Programmer’s Guide Updating Firmware...

  • Page 30: Host-To-Pvs Communications

    PVS responds by sending a message to the host. No response is required from the host. The PVS-initiated messages are listed here (underlined). © Copyright 2009, Extron Electronics, PVS 305SA, V1.xx The PVS sends the copyright message when it first powers on. V1.xx is the firmware version number.

  • Page 31: Error Responses

    Error responses When the PVS switcher receives a valid SIS command, it executes the command and sends a response to the host device. If the PVS is unable to execute the command because the command is invalid or it contains invalid parameters, it returns an error response to the host.
  • Page 32 Serial Communication, cont’d = Status, 0 = off/disable (default) 1 = on/enable = Signal detection threshold 0 = off (signal level too low to detect) 1 = on (a signal of a least -20 dBv [-18 dBu] is present) = Normal range 0 = off (input level is too low) 1 = on (input is in the right range) = Peak level...

  • Page 33: Factory Defaults

    = Video type (inputs 3 and 4 only) 1 = Composite video (default) 2 = RGB = Video signal status 0 = Video signal not detected 1 = Video signal present = 0 to 15, mic talk-over threshold level range, default 6 = 0 to 30, program ducking level in talk over mode, default = 15 X2&...

  • Page 34: Command/Response Table For Sis Commands

    Serial Communication, cont’d Command/response table for SIS commands Command ASCII command Response Additional description (host to processor) (processor to host) Input selection Select an input (video and Select video and audio from audio) input Select video and audio from Example: input 2 Select an audio input Select audio from input...
  • Page 35 Command ASCII command Response Additional description (host to processor) (processor to host) Set a specific input’s Set a specific input’s • Aud attenuation (-dB) attenuation. Increment a specific input’s Increase input attenuation. • Aud attenuation Decrement a specific input’s Decrease input attenuation. •...

  • Page 36: Command/Response Table For Sis Commands (Continued)

    Serial Communication, cont’d Command/response table for SIS commands (continued) Command ASCII command Response Additional description (host to processor) (processor to host) Information request X2!] Query firmware version X2)] Query firmware and build # Request part # N60-986-01 Request general information I (or 0I) •...
  • Page 37 Command/response table for special function SIS commands The syntax for setting a special function is __ * #, where __ is the function number and is the value. To view a function’s setting, use __#, where __ is the function number. In the following table the values of the variable are different for each command/function.

  • Page 38: Updating Firmware

    Panel Features and Operation” section, for details. On the PC, select Start > All Programs > Extron Electronics > Firmware Loader (folder)> Firmware Loader and start the program. Select the Comm port and Baud rate. Click OK. The PVS 305SA should be detected automatically.
  • Page 39 When the Firmware Loader window opens, click and browse to File, Open locate and select the firmware file (must have an .s19 extension). Select the firmware file and click Open to open the file. The filename appears in the loader window. Click Begin to upload the firmware file to the PVS 305SA.
  • Page 40 Serial Communication, cont’d Wait until the status bar indicates completion. The note “Completed” is shown and the unit resets itself. Click File > Exit (or the cross in top right corner) to exit the program. 4-12 PVS 305SA • Serial Communication...

  • Page 41: Configuring The Switcher

    PVS 305SA Chapter Five Software Configuration Configuring the Switcher...

  • Page 42: Installing The Medialink Switcher Configuration Program

    Software Configuration Configuring the Switcher The PVS 305SA PoleVault Switcher can be configured using an Extron software program, either the MLS Switcher Configuration Program or the Global Configurator. These can be installed from the supplied Extron DVD, or downloaded from the Extron Web site (www.extron.com). Installing the MediaLink Switcher Configuration program From the DVD Insert the DVD in the appropriate drive of the PC or laptop that is connected...

  • Page 43: Installing The Global Configurator

    Software Configuration, cont’d Complete the on-screen form and download the .exe file to the PC. Launch the .exe installation wizard. Follow the on-screen prompts and install the software on the PC. This also installs a desktop icon (see image at right). With the switcher connected to the PC, either through an RS-232 or LAN connection via the MediaLink Controller, click on the desktop icon to launch the MLS Configuration Utility.
  • Page 44 Follow any on-screen instructions, which vary depending on the start option selected. N After selecting any of the above options, and at any time the Global Configurator is running, press F1 or click on Help > Contents to access the Global Configurator help file and follow the step-by-step instructions to configure an attached IP device. If “Create a New Project” is selected, enter the IP address of the attached device and click OK. From the next window select the IP Link device type that is connected and click OK.
  • Page 45 Software Configuration, cont’d If “View Global Configurator Help File” is selected, a new window opens showing the Help file. Select the relevant book from the contents list and follow the instructions to use the Global Configurator. If “Import Project Configuration” is selected, either enter the IP address/name of the IP device, or select disk, and browse to the stored existing configuration file.
  • Page 46 PVS 305SA A ppendix A Reference Information Specifications Part Numbers, Cables, and Accessories...

  • Page 47: Appendix A • Reference Information

    Reference Information Specifications Video Gain ..........Unity (as a system including Extron PVT Series wallplates) Bandwidth RGB ........200 MHz (-3 dB) @ 50' (15 m) of cable Composite video ....100 MHz (-3 dB) Differential phase error ....Composite video: 0.25° at 3.58 MHz and 4.43 MHz Differential gain error ....
  • Page 48 Output level ........4.5 V to 5.5 Vp-p, unterminated Input impedance ......510 ohms Output impedance ......75 ohm Max. propagation delay ....40 ns (system only, not due to cable delay) Max. rise/fall time ......15 ns Polarity..........Positive or negative (follows input) Audio input —...
  • Page 49 Reference Information, cont’d Amplifier type ....... Class D Gain/volume adjustment .... -10 dB to +10 dB (default = 0 dB), adjustable in 1 dB steps Frequency response ...... 20 Hz to 20 kHz, -1 dB/+3.5 dB @ 1 watt output, 8 ohm load THD + Noise ........

  • Page 50: Part Numbers, Cables, And Accessories

    Part Numbers, Cables, and Accessories Included parts Replacement part Included part number PVS 305SA 60-986-01 US style IEC power cord Power supply PVS 305SA Setup Guide Cables N For signal cable requirements, please check the latest Extron catalog or visit www.extron.com for a comprehensive list. The cable listed below is for front panel RS-232 use. Accessory Part number CFG 9-pin D female to 2.5 mm TRS configuration cable 70-335-01 PVS 305SA Switcher •...
  • Page 51 PVS 305SA A ppendix B Speaker Configuration Wiring Information...

  • Page 52: Appendix B • Speaker Configuration

    Appendix B Speaker Configuration When setting up a speaker configuration, the correct speaker impedance loading must be observed. N By default, the amplifier is set for dual mono output. Use the Extron software or SIS (Extron Special Instruction Set) commands to change the setting to stereo if desired. Stereo output Dual mono output AMPLIFIED OUTPUTS AMPLIFIED OUTPUTS 8 Ohms 8 Ohms Mono + Mono + Stereo L+ Stereo R+ Mono –...

  • Page 53: Wiring Information

    Wiring Information Signal cables The PVS 305SA is capable of receiving signals from PVT wallplates located up to 100 feet (30 meters) away. The optimum distance is between 50 and 75 feet (15 and 22 meters). Minimum distance is 15 feet (4.6 meters). Pins: The RGB cables supplied with the PoleVault 12345678...
  • Page 54 Appendix B, cont’d PVS 305SA Switcher • Appendix B...
