2.

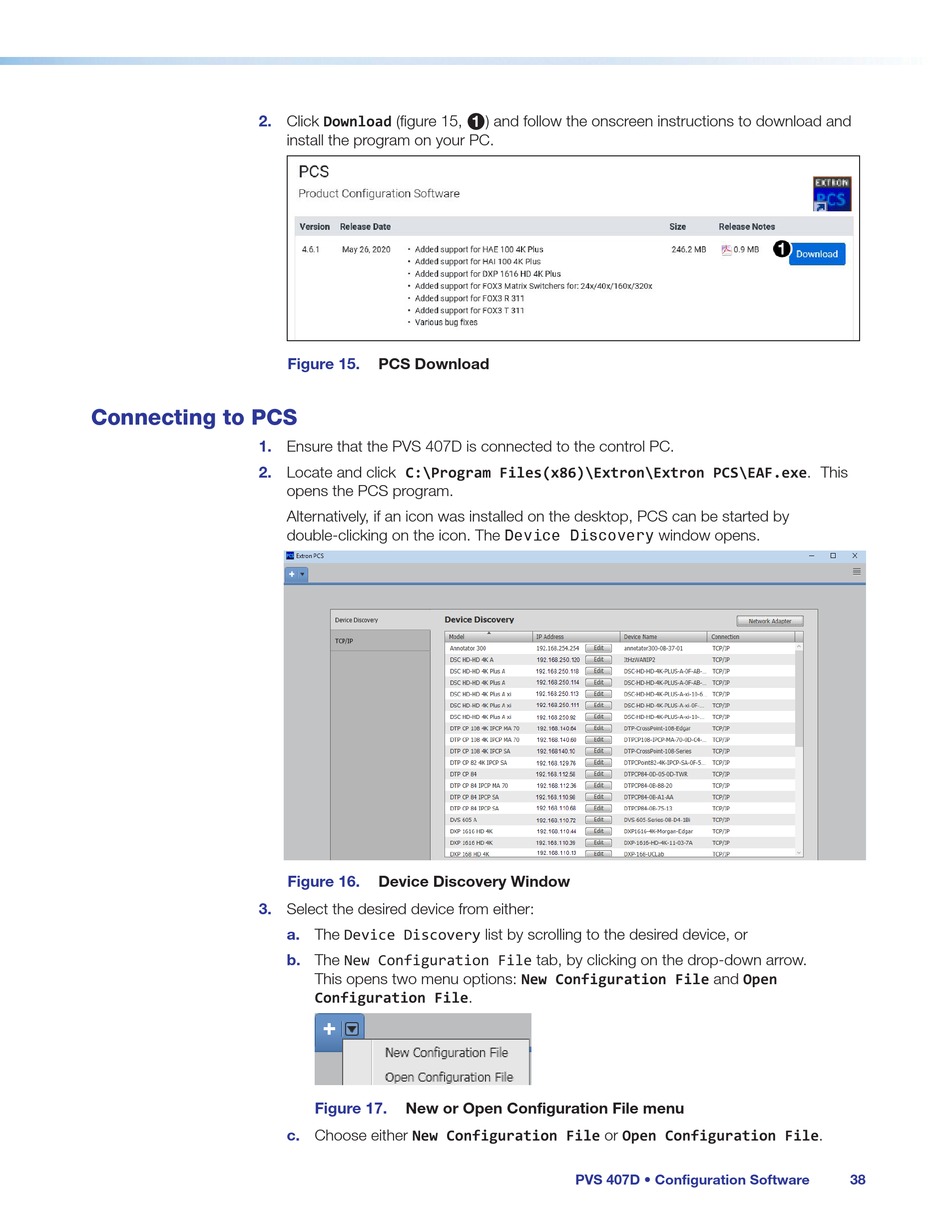

Connecting to PCS

1.
2.
3.
Click Download (figure 15,
install the program on your PC.
Figure 15. PCS Download
Ensure that the PVS 407D is connected to the control PC.
Locate and click C:\Program Files(x86)\Extron\Extron PCS\EAF.exe. This
opens the PCS program.
Alternatively, if an icon was installed on the desktop, PCS can be started by
double-clicking on the icon. The Device Discovery window opens.
Figure 16. Device Discovery Window
Select the desired device from either:
a. The Device Discovery list by scrolling to the desired device, or
The New Configuration File tab, by clicking on the drop-down arrow.
b.
This opens two menu options: New Configuration File and Open
Configuration File.
Figure 17. New or Open Configuration File menu
c. Choose either New Configuration File or Open Configuration File.
) and follow the onscreen instructions to download and
1
PVS 407D • Configuration Software 38
