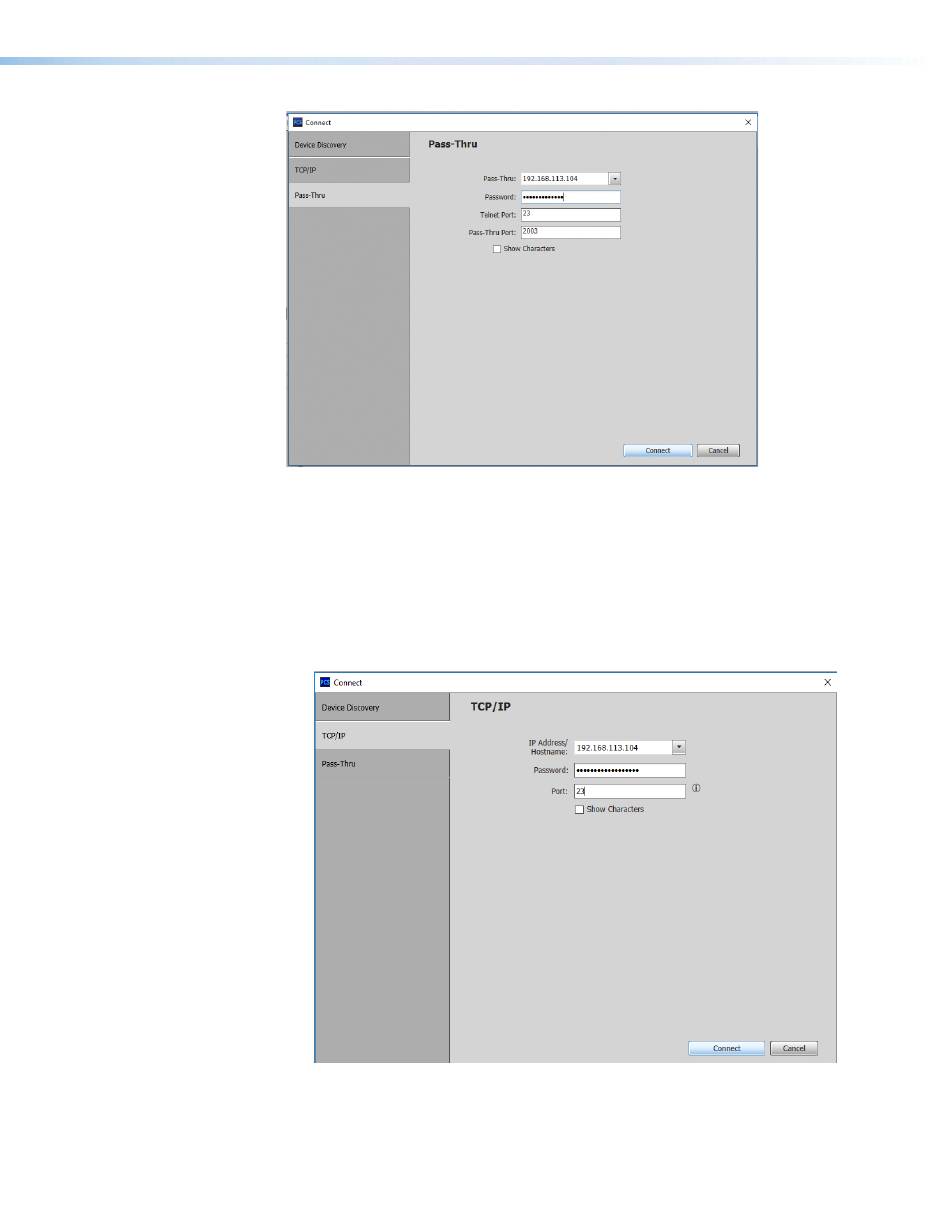

Figure 23.

Example Connection via Pass-Thru Option

•

For a device not listed but where the IP address is known:

Click the TCP/IP tab. The TCP/IP panel appears (see figure 24).

Enter the IP address of the PVS 407D.

If applicable, enter the password of the device. When checked, the Show

Characters check box allows the user to see the password letters when

typed in.

Enter the Telnet port for the device (default is 23).

Figure 24.

Example Connection Using the TCP/IP Option

For all methods, then click Connect. The Input Configuration Software window

figure 25

opens (see

on the next page).

PVS 407D • Configuration Software
