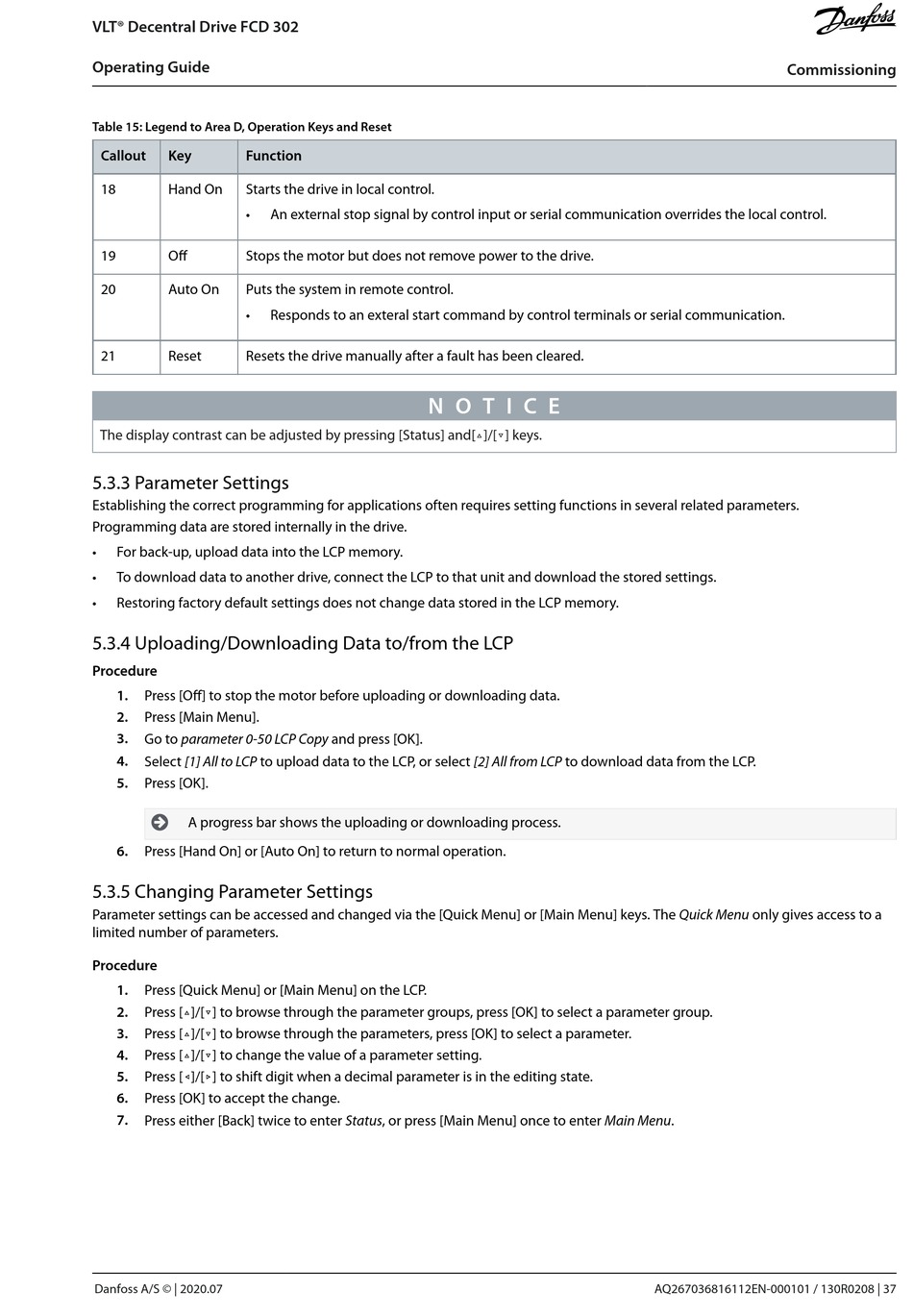

VLT® Decentral Drive FCD 302
Operating Guide
Table 15: Legend to Area D, Operation Keys and Reset
Callout Key Function
18 Hand On Starts the drive in local control.
•
19 Off Stops the motor but does not remove power to the drive.
20 Auto On Puts the system in remote control.
•
21 Reset Resets the drive manually after a fault has been cleared.
The display contrast can be adjusted by pressing [Status] and[▵]/[▿] keys.

5.3.3 Parameter Settings

Establishing the correct programming for applications often requires setting functions in several related parameters.
Programming data are stored internally in the drive.
• For back-up, upload data into the LCP memory.
• To download data to another drive, connect the LCP to that unit and download the stored settings.
• Restoring factory default settings does not change data stored in the LCP memory.

5.3.4 Uploading/Downloading Data to/from the LCP

Procedure
1. Press [Off] to stop the motor before uploading or downloading data.
2. Press [Main Menu].
3.
Go to parameter 0-50 LCP Copy and press [OK].
4.
Select [1] All to LCP to upload data to the LCP, or select [2] All from LCP to download data from the LCP.
5.
Press [OK].

A progress bar shows the uploading or downloading process.
6. Press [Hand On] or [Auto On] to return to normal operation.

5.3.5 Changing Parameter Settings

Parameter settings can be accessed and changed via the [Quick Menu] or [Main Menu] keys. The Quick Menu only gives access to a
limited number of parameters.
Procedure
1. Press [Quick Menu] or [Main Menu] on the LCP.
2.
Press [▵]/[▿] to browse through the parameter groups, press [OK] to select a parameter group.
3. Press [▵]/[▿] to browse through the parameters, press [OK] to select a parameter.
4.
Press [▵]/[▿] to change the value of a parameter setting.
5. Press [◃]/[▹] to shift digit when a decimal parameter is in the editing state.
6.
Press [OK] to accept the change.
7.
Press either [Back] twice to enter Status, or press [Main Menu] once to enter Main Menu.
Danfoss A/S © | 2020.07
An external stop signal by control input or serial communication overrides the local control.
Responds to an exteral start command by control terminals or serial communication.
N O T I C E
Commissioning
AQ267036816112EN-000101 / 130R0208 | 37
