VLT® Decentral Drive FCD 302
Operating Guide
Example

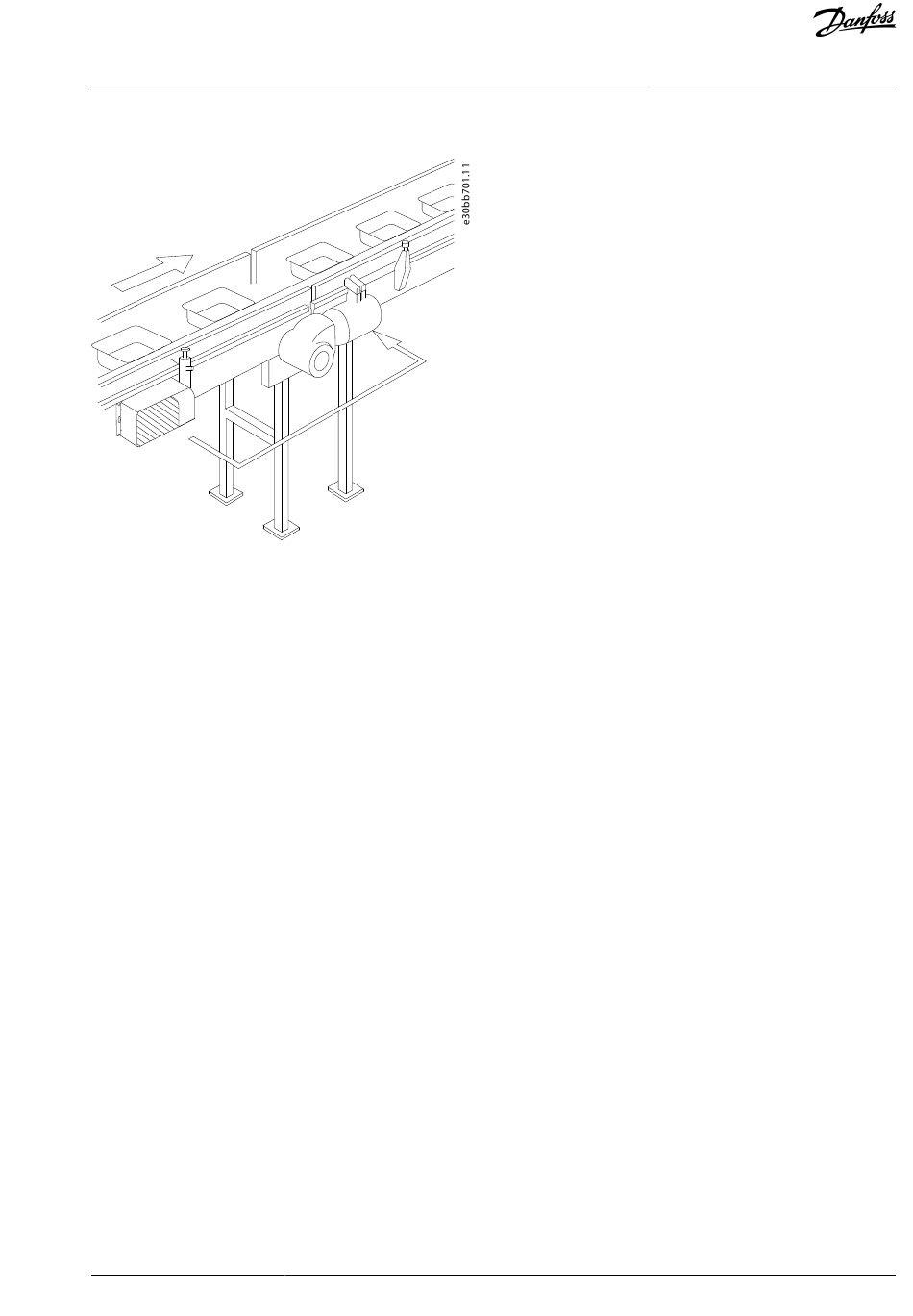

Illustration 7: FCD 302 Standalone Mounted with Mounting Brackets
3.3.3.2 Installing the Inverter Part
Procedure for compressing the gasket between the 2 parts.
Procedure
1.
Tighten the 4 connection screws to torque 2.8–3.0 Nm (24–26 in-lb).
2.
Tighten the 4 screws in diagonally opposite order.
3.
Tighten the 2 grounding spears to torque 3.0 (26 in-lb).
Danfoss A/S © | 2020.07
Mechanical Installation
AQ267036816112EN-000101 / 130R0208 | 17
